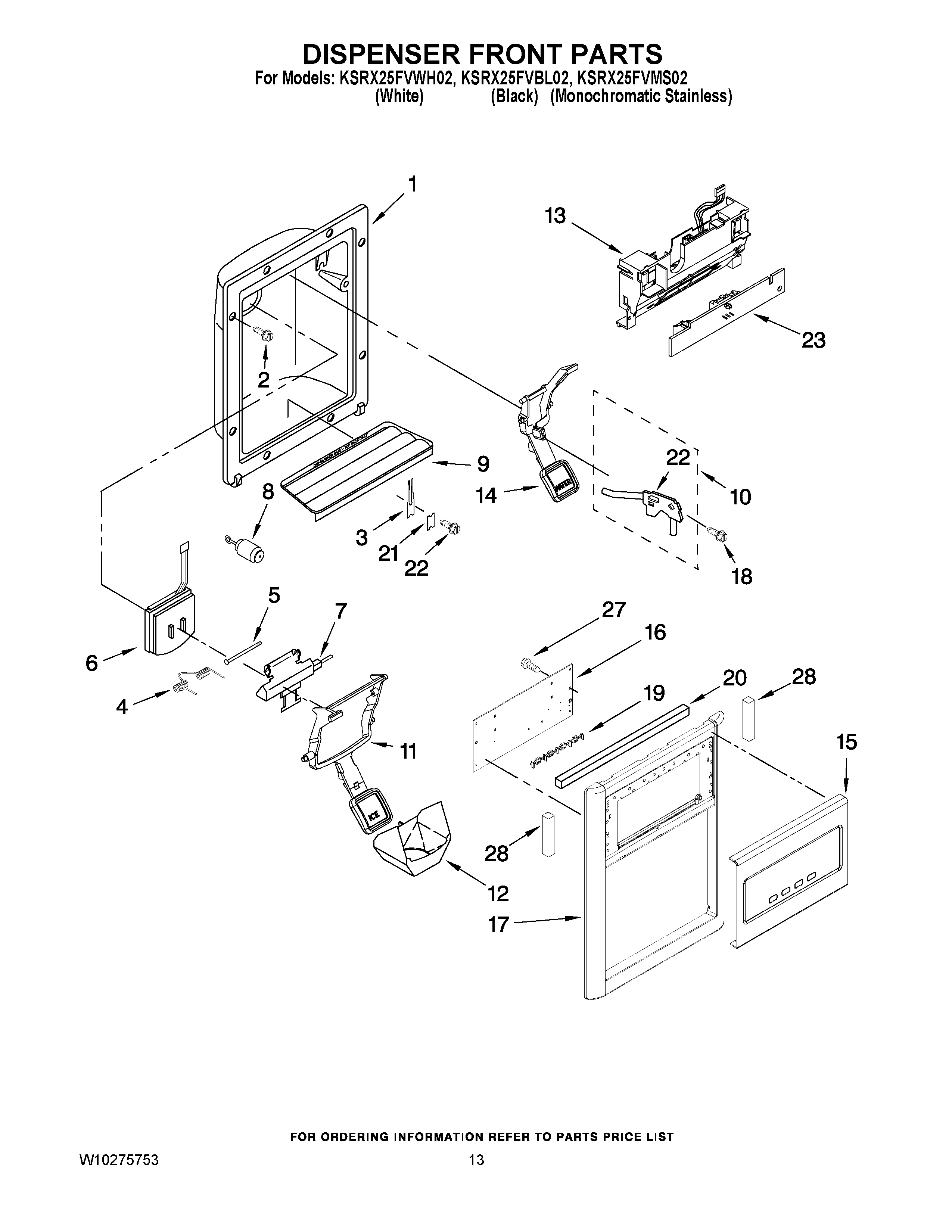

KSRX25FVMS02 08 – DISPENSER FRONT PARTS

Products

Position	Product
1	Housing Dispenser (Not Serviced)
2	WP3196557 Whirlpool Screw
3	WP2194719 Whirlpool Refrigerator Clip
4	WPW10224328 Whirlpool Refrigerator Spring
5	WP2196195 Whirlpool Refrigerator Door Pin
6	WP2180353 Whirlpool Dispenser Door
7	Door Mechanism Assembly
8	Delay Mechanism
9	WP2206670B Whirlpool Dispenser Tray
9	WP2206670W Whirlpool Dispenser Tray
10	8201537 Whirlpool Water Tubing Assembly
11	WPW10152854 Whirlpool Refrigerator Dispenser Arm
11	WPW10152853 Whirlpool Refrigerator Dispenser Arm
11	W10155161 Whirlpool Refrigerator Dispenser Arm
12	WP2180224 Whirlpool Dispenser Funnel Guide
13	W10728484 Whirlpool Refrigerator Dispenser Control Bracket
14	Lever, Water Dispenser (Apollo Grey)
14	WPW10152859 Whirlpool Refrigerator Dispenser Arm
14	WPW10152858 Whirlpool Refrigerator Dispenser Arm
15	Fascia Assy (Black)
15	Fascia Assy (Stainless)
15	Fascia Assy (White)
16	Control Board
17	Bezel, Disp (Mono Satina (SS))
17	Bezel, Disp (Black)
17	W10136850 Whirlpool Refrigerator Front Cover
18	WP3400906 Whirlpool Refrigerator Screw
19	Support, Window
20	2305571 Whirlpool Gasket Assembly
21	WP2195051 Whirlpool Refrigerator Clip
22	WP2304673 Whirlpool Refrigerator Bracket
23	LED Assy
27	2006254 Whirlpool Refrigerator Screw
28	Gasket, Disp (2)
