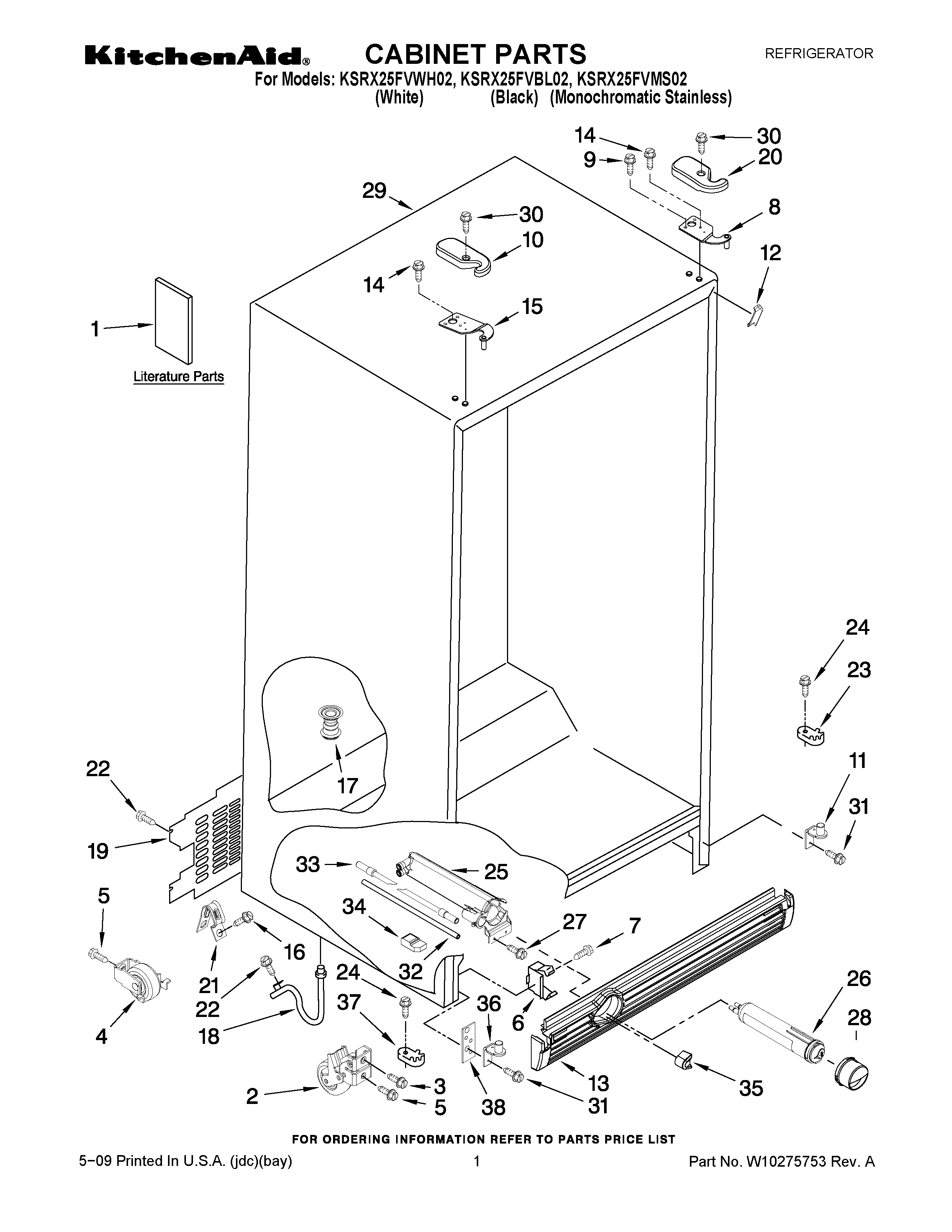

KSRX25FVWH02 01 – CABINET PARTS

Products

PositionProduct
1Use & Care Guide
1Energy Guide
1Service & Wiring Sheet
1INSTRUCTION SHEET, DOOR REMOVAL
1Modular Icemaker Service Sheet
2Front Roller (2)
3W10850698 Whirlpool Refrigerator Screw
4WPW10250570 Whirlpool Refrigerator Cabinet Roller
5WP489427 Whirlpool Refrigerator Screw
6WP2155013 Whirlpool Refrigerator Clip
7WPW10141604 Whirlpool Screw
8WP2203771 Whirlpool Refrigerator Door Hinge
9W10853301 Whirlpool Refrigerator Screw
10Hinge Cover (RC) (Apollo Grey)
10Hinge Cover (RC) (Black)
10Hinge Cover (RC) (White)
11W10138965 Whirlpool Refrigerator Door Hinge
12Filler, Wrapper (Apollo Grey)
12Filler, Wrapper (Black)
12Filler, Wrapper (White)
13WPW10184890 Whirlpool Refrigerator Grille
13WPW10184888 Whirlpool Refrigerator Grille
13WPW10311032 Whirlpool Refrigerator Grille
14WP489497 Whirlpool Screw
15WP2203770 Whirlpool Refrigerator Door Hinge
16WP489464 Whirlpool Refrigerator Screw
17W11566763 Whirlpool Fitting
18W11512417 Whirlpool Drain Connector
19WP2188755 Whirlpool Rear Panel
20Hinge Cover (FC) (White)
20Hinge Cover (FC) (Apollo Grey)
20Hinge Cover (FC) (Black)
21549193 Whirlpool Refrigerator Power Clamp
22SCREW
23WPW10329686 Whirlpool Door Cam Black
24WP489483 Whirlpool Screw
25WPW10121138 Whirlpool Refrigerator Water Filter Housing
26FILTER 3-SINGLE TEAL
27WP489500 Whirlpool Refrigerator Screw
28WP2260518MG Whirlpool Water Filter Cap
28WP2260518W Whirlpool Refrigerator Filter Cap
28WP2260518B Whirlpool Water Filter Cap
29Cabinet, (Not A Serviceable Part)
30WP8281227 Whirlpool Screw
32WPW10350006 Whirlpool Refrigerator Water Tube
338201597 Whirlpool Inlet Water Fill Tube Kit Filter
34Block, Housing Support
352260503MG Whirlpool Refrigerator Button
352260503W Whirlpool Refrigerator Button
35WP2260503B Whirlpool Refrigerator Button
362303141 Whirlpool Refrigerator Door Hinge
37WP2223751 Whirlpool Refrigerator Door Cam
38WP2181911 Whirlpool Refrigerator Shim
