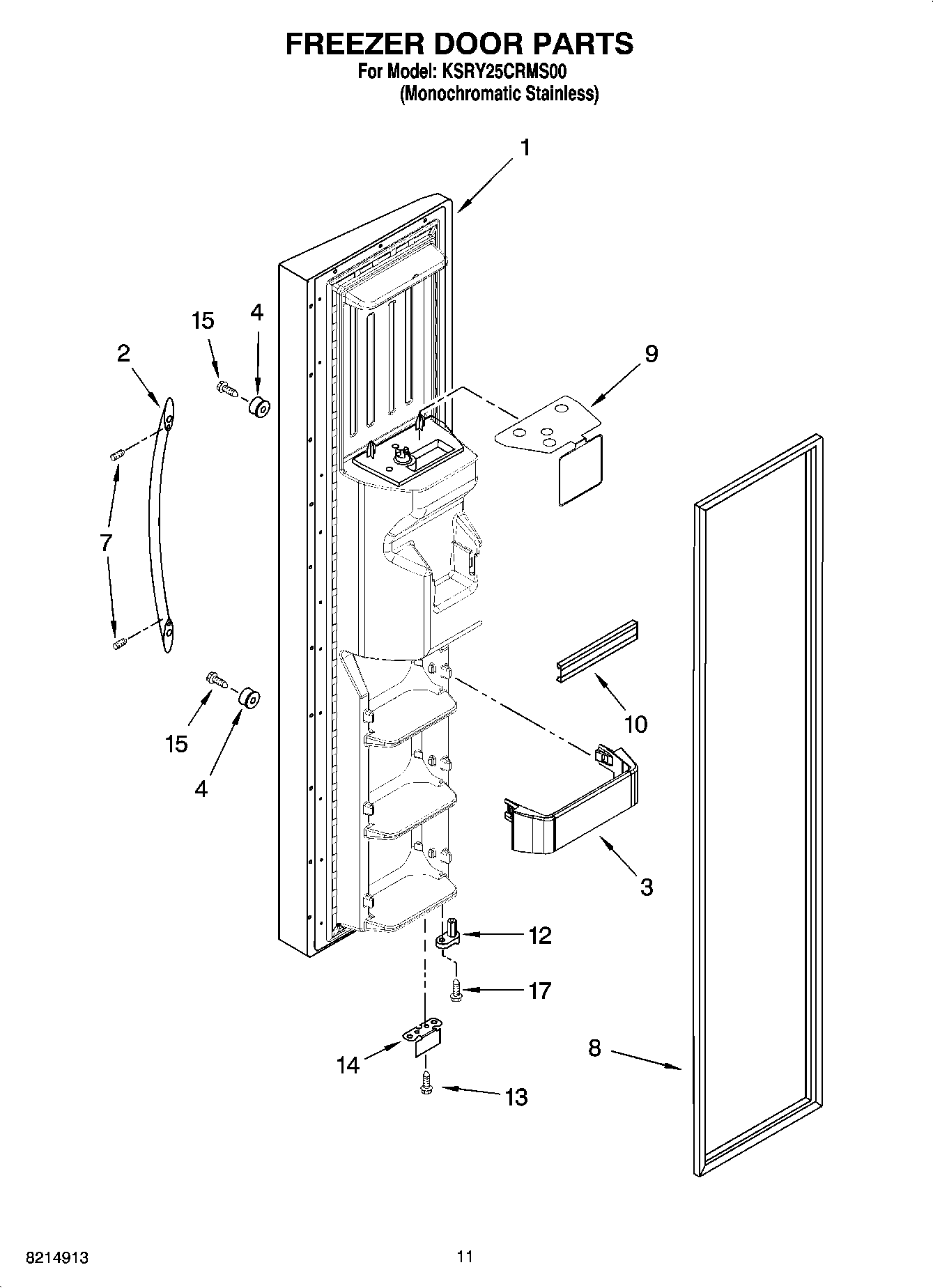

KSRY25CRMS00 07 – FREEZER DOOR PARTS

KSRY25CRMS00 07 – FREEZER DOOR PARTS

Written by

in

KSRY25CRMS00 07 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes 8 And Dispenser Front Parts) (Monochromatic Stainless)
2Handle
3Trivet (3)
4WPW10170540 Whirlpool Screw
7SCREW
82159074 Whirlpool Door Gasket Seal
9Safety Barrier
10WPW10307490 Whirlpool Door Trim Assembly
12WP2182179 Whirlpool Cam Closer
13WP489483 Whirlpool Screw
14Bracket, Door Stop
15WP488163 Whirlpool Refrigerator Screw
17WP3400012 Whirlpool Refrigerator Screw
