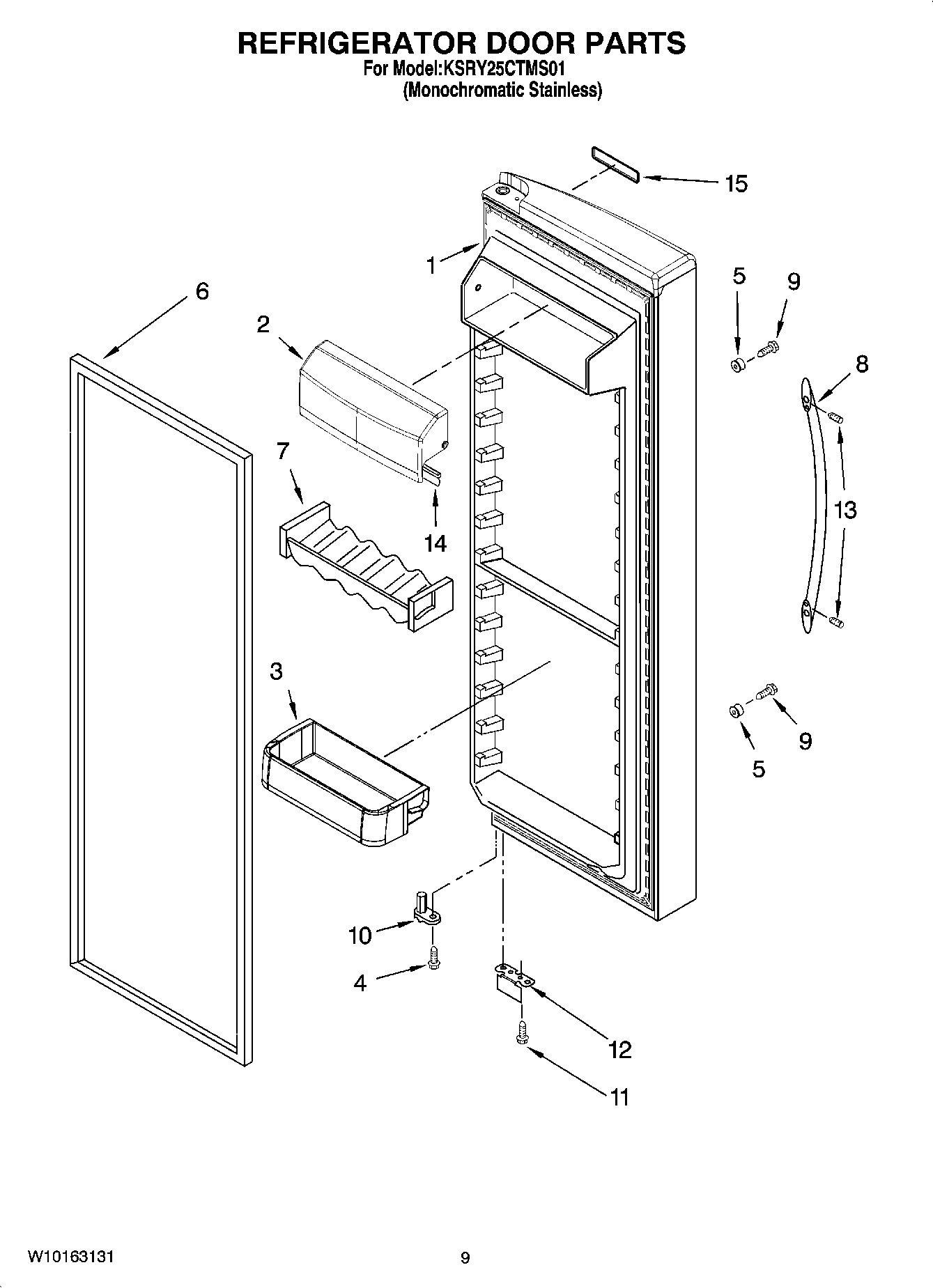

KSRY25CTMS01 06 – REFRIGERATOR DOOR PARTS

KSRY25CTMS01 06 – REFRIGERATOR DOOR PARTS

Written by

in

KSRY25CTMS01 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Item 6) (Monochromatic Stainless)
2Door, Compartment
3WP2223434K Whirlpool Refrigerator Door Shelf Bin
4WP3400012 Whirlpool Refrigerator Screw
5WPW10170540 Whirlpool Screw
6WPW10136734 Whirlpool Refrigerator Door Gasket
7Beverage Holder
8Handle, Door (Stainless Steel)
9WP488163 Whirlpool Refrigerator Screw
10WP2182179 Whirlpool Cam Closer
11WP489483 Whirlpool Screw
12Bracket, Door Stop
13SCREW
14Gasket, Door Compartment
15Nameplate (Stainless Steel)
