KSRY25CTMS01 07 – FREEZER DOOR PARTS

KSRY25CTMS01 07 – FREEZER DOOR PARTS

Written by

in

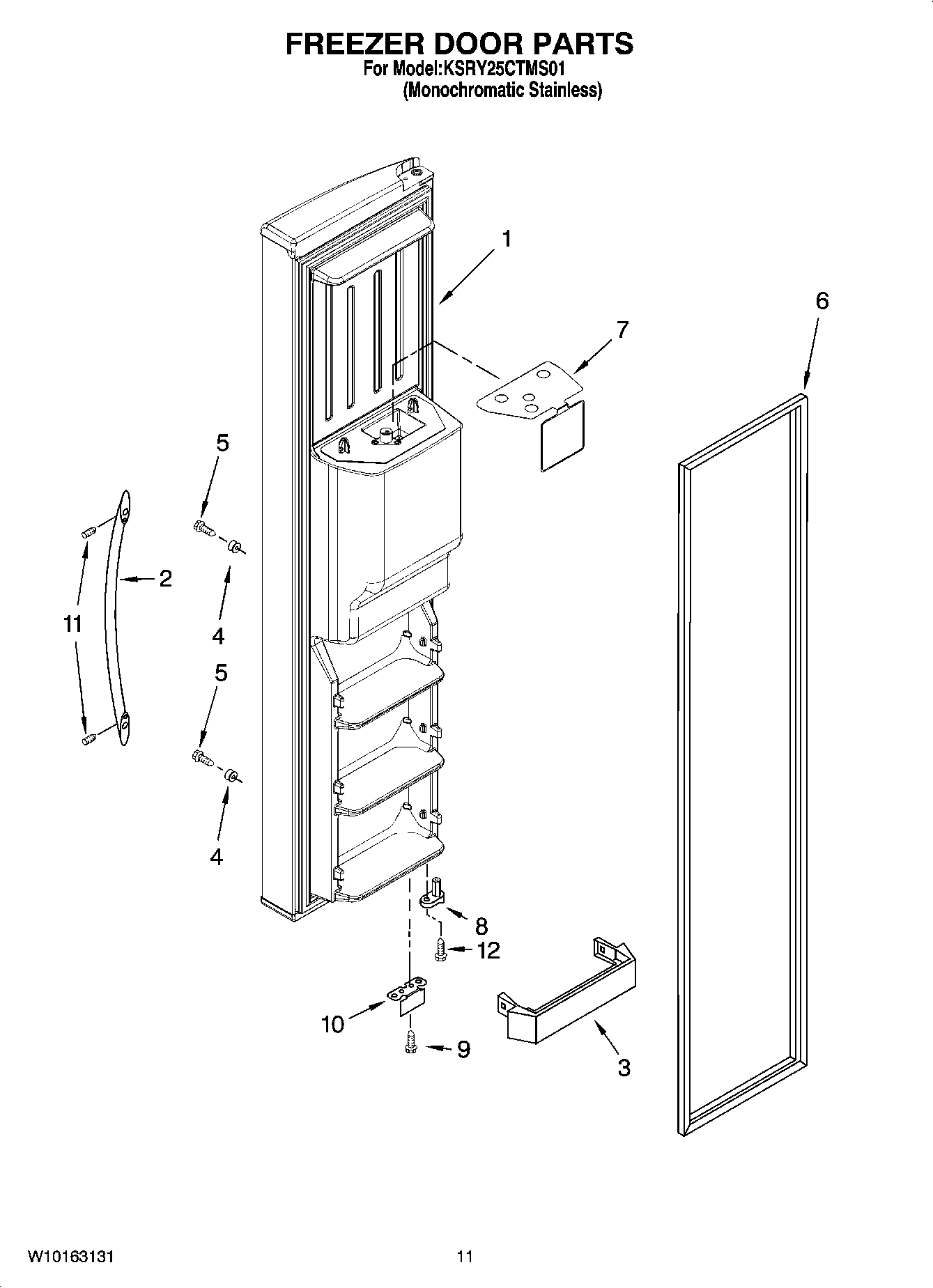

KSRY25CTMS01 07 – FREEZER DOOR PARTS

Products

PositionProduct
Following Parts Not Illustrated
Tube, Door
Wire Assembly, Freezer Door
1Freezer Door (Includes 7 And Dispenser Front Parts) (Monochromatic Stainless)
2Handle, Door (Stainless Steel)
3Trivet (3)
4WPW10170540 Whirlpool Screw
5WP488163 Whirlpool Refrigerator Screw
6W10136735 Whirlpool Refrigerator Door Gasket
7Safety Barrier
8WP2223752 Whirlpool Refrigerator Door Cam
9WP489483 Whirlpool Screw
10Bracket, Door Stop (Chrome)
11SCREW
12WP3400012 Whirlpool Refrigerator Screw
