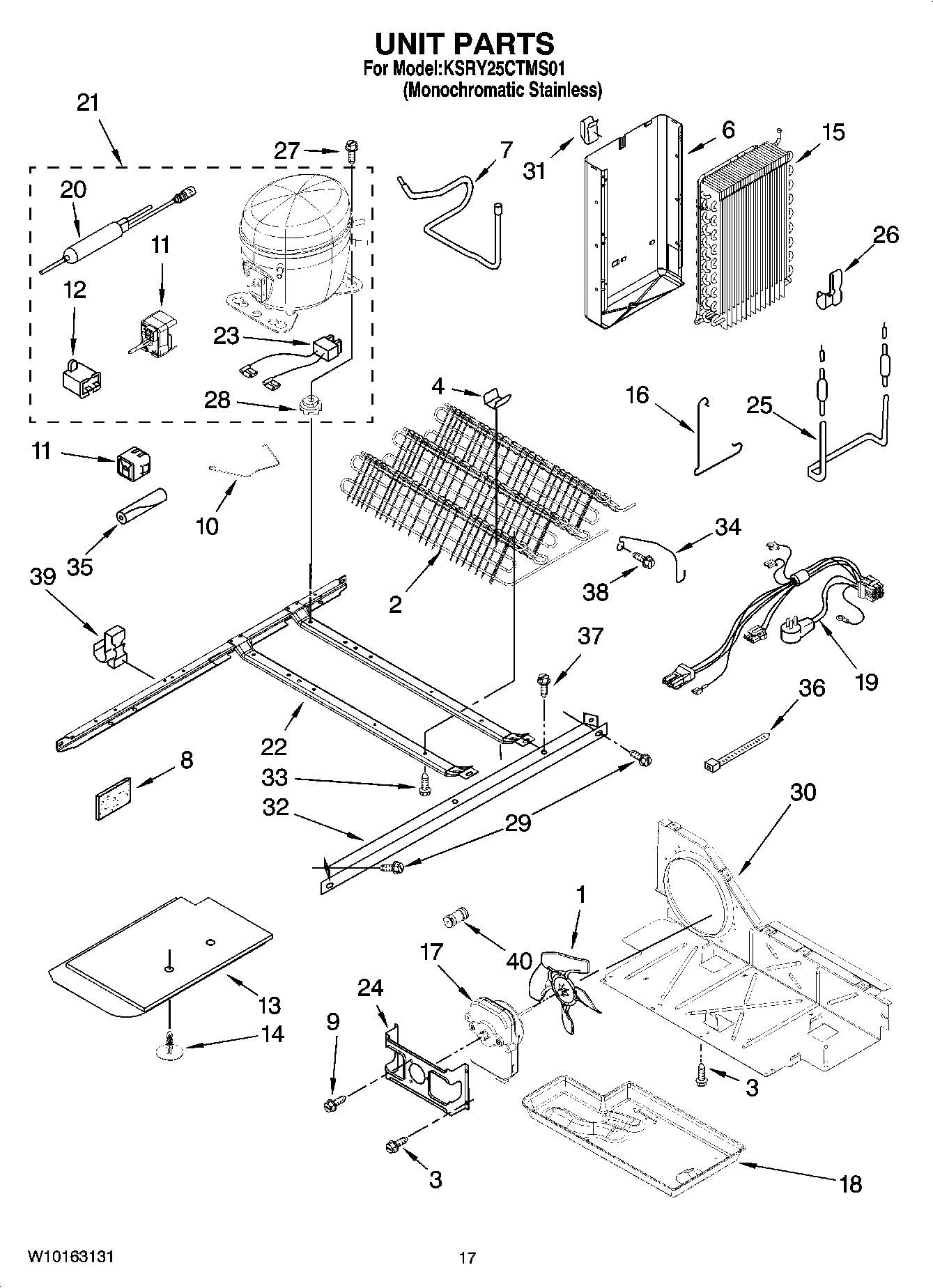

KSRY25CTMS01 11 – UNIT PARTS

Products

Position	Product
	876764 Whirlpool Refrigerator Primary Valve
	REFRIGERANT CHARGE 5.0 oz. (R-134A)
	VALVE, ACCESS (1/2“)
	WP978025 Whirlpool Refrigerator Valve
	978030 Whirlpool Refrigerator Valve
	978027 Whirlpool Refrigerator Primary Valve
	978026 Whirlpool Refrigerator Primary Valve
	VALVE, ACCESS (5/8“)
	Following Parts Not Illustrated and Optional Parts Not Included
1	W11458267 Whirlpool Refrigerator Fan Blade
2	2324712 Whirlpool Refrigerator Condenser
3	WP489464 Whirlpool Refrigerator Screw
4	W10683556 Whirlpool Refrigerator Clip
6	Heat Shield
7	WP2205765 Whirlpool Refrigerator Tube
8	W11553819 Whirlpool Refrigerator Insulation
9	WP8533993 Whirlpool Refrigerator Screw
10	Clip, Retaining
11	WP2319792 Whirlpool Refrigerator Start Device
12	WPW10662129 Whirlpool Refrigerator Run Capacitor
13	Unit Cover, Bottom
14	489396 Whirlpool Refrigerator Clip
15	WP2188823 Whirlpool Refrigerator Evaporator
16	Clamp
17	WP2188874 Whirlpool Refrigerator Condenser Motor
18	WPW10614158 Whirlpool Refrigerator Evaporator Tray
19	Harness, Unit
20	W10843121 Whirlpool Refrigerator Tube
20	WPW10143759 Whirlpool Dryer Filter
21	W10139460 Whirlpool Refrigerator Compressor
22	2304904 Whirlpool Frame Assembly
23	WP2172890 Whirlpool Refrigerator Wire
24	WP2181929 Whirlpool Refrigerator Bracket
25	WP2323198 Whirlpool Refrigerator Heater
26	W11623163 Whirlpool Refrigerator Clip
28	876811 Whirlpool Grommet
28	WP4387558 Whirlpool Refrigerator Compressor Grommet
29	489340 Whirlpool Refrigerator Screw
30	W10896764 Whirlpool Refrigerator Air Baffle
31	Clip, Heat Shield
32	2305374 Whirlpool Refrigerator Unit Rail
33	W11544659 Whirlpool Refrigerator Screw
34	2260517 Whirlpool Fan Guard
35	SLEEVE
36	WPW10339879 Whirlpool Wire Tie
37	WP489427 Whirlpool Refrigerator Screw
38	WP489478 Whirlpool Refrigerator Screw
39	Clip, Wire & Tube
40	WPW10271543 Whirlpool Refrigerator Connector
