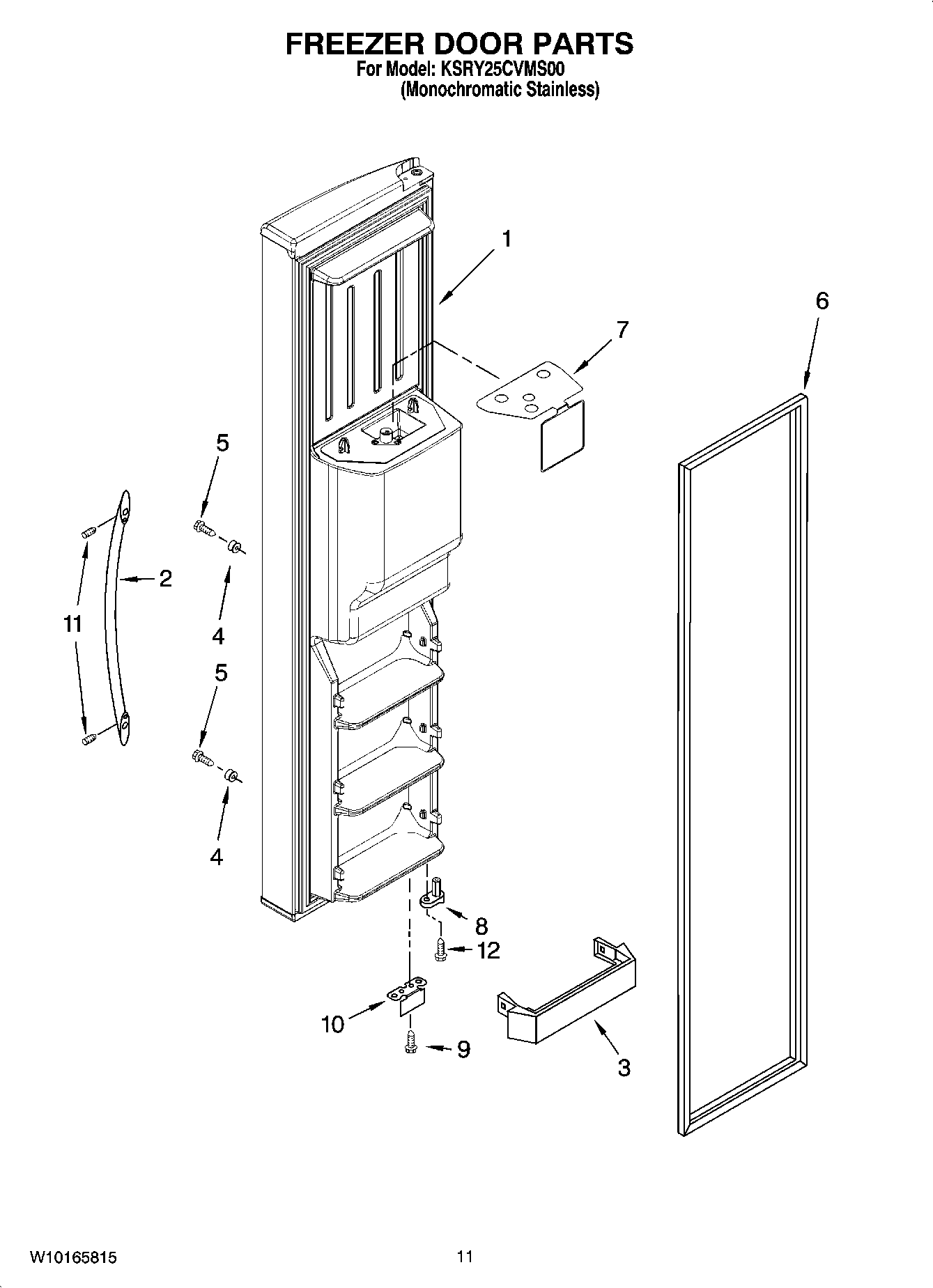

KSRY25CVMS00 07 – FREEZER DOOR PARTS

KSRY25CVMS00 07 – FREEZER DOOR PARTS

Written by

in

KSRY25CVMS00 07 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes 7 And Dispenser Front Parts) (Monochromatic Stainless)
2Handle
3Trivet (3)
4WPW10170540 Whirlpool Screw
5WP488163 Whirlpool Refrigerator Screw
6W10136735 Whirlpool Refrigerator Door Gasket
7Safety Barrier
8WP2223752 Whirlpool Refrigerator Door Cam
9WP489483 Whirlpool Screw
10Bracket, Door Stop (Chrome)
11SCREW
12Wire Assembly, Freezer Door
12WP3400012 Whirlpool Refrigerator Screw
12Tube, Door
12Following Parts Not Illustrated
