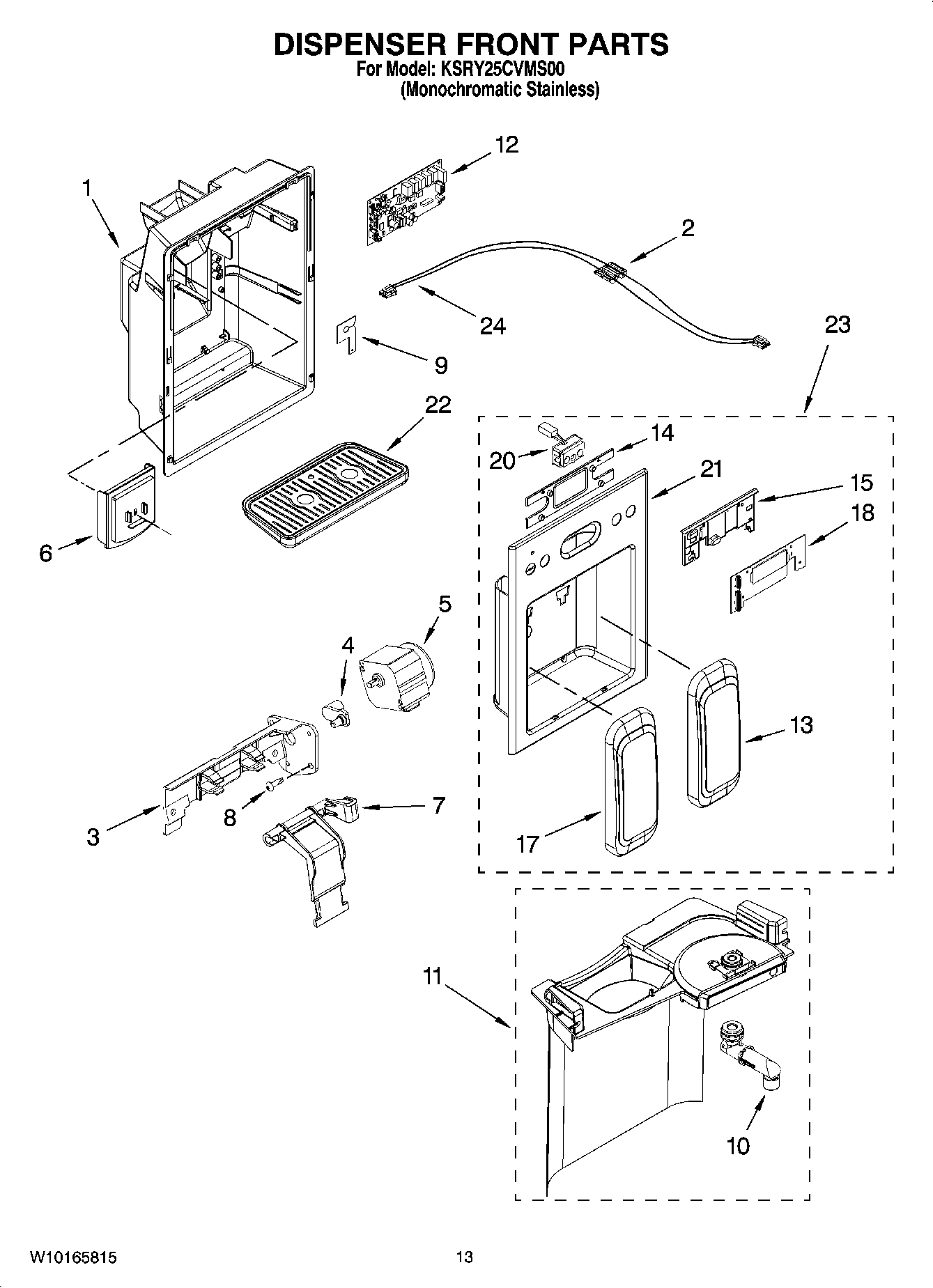

KSRY25CVMS00 08 – DISPENSER FRONT PARTS

Products

PositionProduct
1Housing Dispenser (Not Serviced)
2Ferrite Bead
3WP2305202 Whirlpool Refrigerator Bracket
4WP2305242 Whirlpool Refrigerator Connector
5WPW10184813 Whirlpool Refrigerator Motor
6WP2305258 Whirlpool Dispenser Door Assembly
7WP2305204 Whirlpool Refrigerator Support
8WP4449745 Whirlpool Screw
92305447 Whirlpool Refrigerator Clip
10Spigot
11Seperator Assembly
12WP2303843-includeCORE Whirlpool WP2303843 Refrigerator Electronic Control Board + Core
14Lens, Front Cover
152305219 Whirlpool Refrigerator Cover
17W10133606 Whirlpool Refrigerator Pad
18WP2321746 Whirlpool Refrigerator Electronic Control Board
20LED Assembly
21Front Cover, Housing (Not Available Order 23)
22Drip Tray Assembly (Universal Silver)
23Front Cover Assembly (Includes Items 14, 17, 18, 20, & 21) (Universal Silver)
24WPL 2187814
