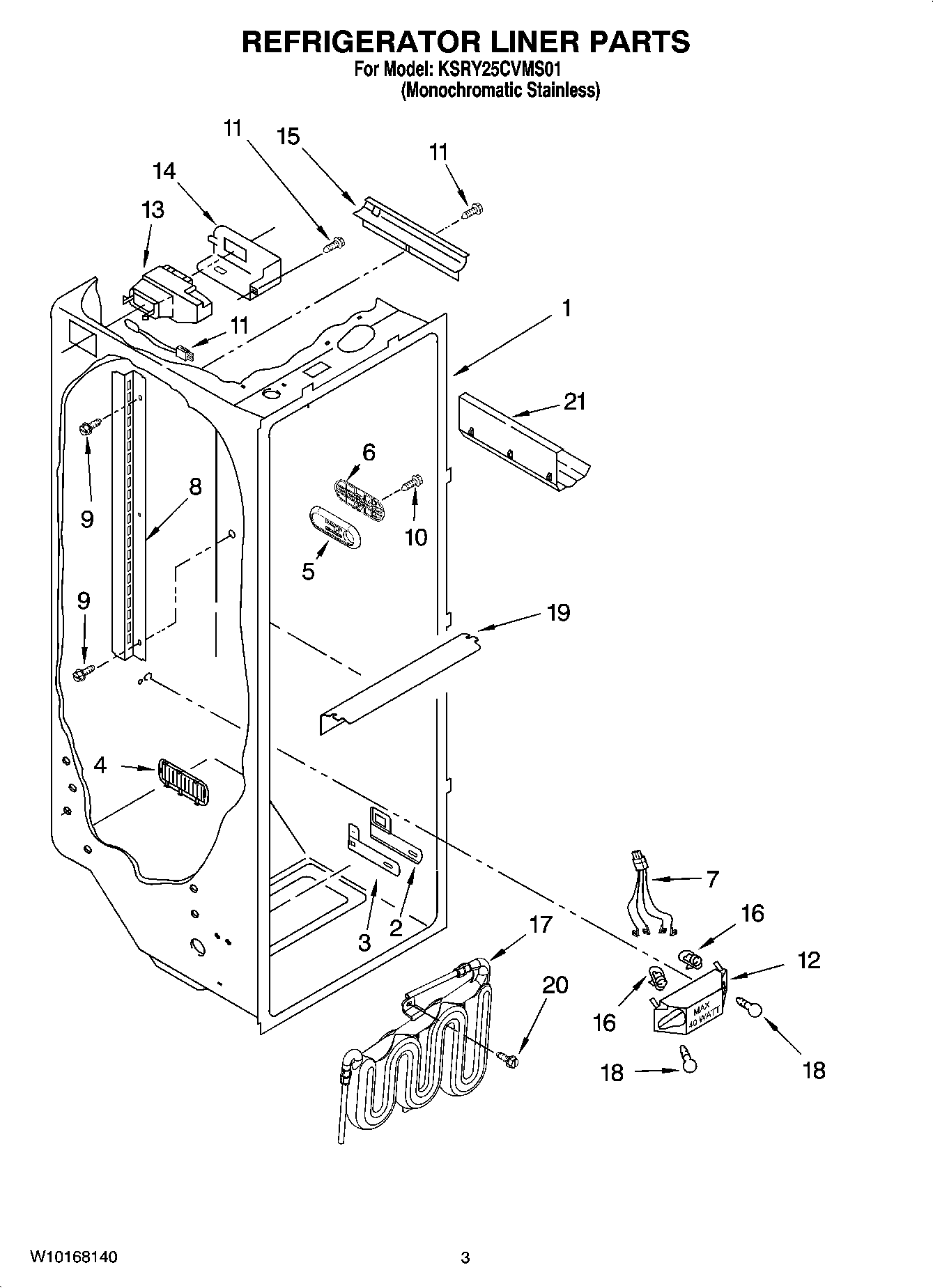

KSRY25CVMS01 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Escutcheon, Meat Pan Control
3Slide Meat Pan Control
4Louver
52301234 Whirlpool Refrigerator Control
6Slide, Door Control
72311637 Whirlpool Refrigerator Wire Harness
8Shelf Ladder
9WP489478 Whirlpool Refrigerator Screw
10W10759522 Whirlpool Screw
11WP2188819 Whirlpool Thermistor
12Bracket, Dual Crisper Light
13WP2216112 Whirlpool Damper Control Assembly
14WP2212240 Whirlpool Refrigerator Cover
152150331 Whirlpool Refrigerator Wire Cover
164387478 Whirlpool Refrigerator Light Socket
17RESERVOIR
18RANGE ONLY 40W 120V APPL BULB
19Light Lens
20Screw (2)
21W10777924 Whirlpool Refrigerator Wine Rack
