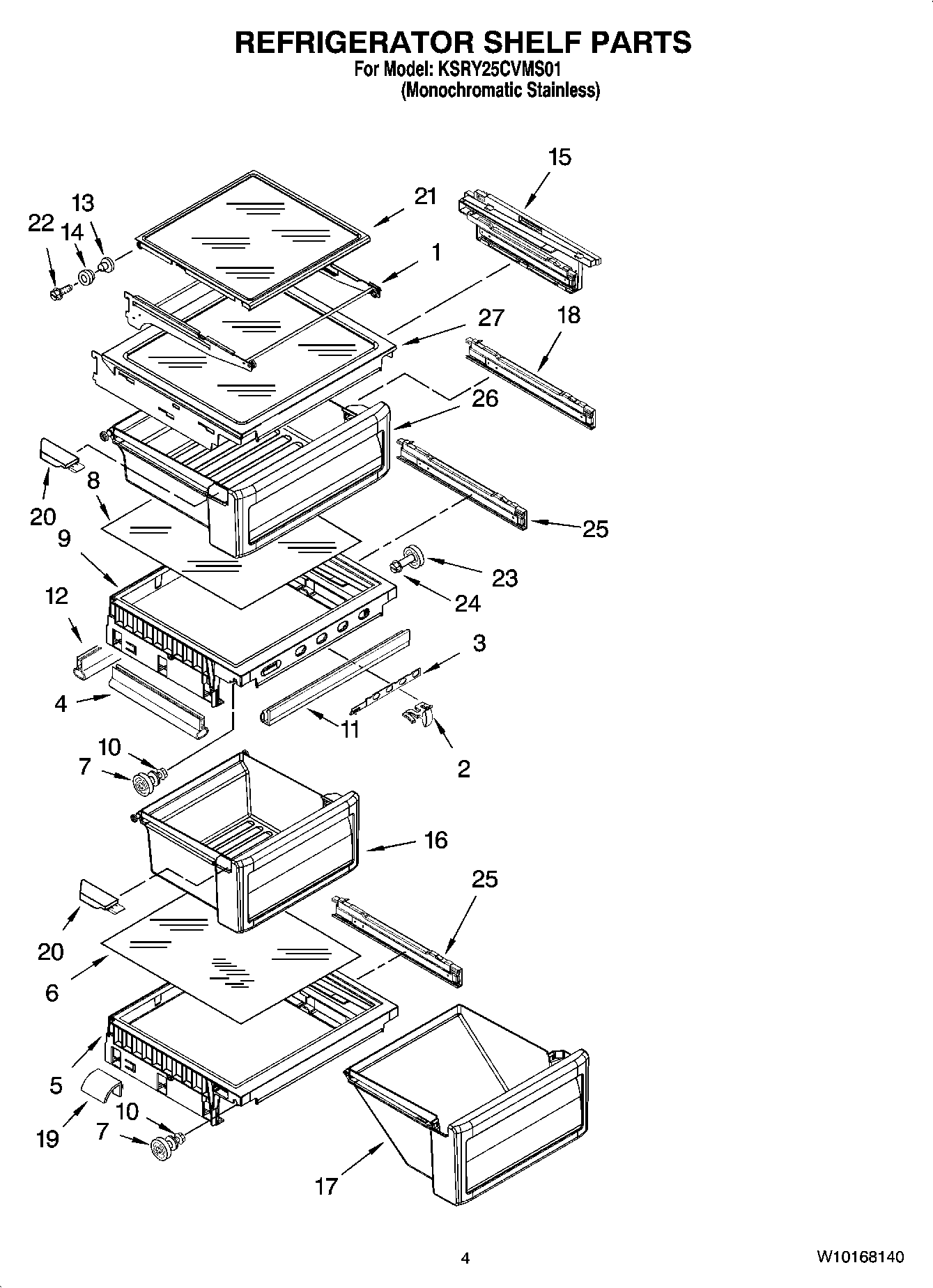

KSRY25CVMS01 03 – REFRIGERATOR SHELF PARTS

Products

Position	Product
1	Frame Assembly
2	Knob, Humidity
3	2301026 Whirlpool Refrigerator Slide
4	2301117 Whirlpool Refrigerator Gasket
5	Cover, Meat Pan (Includes 20 & 24)
6	Glass, Meat Pan Cover
7	W11223328 Whirlpool Refrigerator Shelf Stud
8	Glass, Crisper Cover
9	Cover, Crisper (Includes 2, 3, 4,11,12 & 24)
10	WP3-24004-109 Whirlpool Refrigerator Screw
11	WP1125528 Whirlpool Refrigerator Gasket
12	Gasket, Rear
13	Eyelet, Roller
14	Roller
15	Support Assembly (Left Side)
15	Support Assembly (Right Side)
16	W10916292 Whirlpool Refrigerator Crisper Pan
17	Meat Pan (Includes 21)
18	Glide Assm-Pan (Right Side)
18	Glide Assm-Pan (Left Side)
19	Deflector
20	Cap, Crisper Pan (Right Side)
20	Cap, Crisper Pan (Left Side)
21	Shelf & Roller Assembly (2)
22	Screw
23	WP2196483 Whirlpool Refrigerator Shelf Stud
24	WP3400806 Whirlpool Screw
25	2301548 Whirlpool Refrigerator Glide
25	Glide Assm-Pan (Left Side)
26	Snack Bin
27	Shelf Assembly
