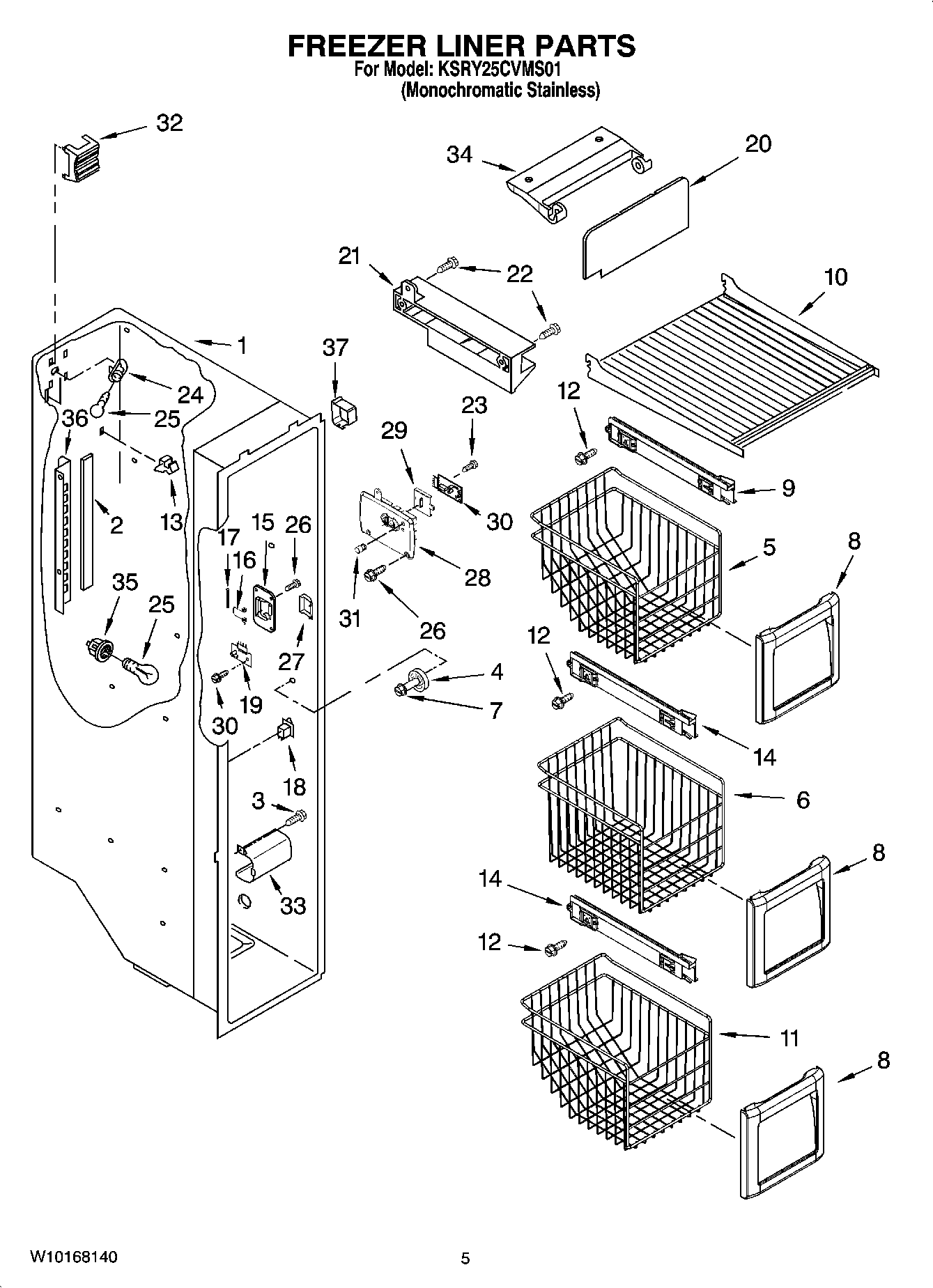

KSRY25CVMS01 04 – FREEZER LINER PARTS

Products

Position	Product
1	Liner (Not A Seviceable Part)
2	Gasket
3	W10142289 Whirlpool Air Conditioner Screw
4	WP2196483 Whirlpool Refrigerator Shelf Stud
5	Basket, Top
6	Basket, Deep
7	WP3400806 Whirlpool Screw
8	Front, Assembly Basket
9	Glide Assy, Basket Top (Left Side)
9	Glide Assy, Basket Top (Right Side)
10	Shelf (2)
11	Basket, Sloped
12	Screw
13	2215823 Whirlpool Refrigerator Clip
14	Glide Assy, Basket (Right Side)
14	Glide Assy, Basket (Left Side)
15	WP2198587 Whirlpool Refrigerator Cover
16	WP2198635 Whirlpool Refrigerator Spring
17	WP2198634 Whirlpool Door Pin
18	W11457217 Whirlpool Refrigerator Rocker Switch Combination
19	W10757851-includeCORE Whirlpool Electronic Control+Core
20	WP2255720 Whirlpool Refrigerator Ice Maker Door
21	Slide, Ice Maker
22	WP489478 Whirlpool Refrigerator Screw
23	2006254 Whirlpool Refrigerator Screw
24	4387478 Whirlpool Refrigerator Light Socket
25	RANGE ONLY 40W 120V APPL BULB
26	WPW10142283 Whirlpool Refrigerator Screw
27	WP2198633 Whirlpool Refrigerator Flipper
28	Cover, Receiver
29	Slide, Ice Maker Shut Off
31	WP2198643 Whirlpool Refrigerator Lens
32	Light Shield
33	Light Lens
34	WP2198641 Whirlpool Refrigerator Ice Maker Cover Bracket
35	SOCKET
36	Ladder (Right Side)
36	Ladder (Left Side)
37	2303234 Whirlpool Refrigerator Shield
