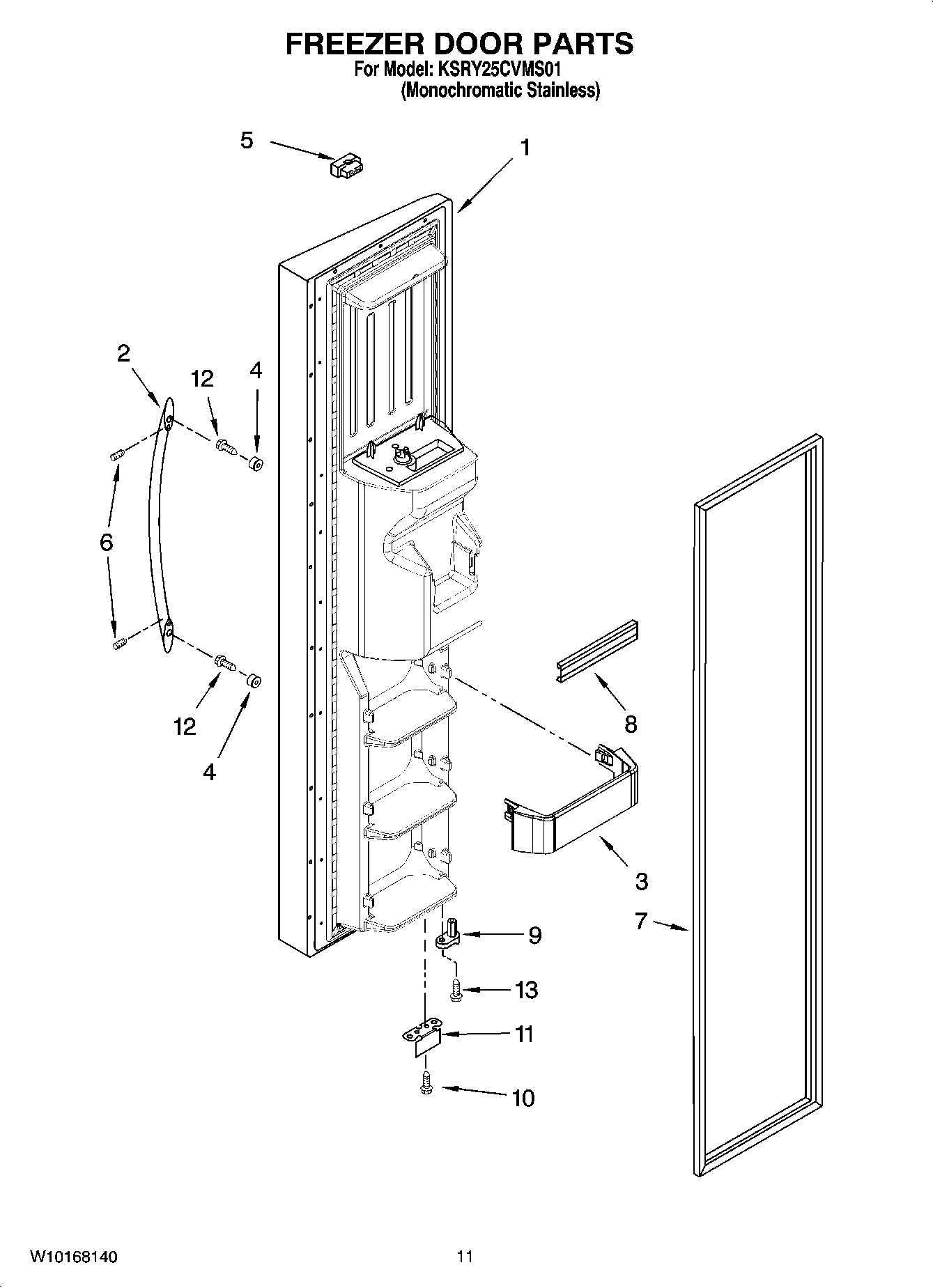

KSRY25CVMS01 07 – FREEZER DOOR PARTS

KSRY25CVMS01 07 – FREEZER DOOR PARTS

Written by

in

KSRY25CVMS01 07 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes 7 And Dispenser Front Parts) (Monochromatic Stainless)
2Handle
3Trivet (3)
4WPW10170540 Whirlpool Screw
5Connector
6SCREW
7W10136735 Whirlpool Refrigerator Door Gasket
8WPW10307490 Whirlpool Door Trim Assembly
9WP2182179 Whirlpool Cam Closer
10WP489483 Whirlpool Screw
11Bracket, Door Stop
12WP488163 Whirlpool Refrigerator Screw
13WP3400012 Whirlpool Refrigerator Screw
