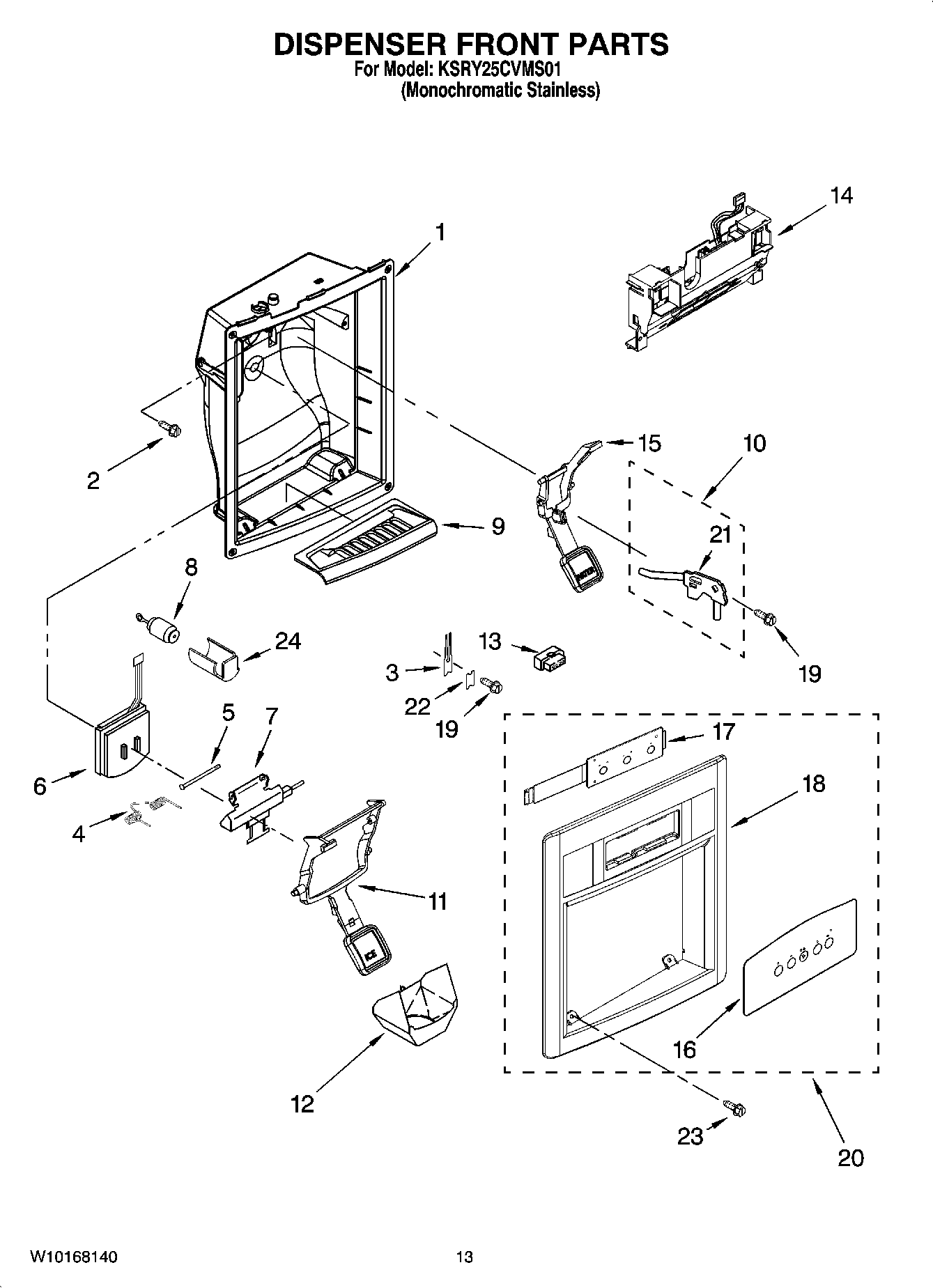

KSRY25CVMS01 08 – DISPENSER FRONT PARTS

Products

Position	Product
1	Housing Dispenser (Not Serviced)
3	WP2194719 Whirlpool Refrigerator Clip
4	WPW10224328 Whirlpool Refrigerator Spring
5	WP2196195 Whirlpool Refrigerator Door Pin
6	WP2180353 Whirlpool Dispenser Door
7	Door Mechanism Assembly
8	Delay Mechanism
9	Grille, Overflow (Apollo Gray)
10	8201537 Whirlpool Water Tubing Assembly
11	Lever, Ice Dispenser (Apollo Gray)
12	WP2180224 Whirlpool Dispenser Funnel Guide
13	Connector
14	Bracket, Control
15	Lever, Water Dispenser (Apollo Gray)
16	Overlay, Front Cover (Not Available, Order 20)
17	LED Display with Auto Night Light (Not Available Order 20)
18	Front Cover, Housing (Not Available, Order 20)
19	WP3400906 Whirlpool Refrigerator Screw
20	Front Cover Assembly (Includes Items 16, 17 & 18) (Universal Silver)
21	WP2304673 Whirlpool Refrigerator Bracket
22	WP2195051 Whirlpool Refrigerator Clip
23	WP3400065 Whirlpool Refrigerator Screw
24	Sleeve, Delay Mechanism
