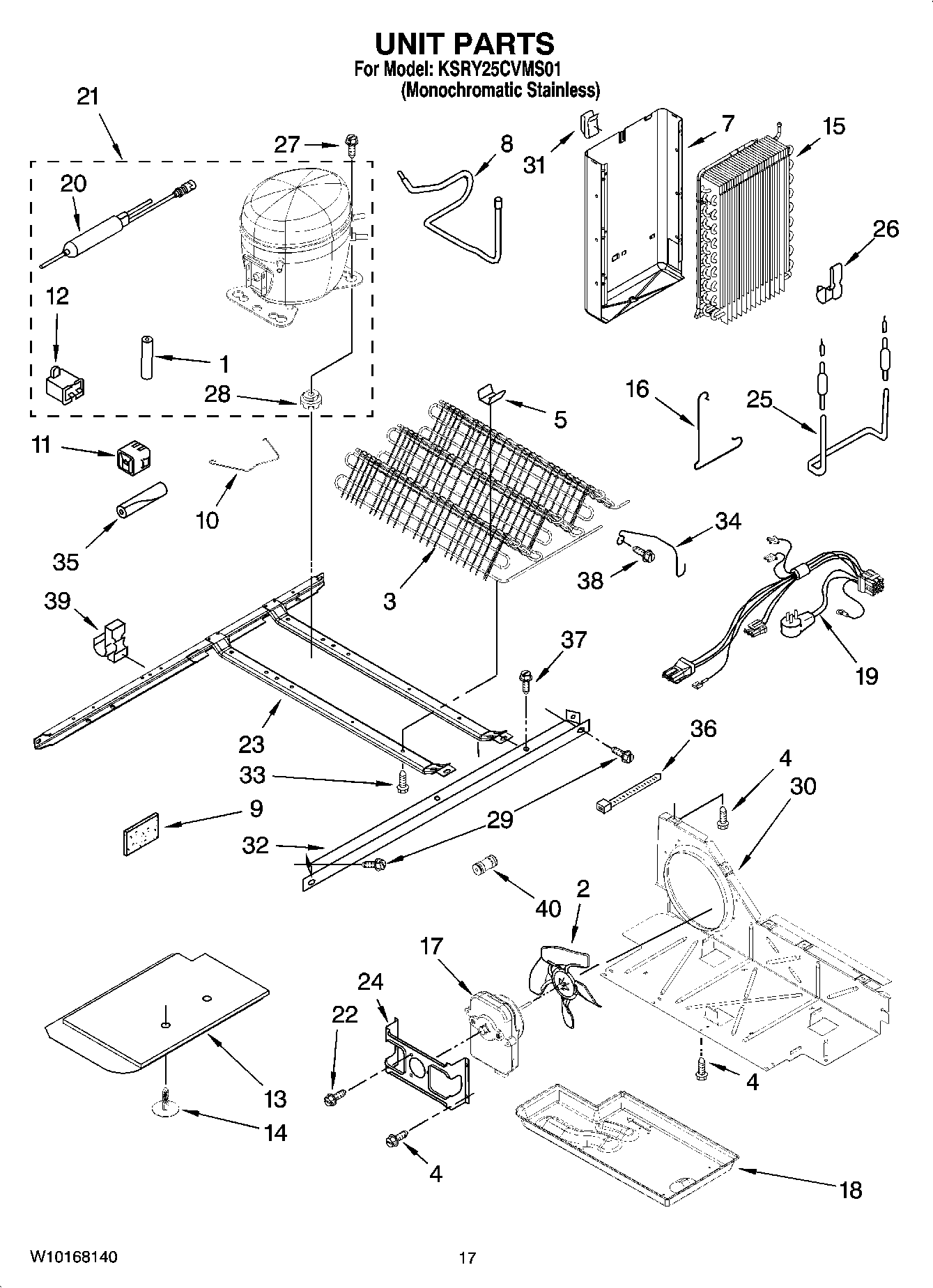

KSRY25CVMS01 11 – UNIT PARTSadmin2025-04-26T12:08:17+00:00KSRY25CVMS01 11 – UNIT PARTS ProductsPositionProduct876764 Whirlpool Refrigerator Primary ValveREFRIGERANT CHARGE 5.00 oz. (R-134A)VALVE, ACCESS (1/2``)WP978025 Whirlpool Refrigerator Valve978030 Whirlpool Refrigerator Valve978027 Whirlpool Refrigerator Primary Valve978026 Whirlpool Refrigerator Primary ValveFollowing Parts Not Illustrated and Optional Parts Not IncludedVALVE, ACCESS (5/8``)1Sleeve (4) (Service Only)2W11458267 Whirlpool Refrigerator Fan Blade32324712 Whirlpool Refrigerator Condenser4WP489464 Whirlpool Refrigerator Screw5W10683556 Whirlpool Refrigerator Clip7Heat Shield8WP2205765 Whirlpool Refrigerator Tube9W11553819 Whirlpool Refrigerator Insulation102223314 Whirlpool Refrigerator Clip11WP2304885 Whirlpool Refrigerator Start Device12WPW10662129 Whirlpool Refrigerator Run Capacitor13Unit Cover, Bottom14489396 Whirlpool Refrigerator Clip15WP2188823 Whirlpool Refrigerator Evaporator16Clamp17W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade18WPW10614158 Whirlpool Refrigerator Evaporator Tray19Unit, Harness20W10843121 Whirlpool Refrigerator Tube20WPW10143759 Whirlpool Dryer Filter21W10139460 Whirlpool Refrigerator Compressor22WP8533993 Whirlpool Refrigerator Screw232304904 Whirlpool Frame Assembly24WP2181929 Whirlpool Refrigerator Bracket25WP2323198 Whirlpool Refrigerator Heater26W11623163 Whirlpool Refrigerator Clip28876811 Whirlpool Grommet28WP4387558 Whirlpool Refrigerator Compressor Grommet29489340 Whirlpool Refrigerator Screw30W10896764 Whirlpool Refrigerator Air Baffle31Clip, Heat Shield322305374 Whirlpool Refrigerator Unit Rail33W11544659 Whirlpool Refrigerator Screw342260517 Whirlpool Fan Guard35SLEEVE36WPW10339879 Whirlpool Wire Tie37WP489427 Whirlpool Refrigerator Screw38WP489478 Whirlpool Refrigerator Screw39Clip, Wire & Tube40WPW10334458 Whirlpool Refrigerator Connector
