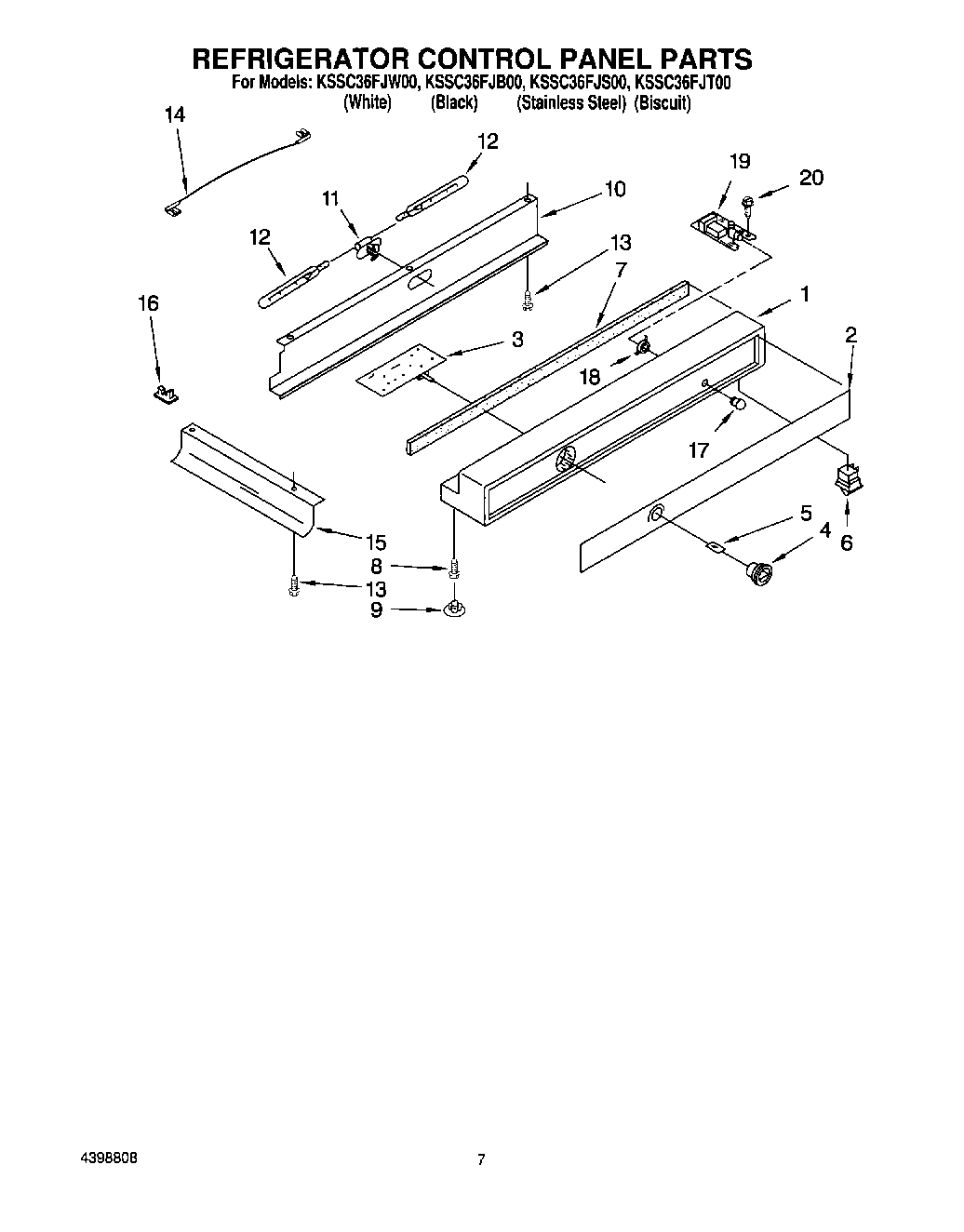

KSSC36FJB00 05 – REFRIGERATOR CONTROL PANEL

Products

Position	Product
1	Control Panel
2	Inlay, Control Panel
3	Circuit Board
4	Control Knob
5	Retainer, Knob
6	W11384469 Whirlpool Door Switch
7	Seal, Control Panel
8	Screw (3)
9	Hole Plug (3)
10	Shield, Control Panel
11	Socket, Light
12	WP548049 Whirlpool Refrigerator Light Bulb
13	W11624204 Whirlpool Screw
14	Wire, Light
15	Channel, Wiring
16	CLIP, WIRING
17	COVER, LIGHT LENS
18	Retainer, Light Lens
19	P.C. Board Filter Indicator
20	2006254 Whirlpool Refrigerator Screw
