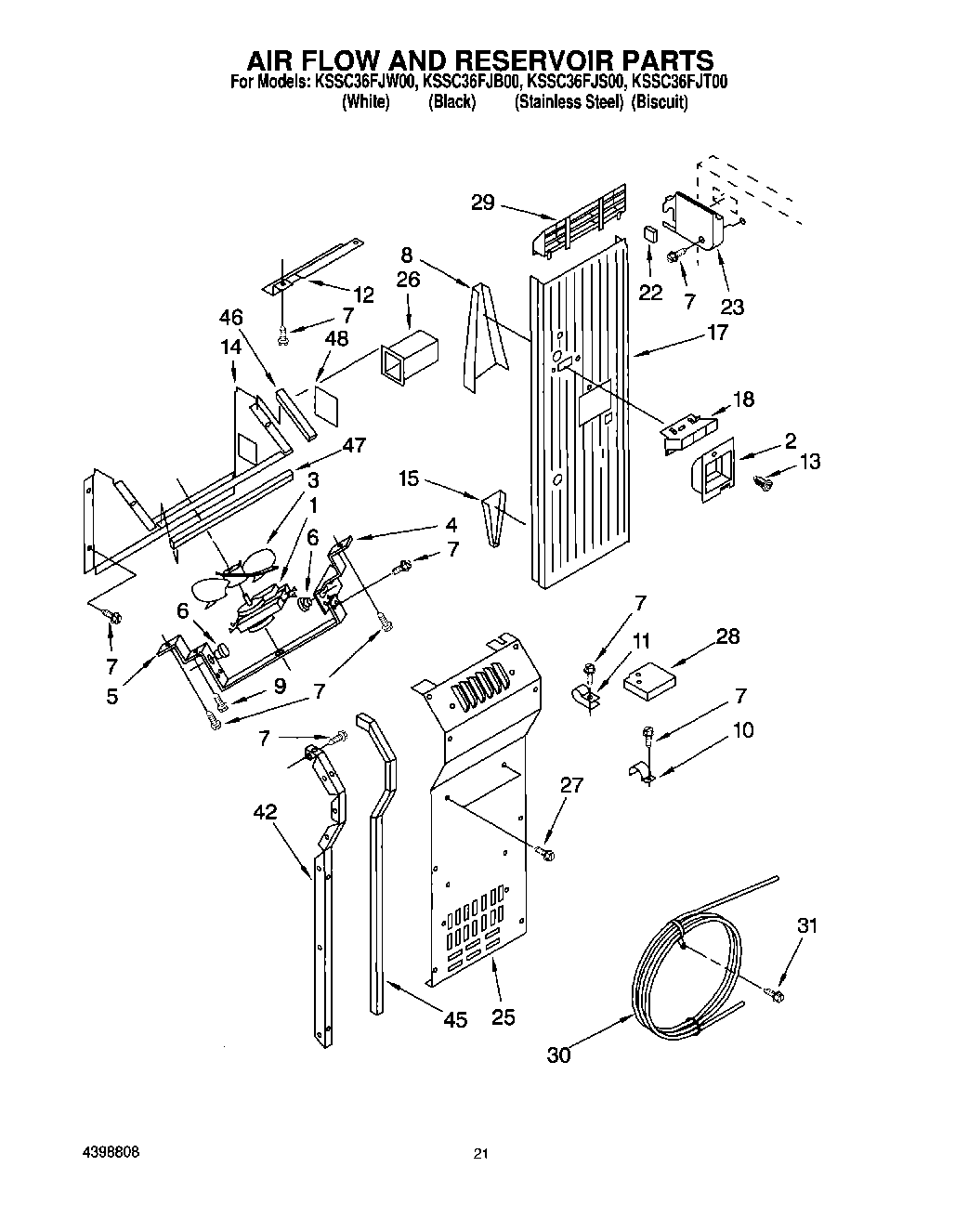

KSSC36FJB00 14 – AIRFLOW AND RESERVOIR

Products

Position	Product
1	MOTOR-EVAP
2	Cup, Clearance
3	WP2169142 Whirlpool Fan Blade
4	Fan, Bracket Double
5	Fan Bracket, Single
6	Grommet (3)
7	W11624204 Whirlpool Screw
8	Deflector, Air Duct
9	WP489128 Whirlpool Refrigerator Screw
10	WP488366 Whirlpool Refrigerator Clamp
11	Clamp, Tube
12	Channel, Wiring
13	Fastener (3)
14	Scroll, Fan
15	Deflector, Air Duct
17	Assembly, Air Duct (Also Order Items 8 & 15)
18	2182146 Whirlpool Refrigerator Duct
22	Gasket, Air Baffle
23	Cover, Air Outlet
25	Cover, Evaporator
26	Connector, Meat Pan Duct
27	WP488729 Whirlpool Refrigerator Door Screw
28	Baffle, Evaporator
29	Diffuser, Air Duct
30	WP2256126 Whirlpool Refrigerator Reservoir
31	Screw (2)
42	Evaporator, Cover Rail (Right Side)
42	Evaporator, Cover Rail (Left Side)
45	Gasket (2) Evaporator Cover
46	Gasket (2)
47	Gasket
48	Gasket
