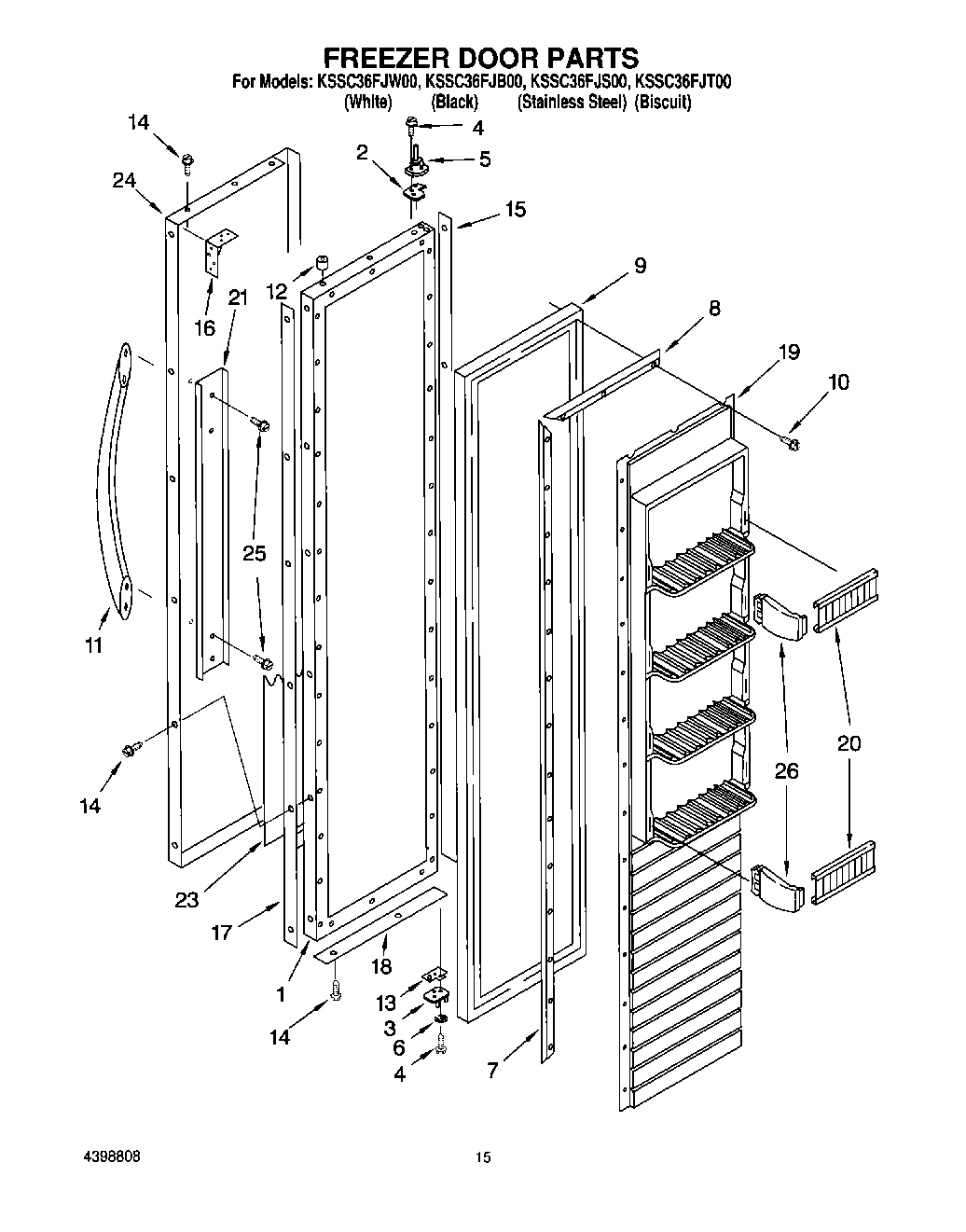

KSSC36FJS00 11 – FREEZER DOORadmin2025-04-26T12:06:02+00:00KSSC36FJS00 11 – FREEZER DOOR
Products
| Position | Product |
|---|
| 1 | Freezer Door Panel (Includes Insulation) |
| 2 | Spacer-Hinge, Top |
| 3 | Hinge, Bottom |
| 4 | W11474472 Whirlpool Screw |
| 5 | Hinge, Top |
| 6 | Retaining Ring, Door-Closure |
| 7 | Gasket Retainer, Side (2) |
| 8 | Gasket Retainer, Top & Bottom |
| 9 | Door Gasket, Magnetic |
| 10 | W11624204 Whirlpool Screw |
| 11 | Handle, Door (White) |
| 11 | Handle, Door (Black) |
| 11 | Handle, Door (Biscuit) |
| 11 | Handle, Door (Stainless Steel) |
| 12 | 2005433 Whirlpool Refrigerator Spacer |
| 13 | Door, Spacer |
| 14 | WP488729 Whirlpool Refrigerator Door Screw |
| 15 | Spacer, Hinge Side |
| 16 | Door Brace, Corner |
| 17 | Spacer, Handle Side |
| 18 | Spacer, Door Skin Bottom |
| 19 | Interior Door Panel |
| 20 | Foot, Front (Black-Right) |
| 21 | Plate, Handle |
| 23 | Filler, Door |
| 24 | Door Skin (Biscuit) |
| 24 | Door Skin (White) |
| 24 | Door Skin (Stainless Steel) |
| 24 | Door Skin (Black) |
| 25 | WP308544 Whirlpool Screw |
| 26 | Trim, Endcap (Left Side) |
| 26 | Trim, End Cap (Right Side) |
