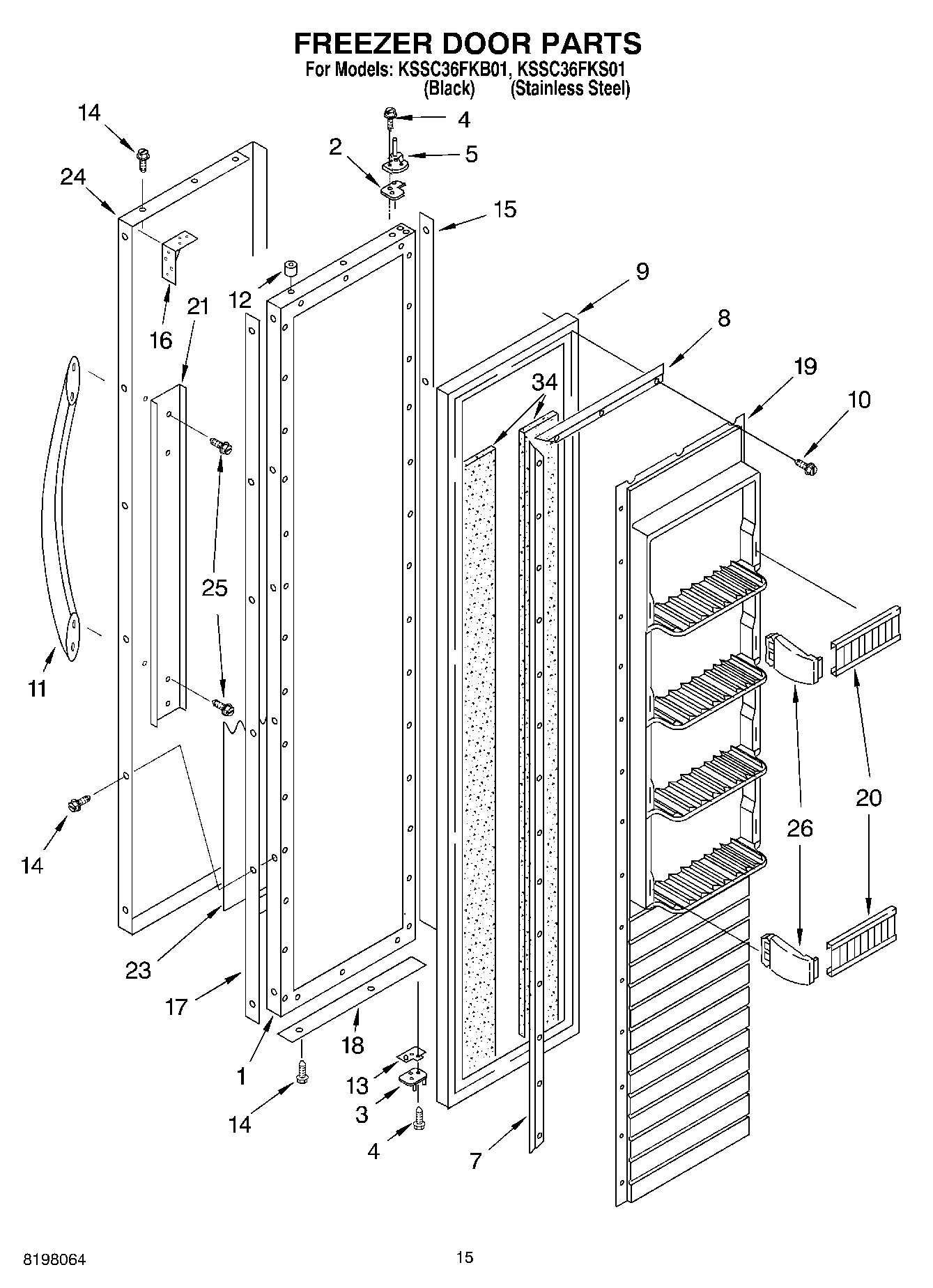

KSSC36FKB01 10 – FREEZER DOOR

Products

Position	Product
1	Freezer Door Panel (Includes Insulation)
2	Spacer-Hinge, Top
3	Hinge, Bottom
4	W11474472 Whirlpool Screw
5	Hinge, Top
7	Gasket Retainer, Side (2)
8	Gasket Retainer, Top & Bottom
9	Door Gasket, Magnetic
10	W11624204 Whirlpool Screw
11	Handle, Door (Black)
11	Handle, Door (Stainless Steel)
12	2005433 Whirlpool Refrigerator Spacer
13	Door, Spacer
14	WP8281250 Whirlpool Refrigerator Screw
14	W10851443 Whirlpool Refrigerator Screw
15	Spacer, Hinge Side
16	Door Brace, Corner
17	Spacer, Handle Side
18	Spacer, Door Skin Bottom
19	Interior Door Panel
20	Foot, Front (Black-Right)
21	Plate, Handle
23	Filler, Door
24	Door Skin (Black)
24	Door Skin (Stainless Steel)
25	WP308544 Whirlpool Screw
26	Trim, End Cap (Right Side)
26	Trim, Endcap (Left Side)
34	Seal
