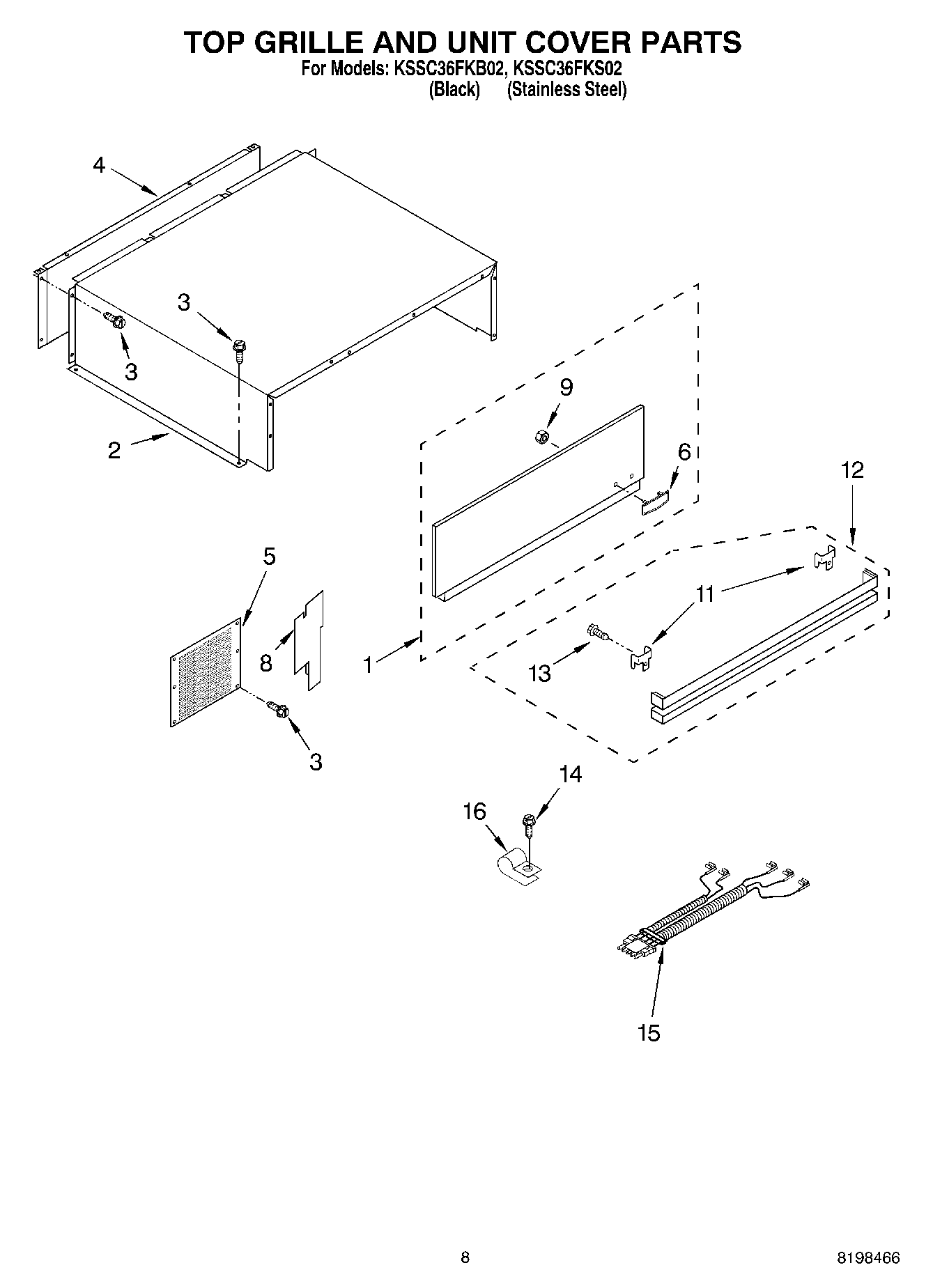

KSSC36FKB02 06 – TOP GRILLE AND UNIT COVER PARTS

KSSC36FKB02 06 – TOP GRILLE AND UNIT COVER PARTS

Written by

in

KSSC36FKB02 06 – TOP GRILLE AND UNIT COVER PARTS

Products

PositionProduct
1Top Grille Assembly (Black)
1Top Grille Assembly (Stainless Steel)
2Cover, Unit
3WP965173 Whirlpool Dishwasher Screw
42256466 Whirlpool Refrigerator Unit Cover
5Guard, Wiring
6Nameplate (Black)
8Baffle-Air, Condenser
9WP2004333 Whirlpool Refrigerator Nut
11Bracket, Louver
12Grille, Louver (Black)
12Grille, Louver (Stainless Steel)
13303776 Whirlpool Dishwasher Screw
14WP489069 Whirlpool Compactor Screw
15Wire Assembly RC/FC Light Switch
16488946 Whirlpool Air Conditioner Clamp
