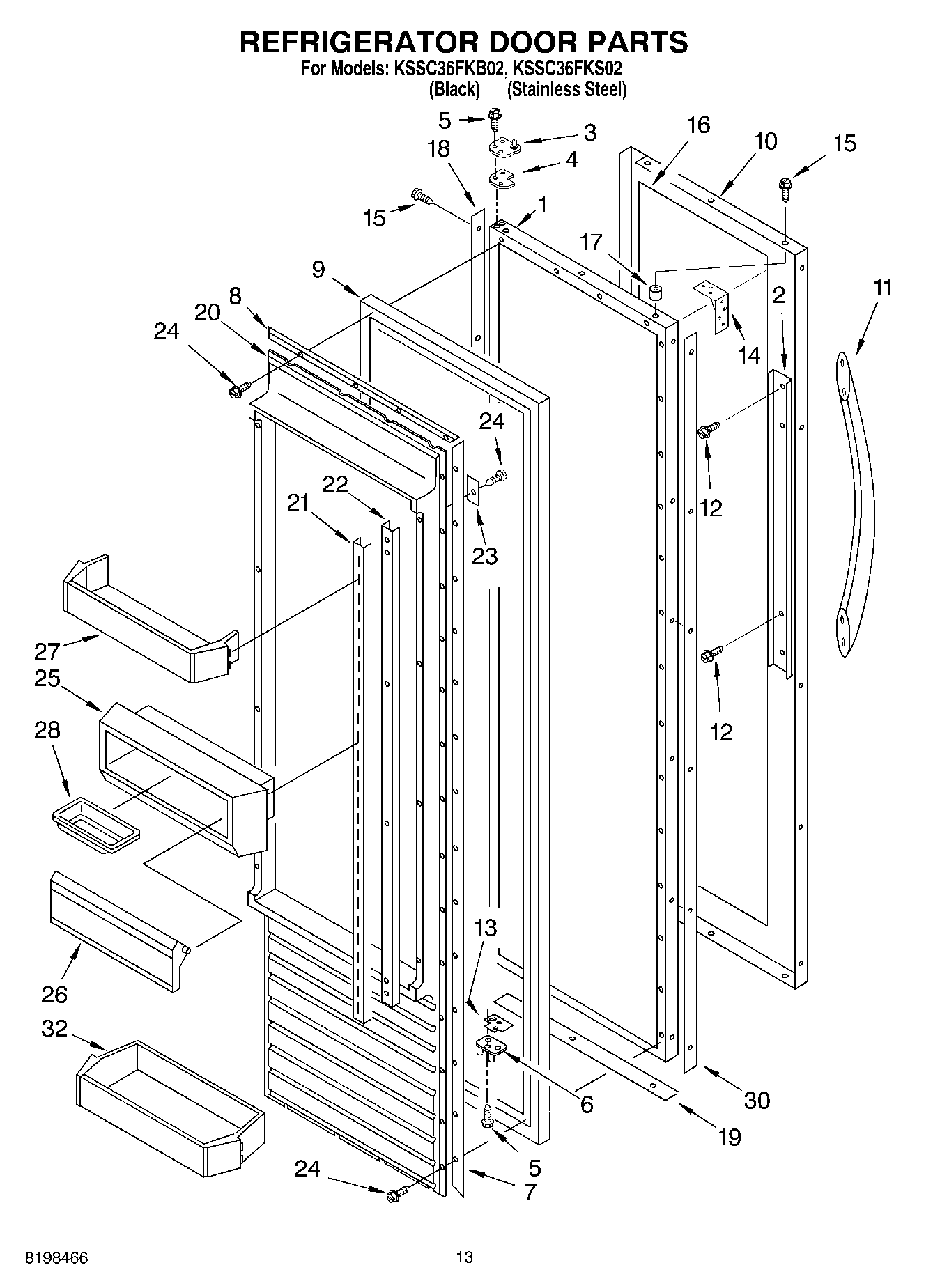

KSSC36FKB02 09 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door Panel (Includes Insulation)
2	Plate, Handle
3	W11724512 Whirlpool Door Hinge
4	Spacer-Hinge, Top
5	W11474472 Whirlpool Screw
6	2302878 Whirlpool Refrigerator Door Hinge
7	Gasket Retainer, Side (2)
8	Gasket Retainer, Top & Bottom
9	Door Gasket, Magnetic
10	Door Skin (Stainless Steel)
10	Door Skin (Black)
11	Handle, Door (Stainless Steel)
11	Handle, Door (Black)
12	WP308544 Whirlpool Screw
13	Door Spacer, Bottom
14	BRACE, DOOR CORNER
15	WP8281250 Whirlpool Refrigerator Screw
15	W10851443 Whirlpool Refrigerator Screw
16	Filler, Door
17	2005433 Whirlpool Refrigerator Spacer
18	Spacer, Hinge Side
19	WP2257333 Whirlpool Spacer
20	Panel, Interior Door
21	Ladder, Shelf (2)
22	Retainer, Shelf Ladder (2)
23	Back Up Plate (8)
24	W11624204 Whirlpool Screw
25	Bin, Utility
26	Door, Utility Bin
27	Door Shelf (3)
28	Butter Tray
30	Spacer, Handle Side
32	Shelf, Gallon Door
