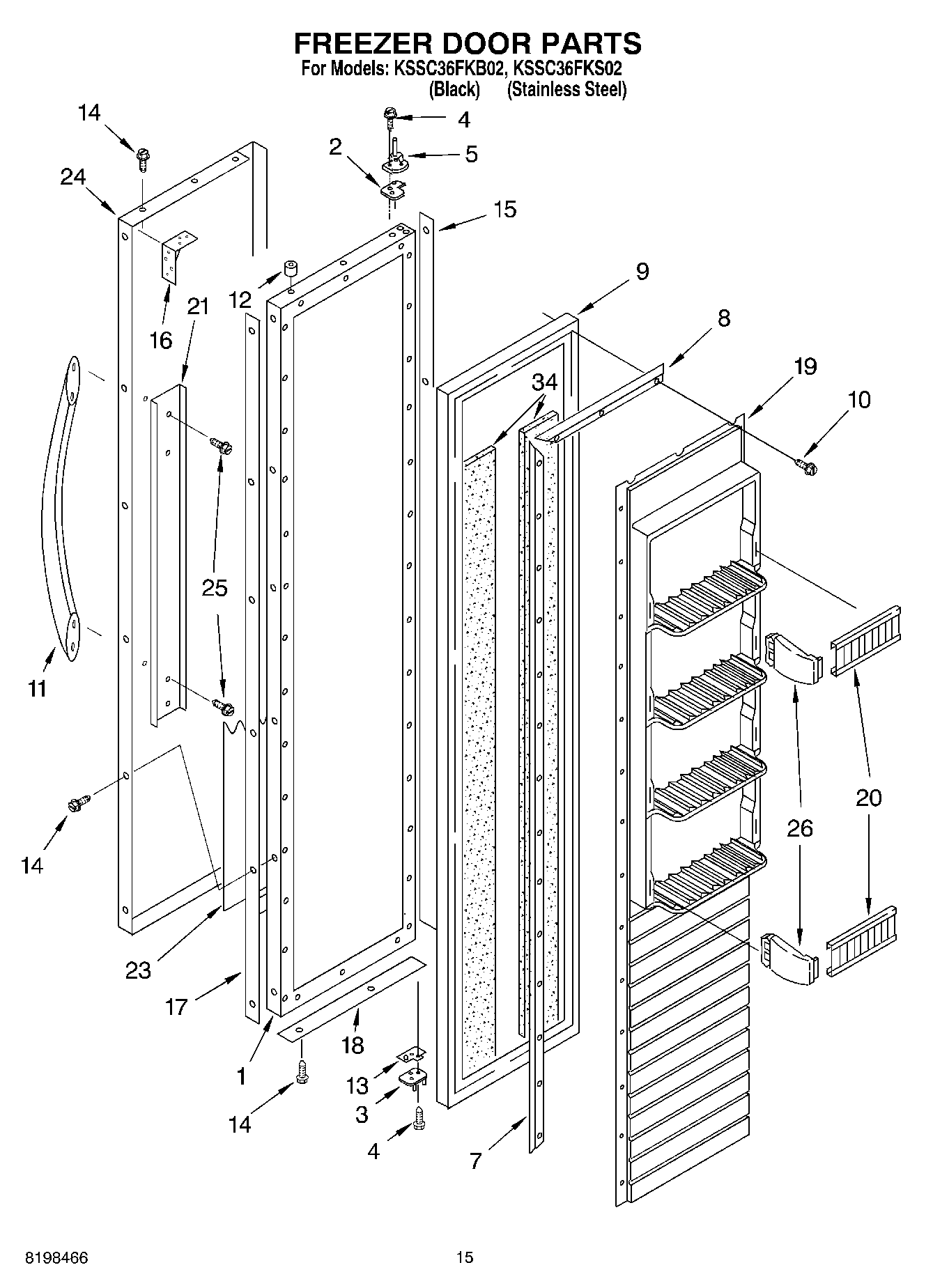

KSSC36FKB02 10 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door Panel (Includes Insulation)
2	Spacer-Hinge, Top
3	HINGE-DOOR
4	W11474472 Whirlpool Screw
5	W11724512 Whirlpool Door Hinge
7	Gasket Retainer, Side (2)
8	Gasket Retainer, Top & Bottom
9	Door Gasket, Magnetic
10	W11624204 Whirlpool Screw
11	Handle, Door (Black)
11	Handle, Door (Stainless Steel)
12	2005433 Whirlpool Refrigerator Spacer
13	Door Spacer, Bottom
14	W10851443 Whirlpool Refrigerator Screw
14	WP8281250 Whirlpool Refrigerator Screw
15	Spacer, Hinge Side
16	BRACE, DOOR CORNER
17	Spacer, Handle Side
18	Spacer, Door Skin Bottom
19	Interior Door Panel
20	Foot, Front (Black-Right)
21	Plate, Handle
23	Filler, Door
24	Door Skin (Stainless Steel)
24	Door Skin (Black)
25	WP308544 Whirlpool Screw
26	Trim, Endcap (Left Side)
26	Trim, End Cap (Right Side)
34	Seal
