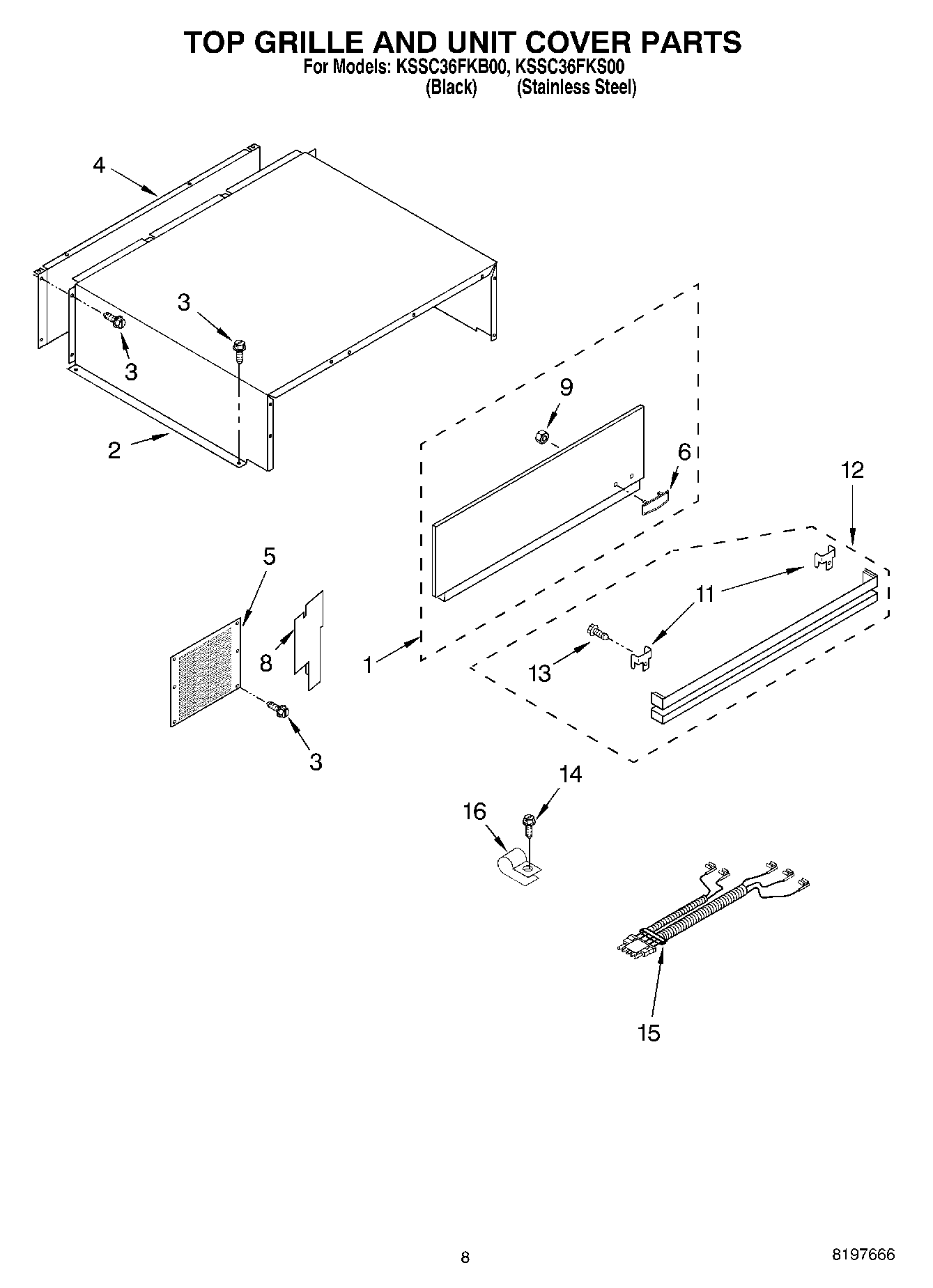

KSSC36FKS00 06 – TOP GRILLE AND UNIT COVER

KSSC36FKS00 06 – TOP GRILLE AND UNIT COVER

Written by

in

KSSC36FKS00 06 – TOP GRILLE AND UNIT COVER

Products

PositionProduct
1Top Grille Assembly (Black)
1Top Grille Assembly (Stainless Steel)
2Cover, Unit
3W11624204 Whirlpool Screw
42256466 Whirlpool Refrigerator Unit Cover
5Guard, Wiring
6Nameplate (Black)
8Baffle-Air, Condenser
9WP2004333 Whirlpool Refrigerator Nut
11Louver, Bracket
12Grille, Louver (Stainless Steel)
12Grille, Louver (Black)
13303776 Whirlpool Dishwasher Screw
14WP489069 Whirlpool Compactor Screw
15Wire Assembly, RC/FC Light Switch
16489348 Whirlpool Refrigerator Tube Clamp
