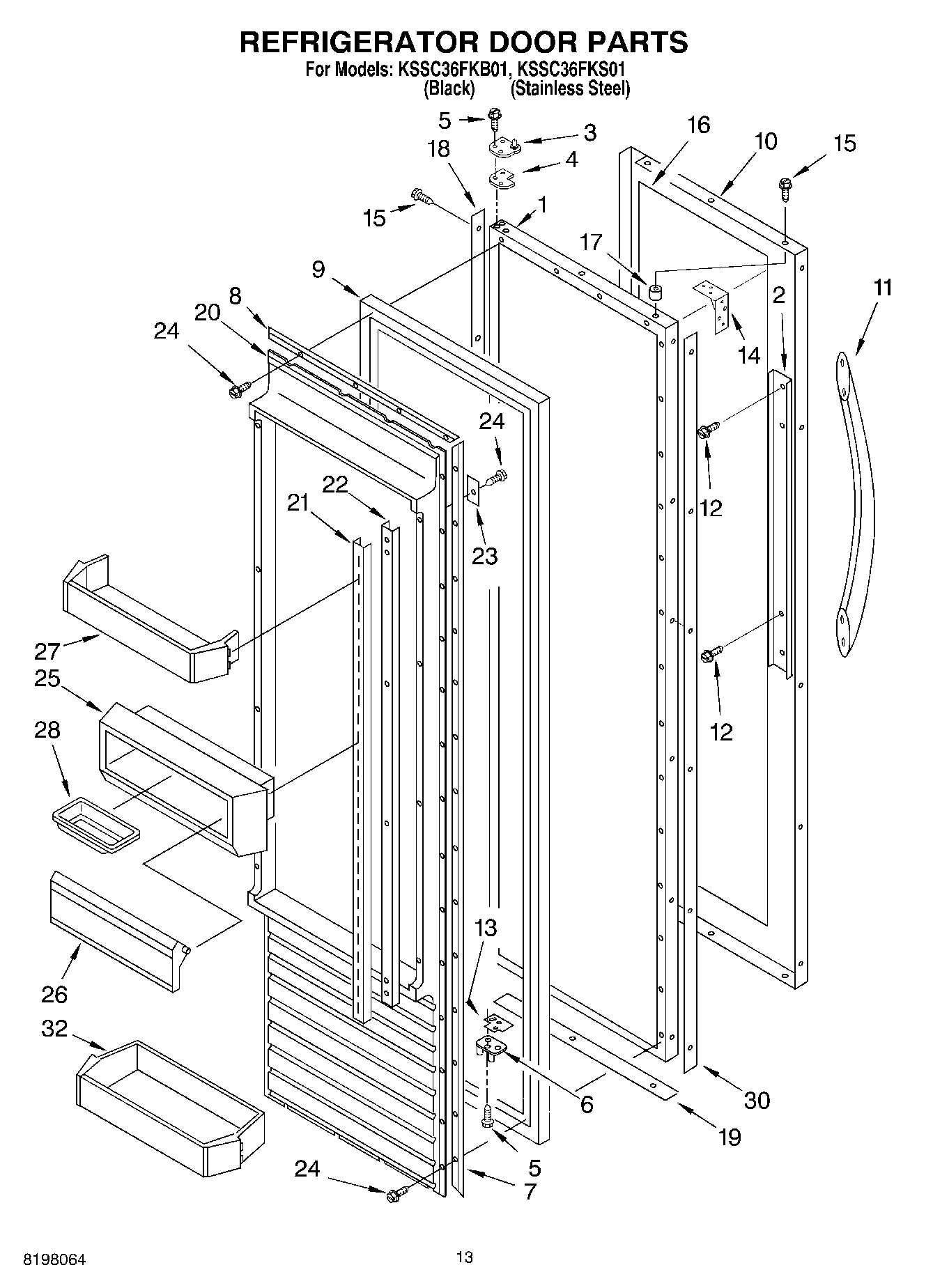

KSSC36FKS01 09 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door Panel
2	Plate, Handle
3	Hinge, Top
4	Spacer-Hinge, Top
5	W11474472 Whirlpool Screw
6	Hinge Assembly, Bottom
7	Gasket Retainer, Side (2)
8	Gasket Retainer, Top & Bottom
9	Door Gasket, Magnetic
10	Door Skin (Black)
10	Door Skin (Stainless Steel)
11	Handle, Door (Stainless Steel)
11	Handle, Door (Black)
12	WP308544 Whirlpool Screw
13	Door, Spacer
14	Door Brace, Corner
15	W10851443 Whirlpool Refrigerator Screw
15	WP8281250 Whirlpool Refrigerator Screw
16	Filler, Door
17	2005433 Whirlpool Refrigerator Spacer
18	Spacer, Hinge Side
19	WP2257333 Whirlpool Spacer
20	Panel, Interior Door
21	Ladder, Shelf (2)
22	Retainer, Shelf Ladder (2)
23	Back Up Plate (8)
24	W11624204 Whirlpool Screw
25	Bin, Utility
26	Door, Utility Bin
27	Door Shelf (3)
28	Butter Tray
30	Spacer, Handle Side
32	Shelf, Gallon Door
