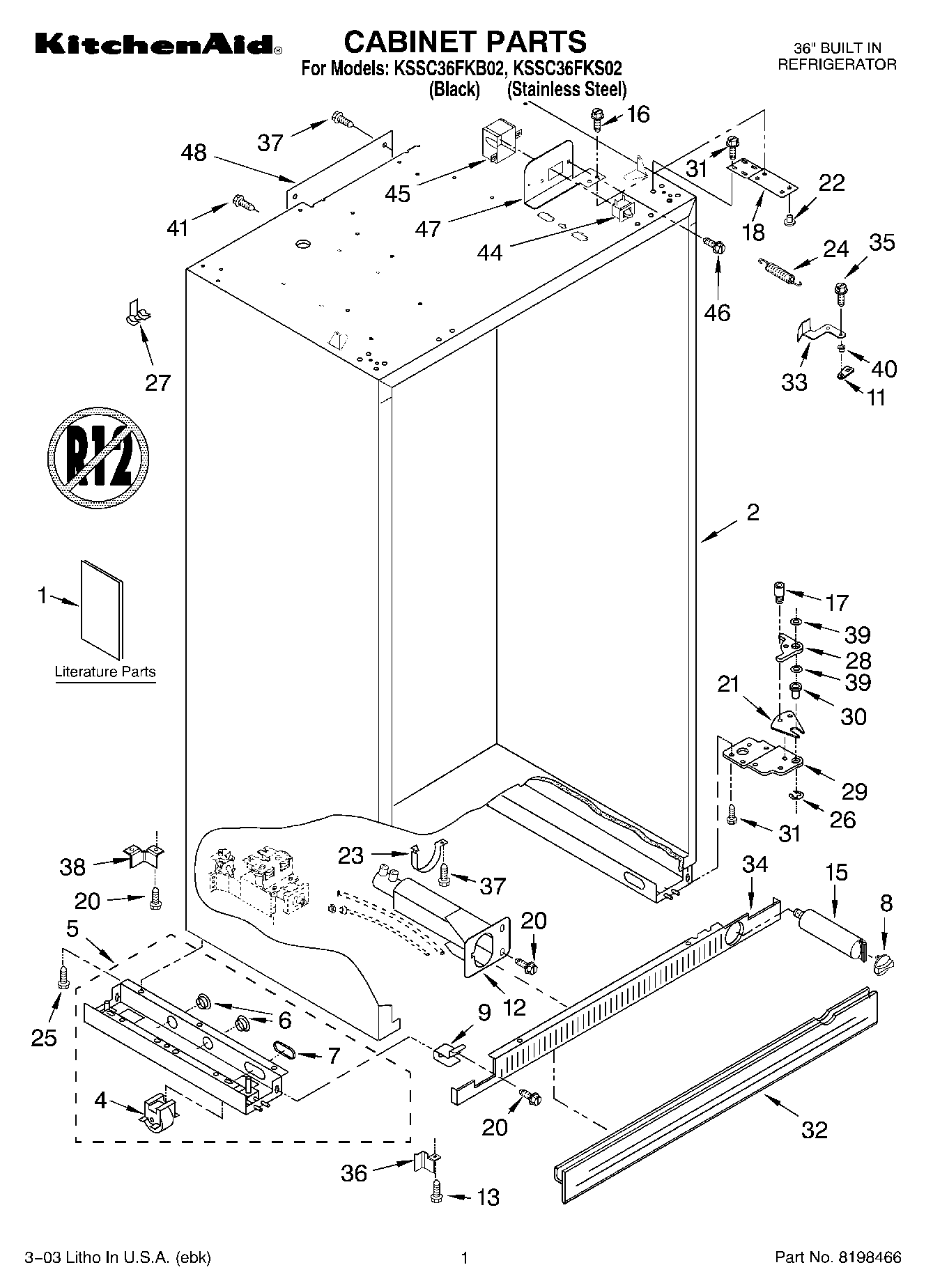

KSSC36FKS02 01 – CABINET PARTS

Products

Position	Product
1	Literature Parts (Installation Instructions)
1	Modular Icemaker Service Sheet
1	Literature Parts (Energy Label)
1	Literature Parts (Use & Care Guide)
1	Literature Parts (Service & Wiring Sheet)
2	Cabinet (Not A Serviceable Part)
4	WPW10138054 Whirlpool Refrigerator Cabinet Roller
5	W10860229 Whirlpool Refrigerator Support
5	W10860448 Whirlpool Refrigerator Support
6	Grommet, Wiring
7	Grommet, Flexible
8	WP2186494B Whirlpool Refrigerator Filter Cap
9	Mounting Bracket, Grill
11	Cam-Closer, Door
12	WP2209022 Whirlpool Refrigerator Housing
13	WP489128 Whirlpool Refrigerator Screw
15	EDR5RXD1 Whirlpool Refrigerator Ice and Water Filter 5 (Pink)
16	WP489399 Whirlpool Refrigerator Screw
17	WP2005378 Whirlpool Refrigerator Screw
18	2257644 Whirlpool Refrigerator Door Hinge
20	WP489464 Whirlpool Refrigerator Screw
21	WP2004994 Whirlpool Refrigerator Hinge Bushing
22	Bushing
23	Clamp, Filter Housing
24	WP2004517 Whirlpool Refrigerator Spring
25	W11624204 Whirlpool Screw
26	WP489236 Whirlpool Refrigerator Ring
27	Fastener (3)
28	Gap, Cover Assembly (Bottom)
29	W10527053 Whirlpool Refrigerator Door Hinge
29	WP2006780 Whirlpool Refrigerator Door Hinge
30	WP2302876 Whirlpool Refrigerator Hinge Bushing
31	W11189635 Whirlpool Refrigerator Screw
32	WP2209024B Whirlpool Refrigerator Front Grille
33	WPW10121046 Whirlpool Refrigerator Extension
33	WP2307857 Whirlpool Refrigerator Extension
34	Grille Bottom, Front
35	Screw
36	2006616 Whirlpool Refrigerator Bracket
36	2006556 Whirlpool Refrigerator Bracket
37	WP489069 Whirlpool Compactor Screw
38	2006617 Whirlpool Refrigerator Bracket
39	WP2006346 Whirlpool Refrigerator Washer
40	WP2316859 Whirlpool Refrigerator Bushing
41	WP1163283 Whirlpool Air Conditioner Screw
44	W11457217 Whirlpool Refrigerator Rocker Switch Combination
44	W11384469 Whirlpool Door Switch
45	2215938 Whirlpool Refrigerator Switch Cover
46	WP965173 Whirlpool Dishwasher Screw
47	2221096 Whirlpool Refrigerator Bracket
47	2221097 Whirlpool Refrigerator Bracket
48	WPL 2209449
