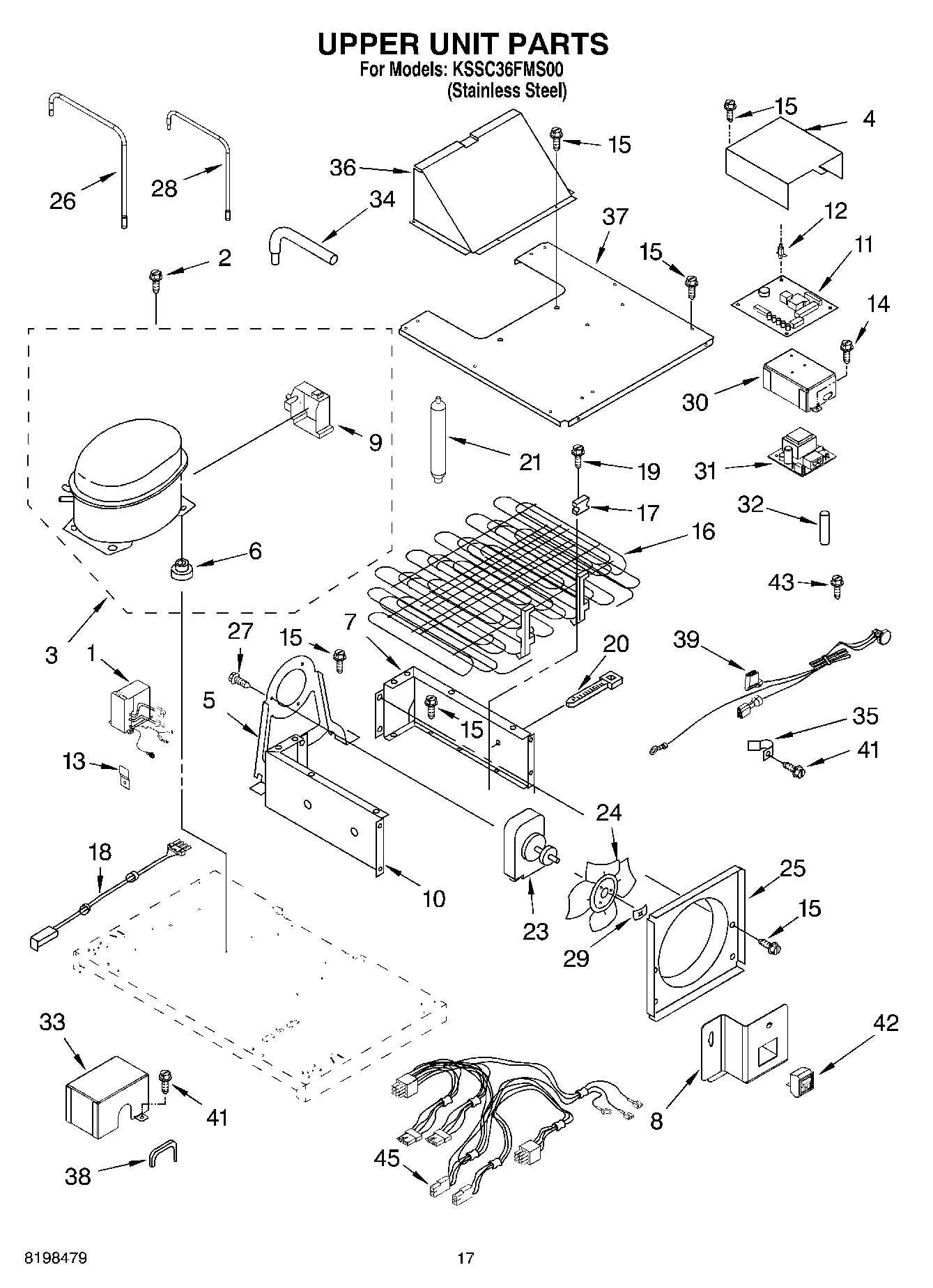

KSSC36FMS00 11 – UPPER UNIT PARTS

KSSC36FMS00 11 – UPPER UNIT PARTS

Written by

in

KSSC36FMS00 11 – UPPER UNIT PARTS

Products

Position	Product
1	W10629033 Whirlpool Refrigerator Inverter Control Box
3	W10841139 Whirlpool Refrigerator Compressor
4	Housing, Control Board
5	Bracket, Fan Motor
6	876811 Whirlpool Grommet
7	Shroud, Condenser (Right)
8	Bracket, Switch
9	2215676 Whirlpool Refrigerator Terminal Cover
10	Shroud, Condenser (Left)
11	W10823805-includeCORE Whirlpool W10823805 Refrigerator Control Board + Core
12	WP2203075 Whirlpool Refrigerator Spacer
13	2256328 Whirlpool Bracket Assembly
15	WP489069 Whirlpool Compactor Screw
16	CONDENSER
17	Grommet (4)
18	Wire, Jumper
19	Screw
20	WPW10339879 Whirlpool Wire Tie
21	W10843121 Whirlpool Refrigerator Tube
23	MOTOR-COND/INCL BLADE&BRKT
24	Blade, Fan
25	Orifice, Fan
26	Tube, Drier Transition
27	8281160 Whirlpool Screw
28	Tube, Heat Loop Transition
29	WP486692 Whirlpool Refrigerator Nut
30	Housing, Power Supply
31	WP2259350 Whirlpool Refrigerator Electronic Control Board
32	Sleeve, Condenser
33	Cover, Electrical
34	W10528578 Whirlpool Refrigerator Tube
35	549193 Whirlpool Refrigerator Power Clamp
36	Cover, Fan
37	Cover, Condenser
38	GROMMET
39	Service Cord
41	W11624204 Whirlpool Screw
42	WP2266802 Whirlpool Refrigerator Switch
43	WP489128 Whirlpool Refrigerator Screw
45	and Optional Parts Not Included
45	FOLLOWING PARTS NOT ILLUSTRATED
45	Wiring Harness, Unit Compartment
45	WP978025 Whirlpool Refrigerator Valve
45	876764 Whirlpool Refrigerator Primary Valve
45	VALVE, ACCESS (5/8“)
45	978026 Whirlpool Refrigerator Primary Valve
45	978027 Whirlpool Refrigerator Primary Valve
45	978030 Whirlpool Refrigerator Valve
45	VALVE, ACCESS (1/2“)
45	REFRIGERANT CHARGE 7.75 oz. (R-134A)
