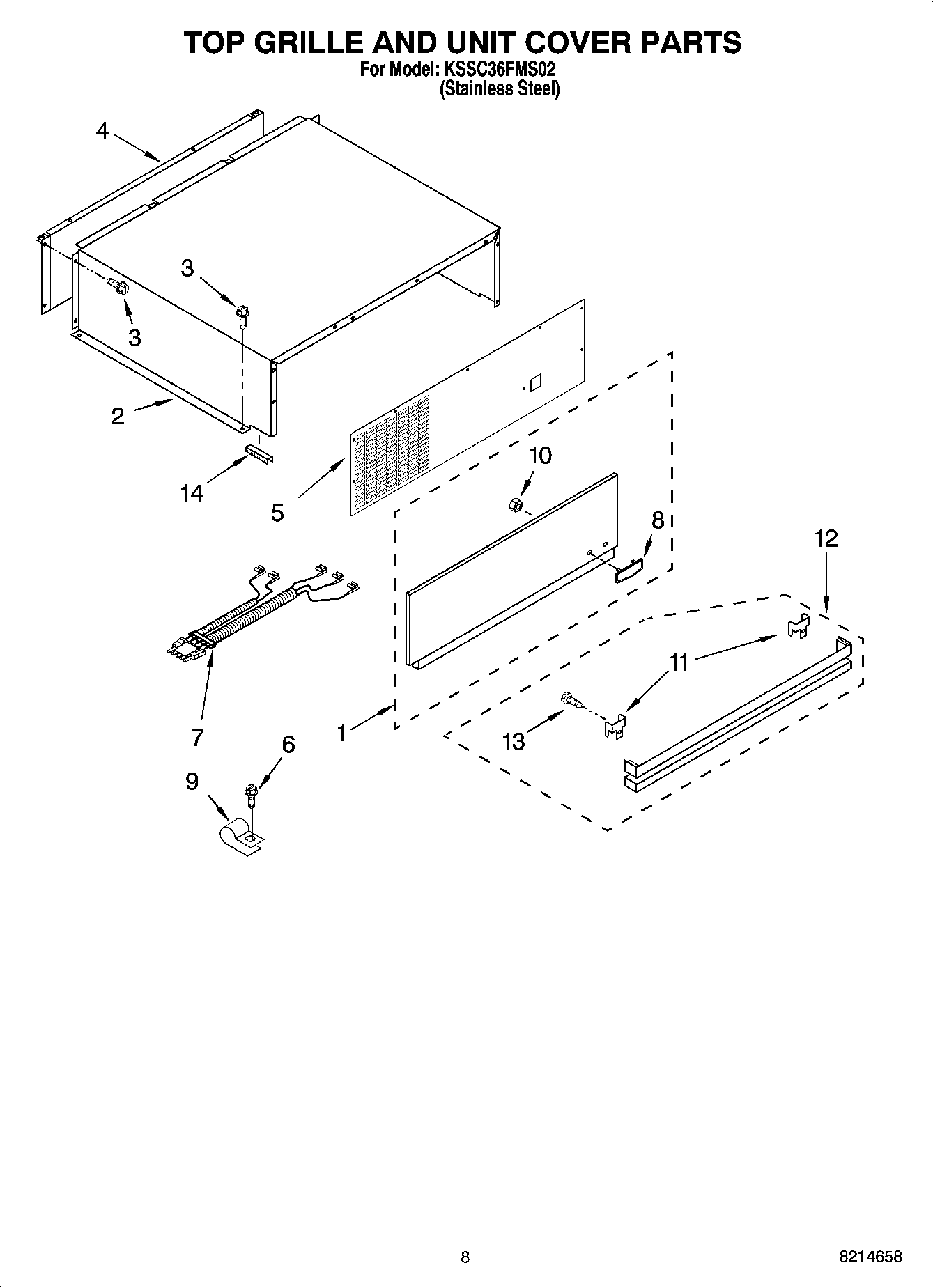

KSSC36FMS02 06 – TOP GRILLE AND UNIT COVER PARTS

KSSC36FMS02 06 – TOP GRILLE AND UNIT COVER PARTS

Written by

in

KSSC36FMS02 06 – TOP GRILLE AND UNIT COVER PARTS

Products

PositionProduct
1Top Grille Assembly (Stainless Steel)
2Cover, Unit
3W11624204 Whirlpool Screw
42256466 Whirlpool Refrigerator Unit Cover
5Front, Unit Cover
6WP965173 Whirlpool Dishwasher Screw
7Wire Assembly RC/FC Light Switch
8Nameplate (Black)
9489348 Whirlpool Refrigerator Tube Clamp
10WP2004333 Whirlpool Refrigerator Nut
11Bracket, Louver
12Louver, Grille (Stainless Steel)
13303776 Whirlpool Dishwasher Screw
142215910 Whirlpool Refrigerator Grommet
