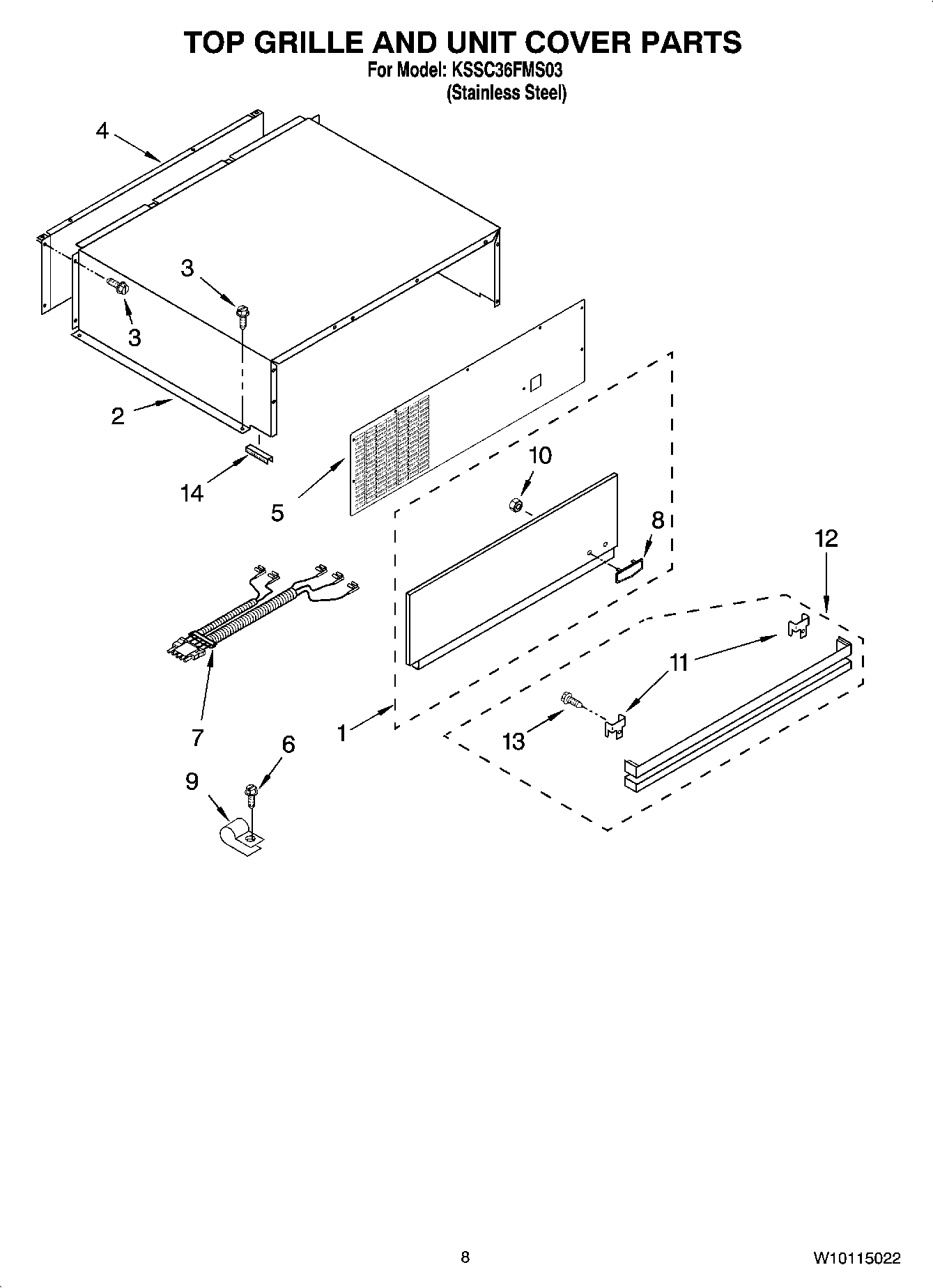

KSSC36FMS03 06 – TOP GRILLE AND UNIT COVER PARTS

KSSC36FMS03 06 – TOP GRILLE AND UNIT COVER PARTS

Written by

in

KSSC36FMS03 06 – TOP GRILLE AND UNIT COVER PARTS

Products

PositionProduct
1Top Grille Assembly (Stainless Steel)
2Cover, Unit
3W11624204 Whirlpool Screw
42256466 Whirlpool Refrigerator Unit Cover
5Cover-Unit, Front
6WP965173 Whirlpool Dishwasher Screw
7WIRE ASSEMBLY RC/FC LIGHT SWITCH
8Nameplate (Black)
9489348 Whirlpool Refrigerator Tube Clamp
10WP2004333 Whirlpool Refrigerator Nut
11Bracket, Louver
12Louver, Grille (Stainless Steel)
13303776 Whirlpool Dishwasher Screw
142215910 Whirlpool Refrigerator Grommet
