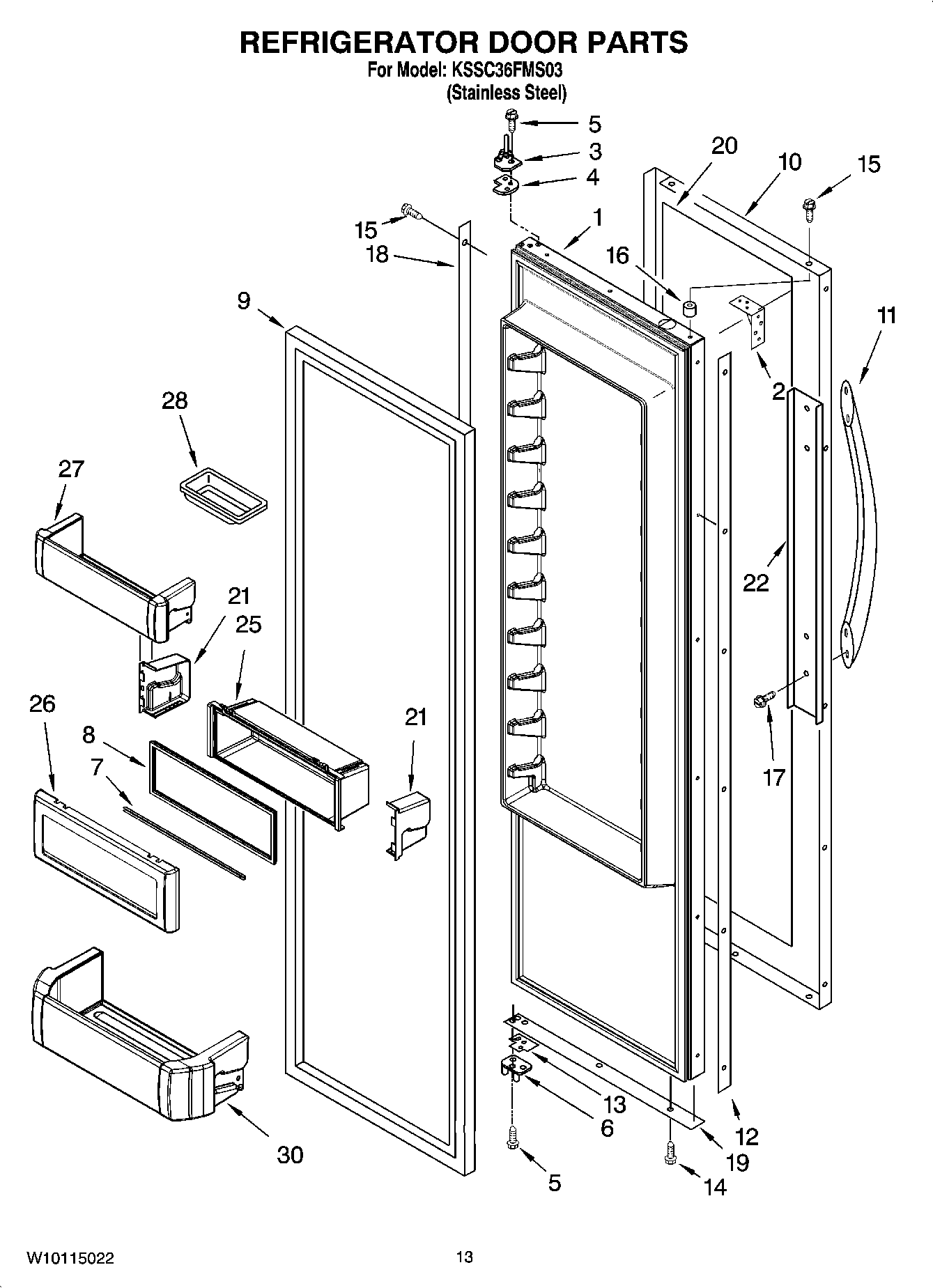

KSSC36FMS03 09 – REFRIGERATOR DOOR PARTS

KSSC36FMS03 09 – REFRIGERATOR DOOR PARTS

Written by

in

KSSC36FMS03 09 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1LW10193489 Whirlpool Refrigerator Black Foam In Place Door
2BRACE, DOOR CORNER
3W11724512 Whirlpool Door Hinge
4Spacer-Hinge, Top
5W11474472 Whirlpool Screw
62302878 Whirlpool Refrigerator Door Hinge
72222795 Whirlpool Refrigerator Rail
8WP2222981 Whirlpool Refrigerator Gasket
9WP2266901 Whirlpool Door Gasket
10Skin, Door (Stainless Steel)
11Handle, Door (Stainless Steel)
12Spacer, Door (Handle Side)
13Door Spacer, Bottom
14W10759522 Whirlpool Screw
15WP8281250 Whirlpool Refrigerator Screw
162005433 Whirlpool Refrigerator Spacer
17WP308544 Whirlpool Screw
18Spacer, Hinge Side
19WP2257333 Whirlpool Spacer
20Filler, Door
21WPW10323173 Whirlpool Refrigerator Retainer End Cap
21WPW10323172 Whirlpool Refrigerator Retainer End Cap
22Plate, Handle
25WPW10323035 Whirlpool Refrigerator Cantilever Bin
26WPW10131132 Whirlpool Refrigerator Door Compressor
27W10323598 Whirlpool Refrigerator Cantilever Bin
28Butter Tray
30W10323746 Whirlpool Refrigerator Cantilever Bin
