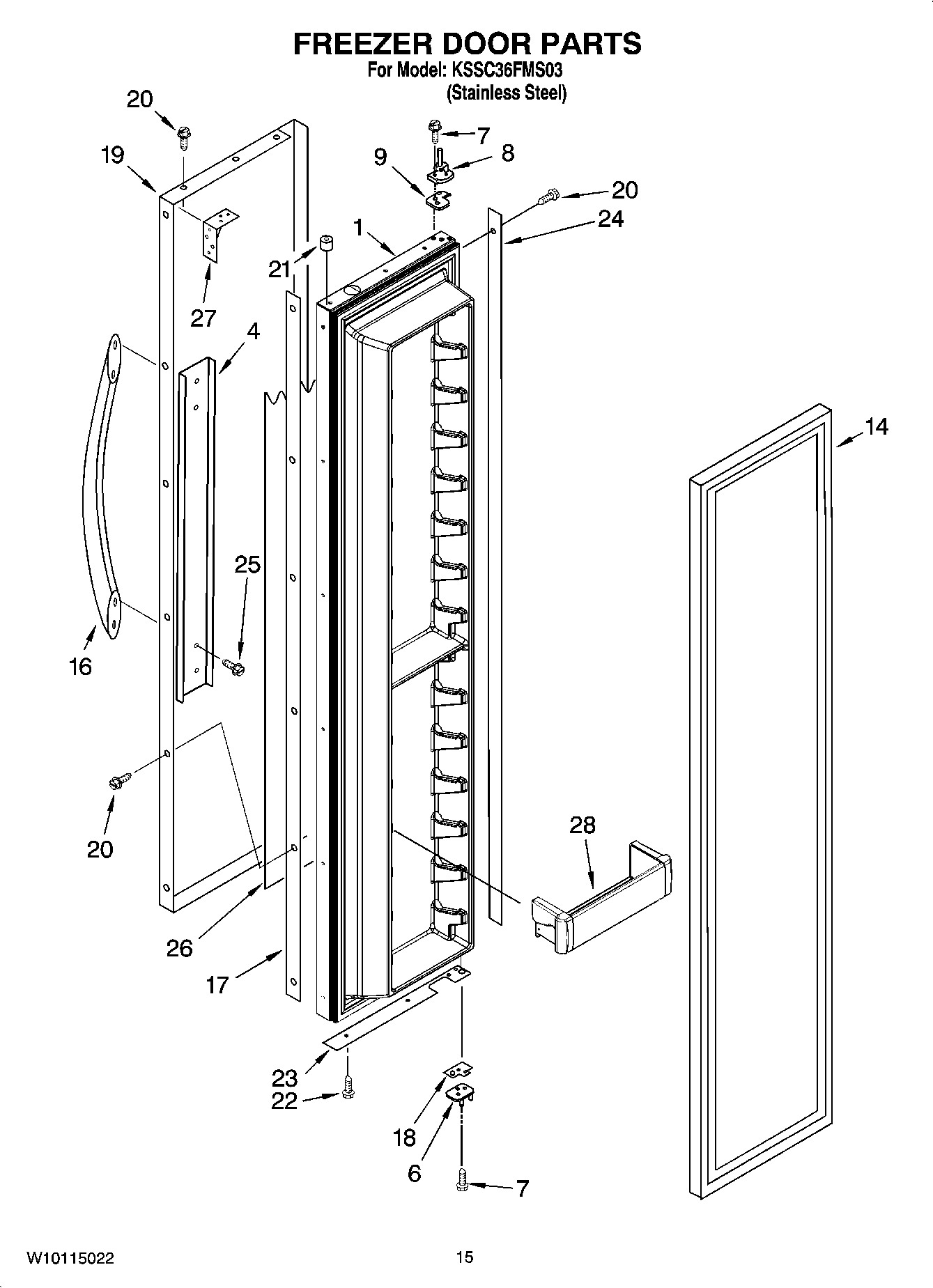

KSSC36FMS03 10 – FREEZER DOOR PARTS

Products

Position	Product
1	LW10193485 Whirlpool Refrigerator FIP Stainless Steel Door
4	Plate, Handle
6	HINGE-DOOR
7	W11474472 Whirlpool Screw
8	W11724512 Whirlpool Door Hinge
9	Spacer-Hinge, Top
14	W11624976 Whirlpool Refrigerator FIP Gasket
16	Handle, Door (Stainless Steel)
17	Spacer, Door-Skin (Handle Side)
18	Door Spacer, Bottom
19	Skin, Door
20	WP8281250 Whirlpool Refrigerator Screw
21	2005433 Whirlpool Refrigerator Spacer
22	W10759522 Whirlpool Screw
23	Spacer, Door Skin Bottom
24	Spacer, Hinge Side
25	WP308544 Whirlpool Screw
26	Filler, Door
27	BRACE, DOOR CORNER
28	W10323601 Whirlpool Refrigerator Cantilever Bin
