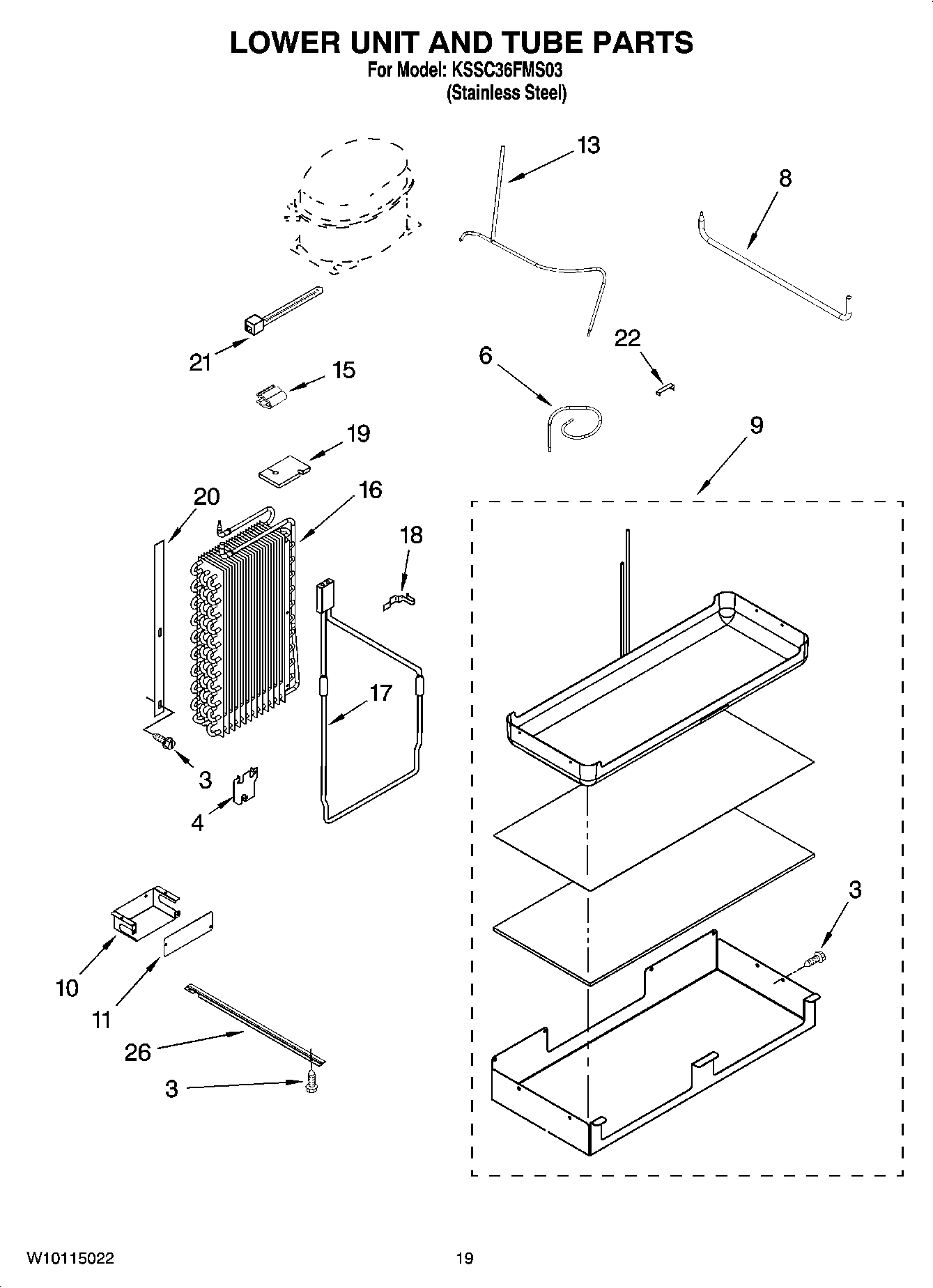

KSSC36FMS03 12 – LOWER UNIT AND TUBE PARTS

KSSC36FMS03 12 – LOWER UNIT AND TUBE PARTS

Written by

in

KSSC36FMS03 12 – LOWER UNIT AND TUBE PARTS

Products

PositionProduct
3W11624204 Whirlpool Screw
4Bracket
6Suction Tube
8Tube, Transition (Drier/Restrictor)
9WPW10281063 Whirlpool Refrigerator Heater Pan
10Cover, Wiring
11Cover, Box
13Tube, Discharge
159791833 Whirlpool Refrigerator Clip
16WP2306092 Whirlpool Refrigerator Evaporator
17Heater, Defrost
181113048 Whirlpool Refrigerator Clamp
198201798 Whirlpool Refrigerator Fan Block
20Gasket, Evaporator
21Wire Tie
22W10169509 Whirlpool Refrigerator Clip
262320554 Whirlpool Bracket
