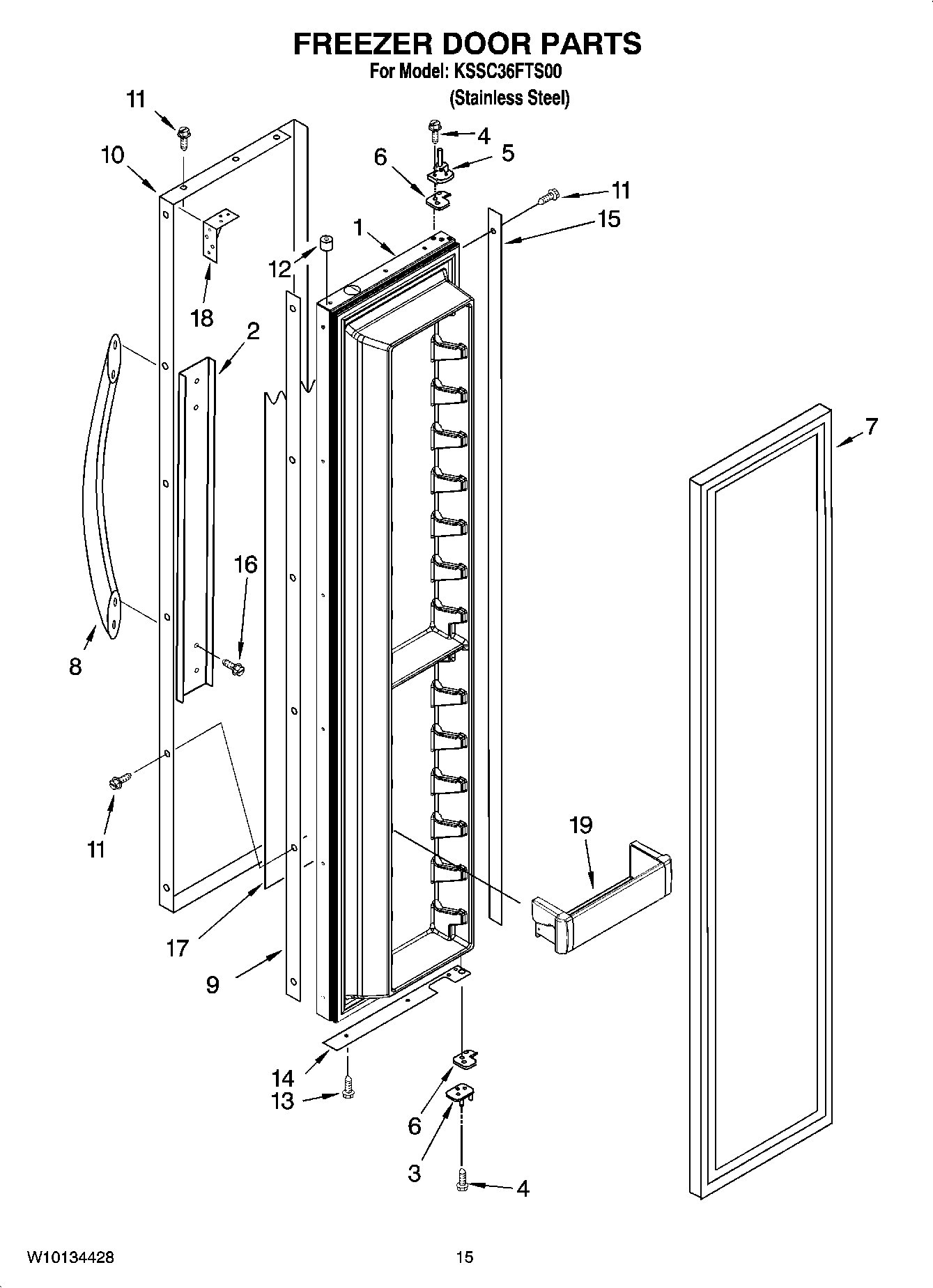

KSSC36FTS00 10 – FREEZER DOOR PARTS

KSSC36FTS00 10 – FREEZER DOOR PARTS

Written by

in

KSSC36FTS00 10 – FREEZER DOOR PARTS

Products

PositionProduct
1LW10193485 Whirlpool Refrigerator FIP Stainless Steel Door
2Plate, Handle
3HINGE-DOOR
4W11474472 Whirlpool Screw
5W11724512 Whirlpool Door Hinge
6W11673500 Whirlpool Door Hinge
7W11624976 Whirlpool Refrigerator FIP Gasket
8WP2316868 Whirlpool Refrigerator Handle
9Spacer, Door-Skin (Handle Side)
10Skin, Door
11WP8281250 Whirlpool Refrigerator Screw
122005433 Whirlpool Refrigerator Spacer
13W10759522 Whirlpool Screw
14Spacer, Door Skin Bottom
15Spacer, Hinge Side
16WP308544 Whirlpool Screw
17Filler, Door
18BRACE, DOOR CORNER
19W10323601 Whirlpool Refrigerator Cantilever Bin
