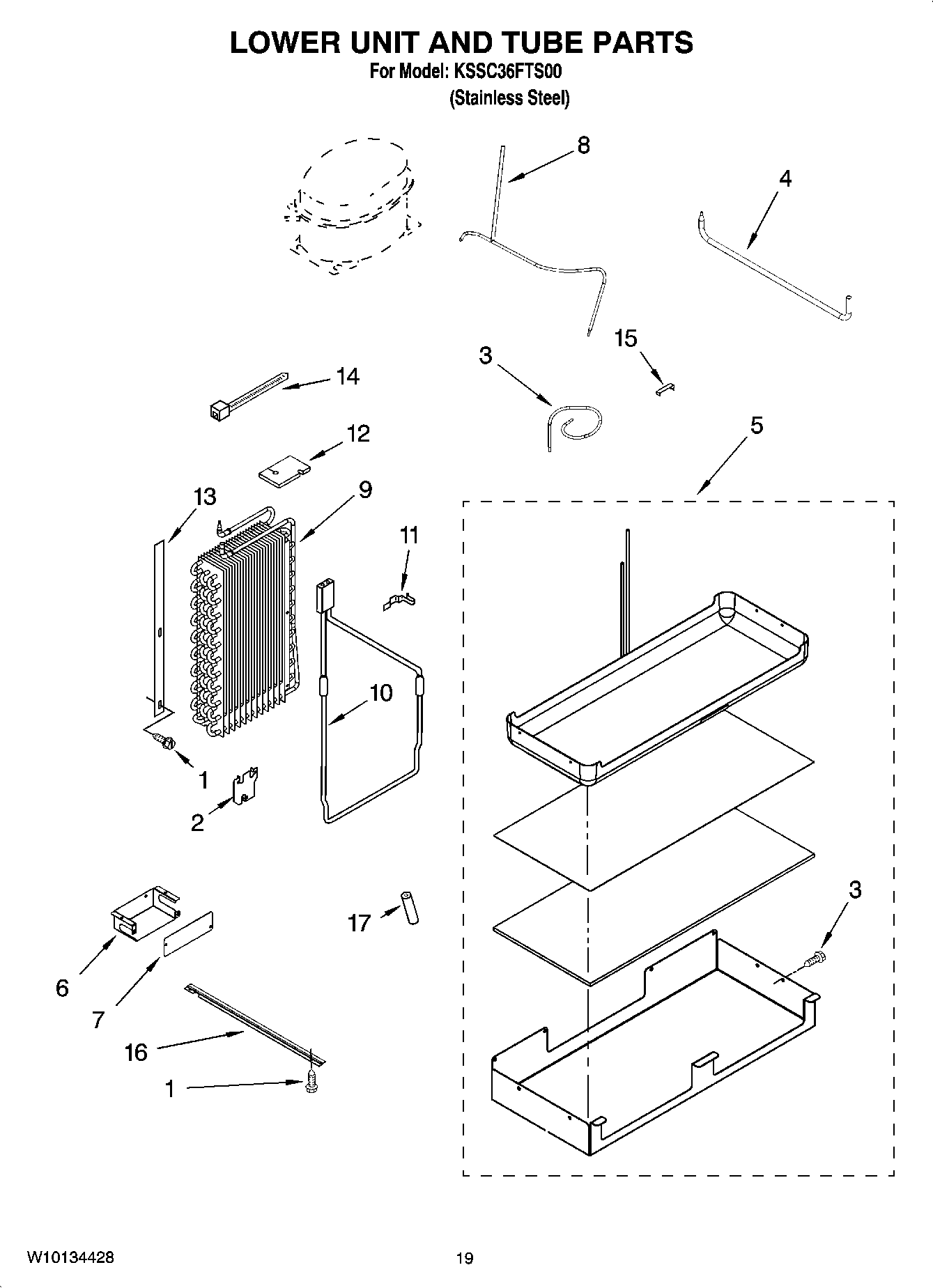

KSSC36FTS00 12 – LOWER UNIT AND TUBE PARTS

KSSC36FTS00 12 – LOWER UNIT AND TUBE PARTS

Written by

in

KSSC36FTS00 12 – LOWER UNIT AND TUBE PARTS

Products

PositionProduct
1W11624204 Whirlpool Screw
2Bracket
3Tube, Suction
4W10388653 Whirlpool Refrigerator Tube
5WPW10281063 Whirlpool Refrigerator Heater Pan
6Cover, Wiring
7Cover, Box
8Tube, Discharge
9WP2306092 Whirlpool Refrigerator Evaporator
10Heater, Defrost
111113048 Whirlpool Refrigerator Clamp
128201798 Whirlpool Refrigerator Fan Block
13Gasket, Evaporator
14Wire Tie
15W10169509 Whirlpool Refrigerator Clip
162320554 Whirlpool Bracket
172215648 Whirlpool Refrigerator Dampener
