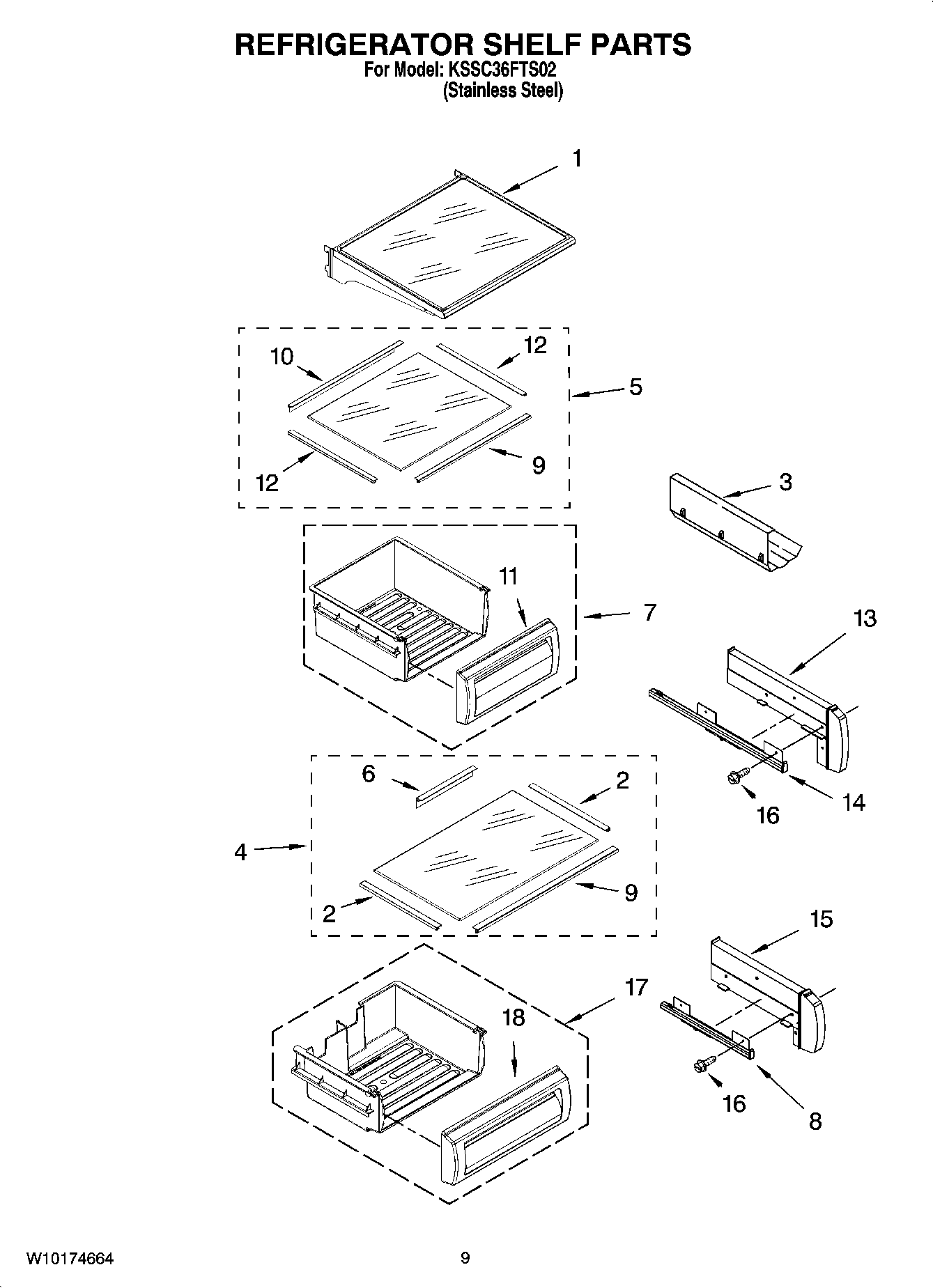

KSSC36FTS02 07 – REFRIGERATOR SHELF PARTS

Written by

Products

Position	Product
1	2222591 Whirlpool Cantilever Shelf
2	2256250 Whirlpool Refrigerator Shelf Trim
3	W10777924 Whirlpool Refrigerator Wine Rack
4	Meat Pan Cover Assembly
5	Crisper Cover Assembly
6	Trim, Glass Rear
7	W10407623 Whirlpool Refrigerator Crisper Pan
8	2302955 Whirlpool Refrigerator Slide
8	2302954 Whirlpool Refrigerator Slide
9	Trim, Glass Front (Not Serviceable)
10	Trim, Glass Rear
11	WP2256247 Whirlpool Front Pan
12	Trim, Glass Side
13	2256223 Whirlpool Refrigerator Track
13	2256222 Whirlpool Refrigerator Track
14	2302956 Whirlpool Refrigerator Slide
14	2302957 Whirlpool Refrigerator Slide
15	2256244 Whirlpool Refrigerator Track
15	2256243 Whirlpool Refrigerator Track
16	WP3400886 Whirlpool Refrigerator Screw
17	W10407626 Whirlpool Refrigerator Meat Pan
18	WP2256365 Whirlpool Refrigerator Front Pan
