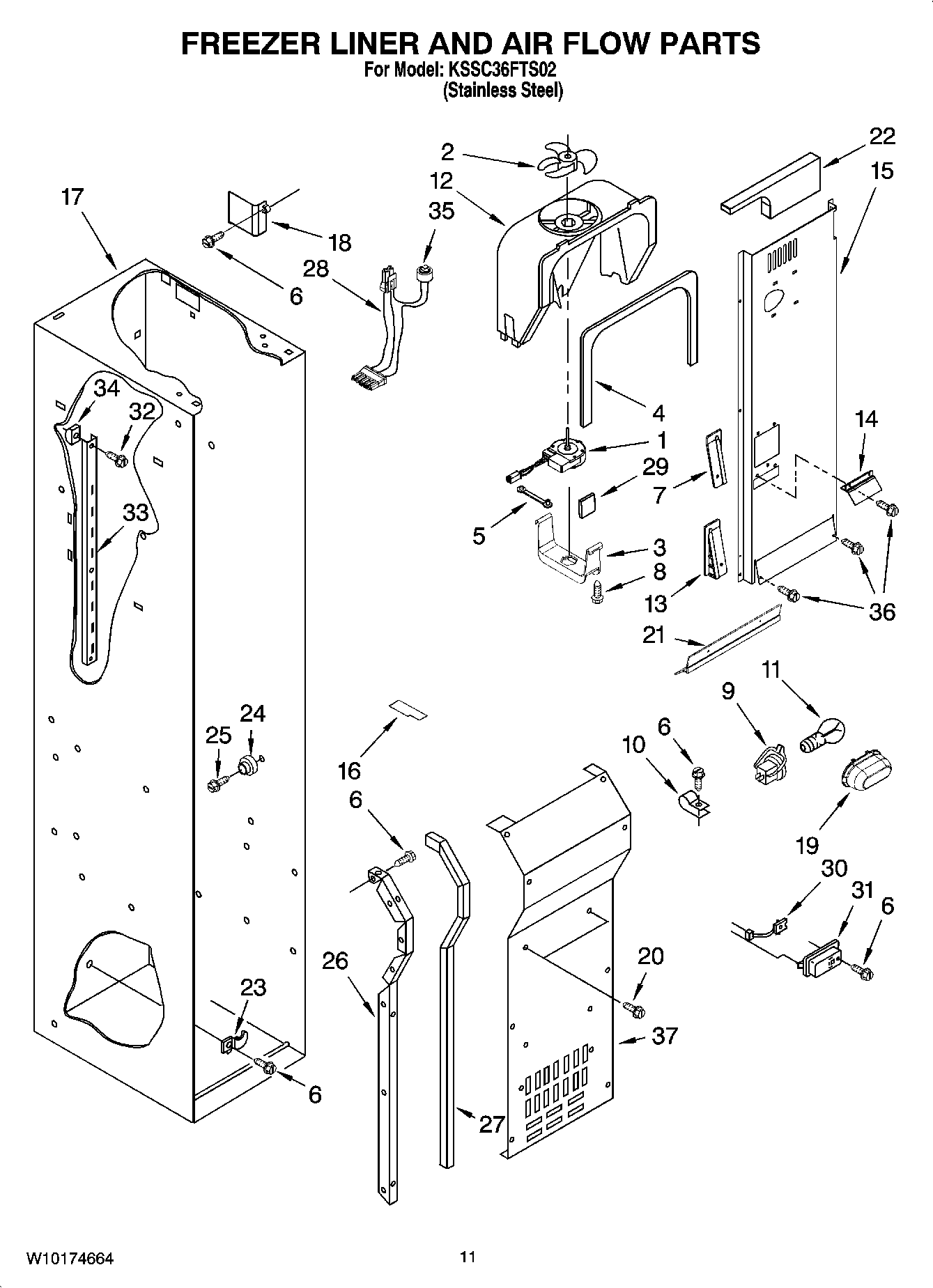

KSSC36FTS02 08 – FREEZER LINER AND AIR FLOW PARTS

Products

Position	Product
1	Motor, Fan
2	WP2169142 Whirlpool Fan Blade
3	8201663 Whirlpool Refrigerator Primary Fan Blade
4	WP2302817 Whirlpool Refrigerator Gasket
5	W11669856 Whirlpool Grommet
6	W11624204 Whirlpool Screw
7	2259464 Whirlpool Refrigerator Wedge
8	WP489128 Whirlpool Refrigerator Screw
9	WPW10191429 Whirlpool Refrigerator Socket
10	Clamp, Tube
11	WPA3073101 Whirlpool Light Bulb
12	W11254898 Whirlpool Refrigerator Scroll Fan
13	2259465 Whirlpool Refrigerator Wedge
14	2266801 Whirlpool Refrigerator Deflector
15	Air Duct
16	2209066 Whirlpool Refrigerator Fan Block
16	8201798 Whirlpool Refrigerator Fan Block
17	Liner (Not A Serviceable Part)
18	2259025 Whirlpool Refrigerator Air Cover
19	Light Shield
20	WP8281163 Whirlpool Refrigerator Screw
21	Support, Air Duct
22	Deflector, Air Duct
23	1112260 Whirlpool EV Support
24	WP2196483 Whirlpool Refrigerator Shelf Stud
25	WP3400806 Whirlpool Screw
26	2259355 Whirlpool Refrigerator Evaporator Rail
26	Evaporator, Cover Rail (Left Side)
27	2220904 Whirlpool Refrigerator Gasket
28	W10139189 Whirlpool Refrigerator Wire Harness
29	W11553819 Whirlpool Refrigerator Insulation
30	WP2188820 Whirlpool Refrigerator Thermistor
31	WP2317844 Whirlpool Refrigerator Cover
32	2006475 Whirlpool Refrigerator Screw
33	WP2259032 Whirlpool Ladder
34	Support, Screw
35	WPW10160570 Whirlpool Refrigerator Bimetallic Defrost
36	WPW10142283 Whirlpool Refrigerator Screw
37	Cover, Evaporator
