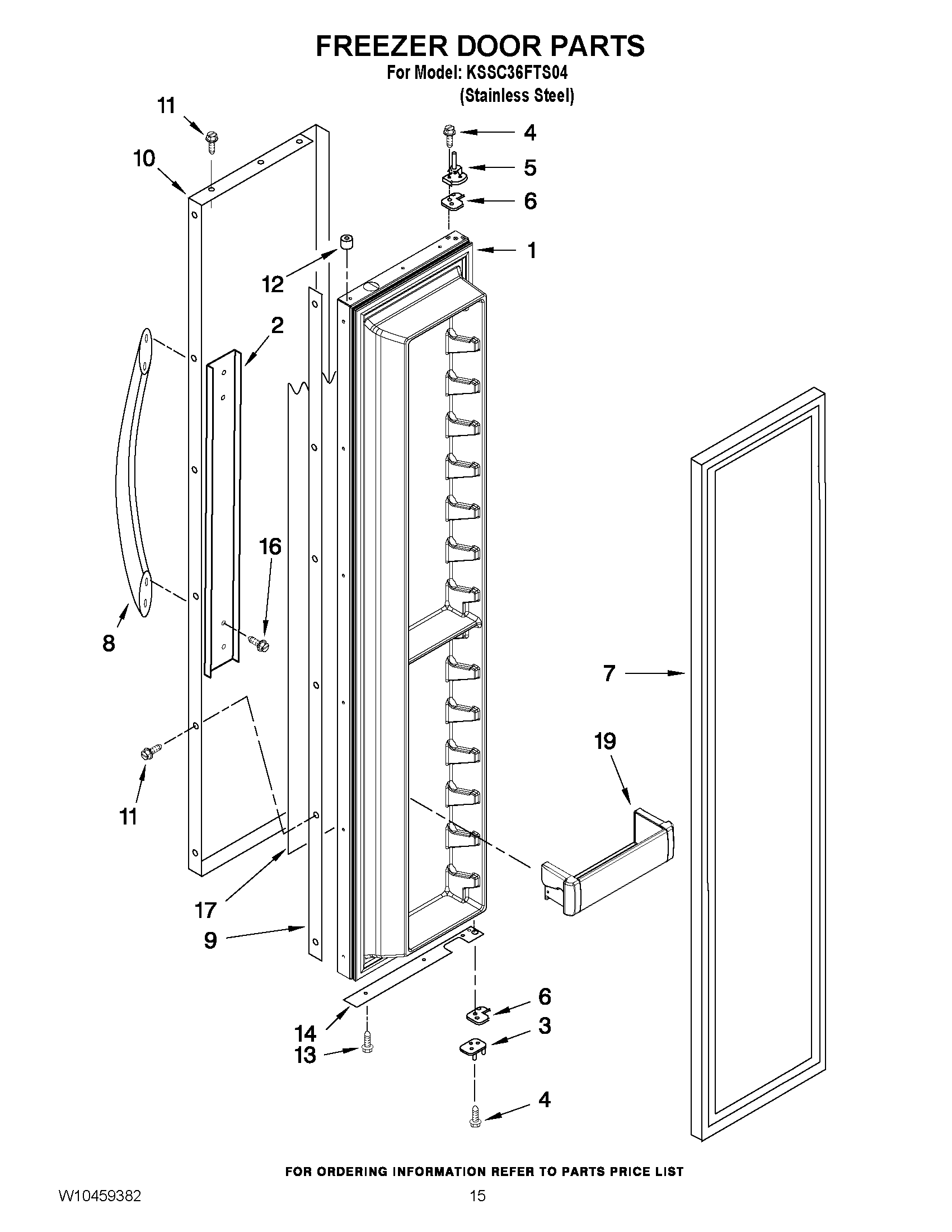

KSSC36FTS04 10 – FREEZER DOOR PARTS

KSSC36FTS04 10 – FREEZER DOOR PARTS

Written by

in

KSSC36FTS04 10 – FREEZER DOOR PARTS

Products

PositionProduct
1LW10193485 Whirlpool Refrigerator FIP Stainless Steel Door
2W10127710 Whirlpool Refrigerator Plate
3HINGE-DOOR
4W11474472 Whirlpool Screw
5W11724512 Whirlpool Door Hinge
6W11673500 Whirlpool Door Hinge
7W11624976 Whirlpool Refrigerator FIP Gasket
8WP2316868 Whirlpool Refrigerator Handle
9Spacer, Door-Skin (Handle Side)
10Skin, Door
11WP8281250 Whirlpool Refrigerator Screw
122005433 Whirlpool Refrigerator Spacer
13W10759522 Whirlpool Screw
14Spacer, Door Skin Bottom
16WP308544 Whirlpool Screw
17Filler, Door
19W10323601 Whirlpool Refrigerator Cantilever Bin
