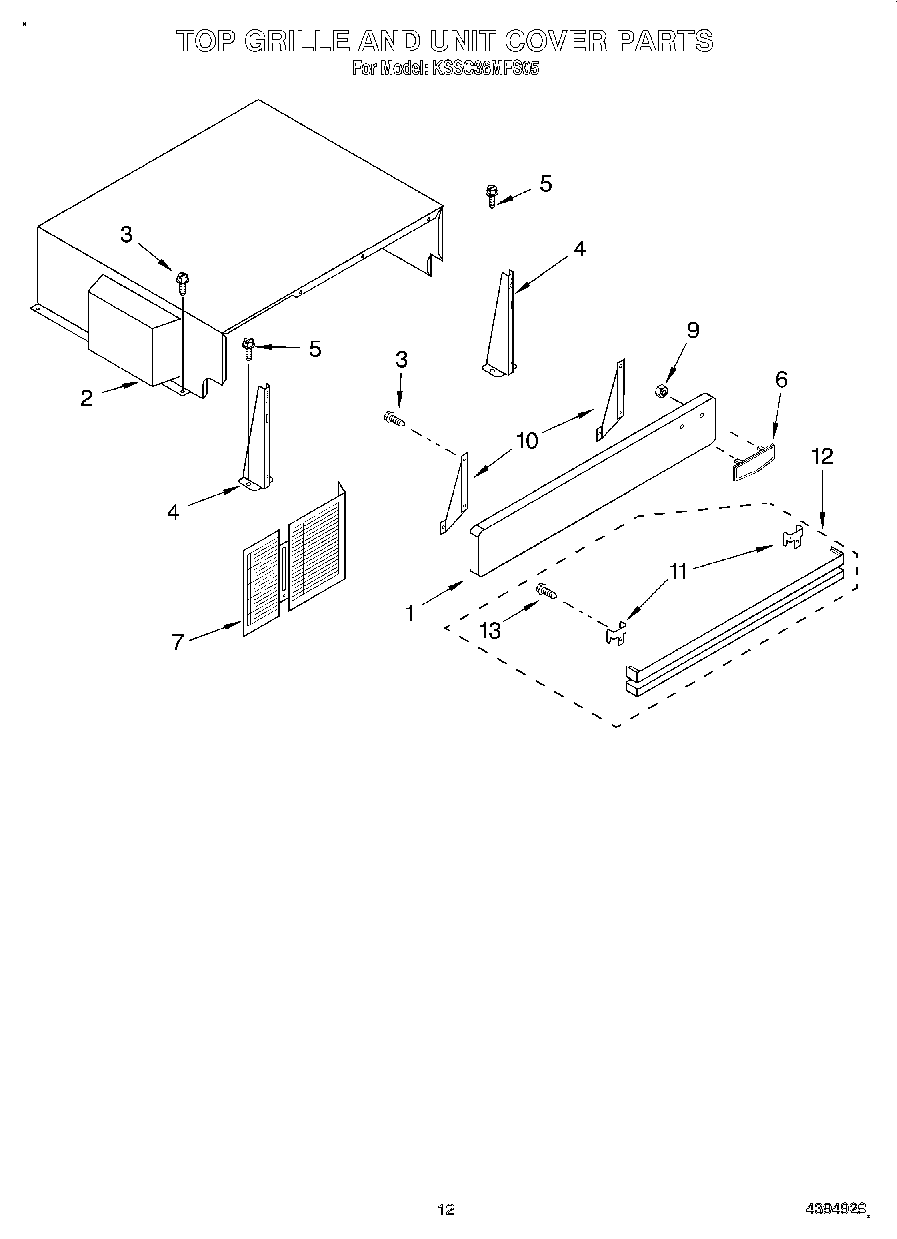

KSSC36MFS05 09 – TOP GRILLE AND UNIT COVER

KSSC36MFS05 09 – TOP GRILLE AND UNIT COVER

Written by

in

KSSC36MFS05 09 – TOP GRILLE AND UNIT COVER

Products

PositionProduct
1Top Grille Assembly
2Cover, Unit
3W11624204 Whirlpool Screw
4Grille, Bracket
5WP8204624 Whirlpool Bolt
6Nameplate (Black)
7Guard, Compressor Wiring
9WP2004333 Whirlpool Refrigerator Nut
10Bracket, Trim Panel
11Louver, Bracket
12Vent, Louver (Stainless Steel)
13WPW10141625 Whirlpool Refrigerator Screw Assembly
