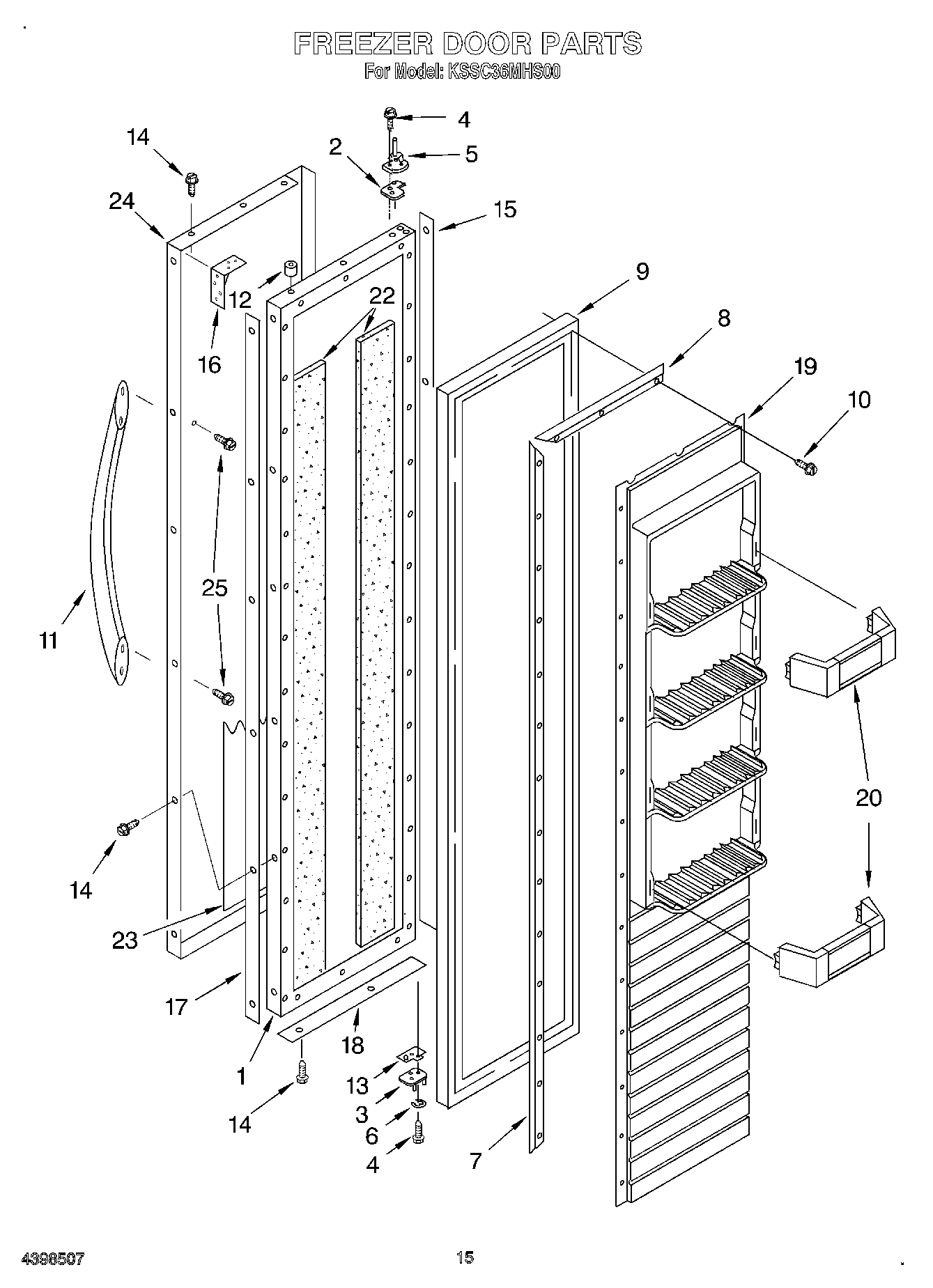

KSSC36MHS00 11 – FREEZER DOOR

Products

Position	Product
1	Freezer Door Panel (Includes Insulation)
2	Spacer-Hinge, Top
3	Hinge, Bottom
4	W11474472 Whirlpool Screw
5	Hinge, Top
6	Retaining Ring, Door-Closure
7	Gasket Retainer, Side (2)
8	Gasket Retainer, Top & Bottom
9	Door Gasket, Magnetic
10	W11624204 Whirlpool Screw
11	Handle, Door (Stainless Steel)
12	2005433 Whirlpool Refrigerator Spacer
13	Door, Spacer
14	WP488729 Whirlpool Refrigerator Door Screw
15	Spacer, Hinge Side
16	Door Brace, Corner
17	Spacer, Handle Side
18	Spacer, Door Skin Bottom
19	Panel, Interior Door
20	Shelf Bin (4)
22	Seal
23	Filler, Door
24	Door Skin
25	WP308544 Whirlpool Screw
