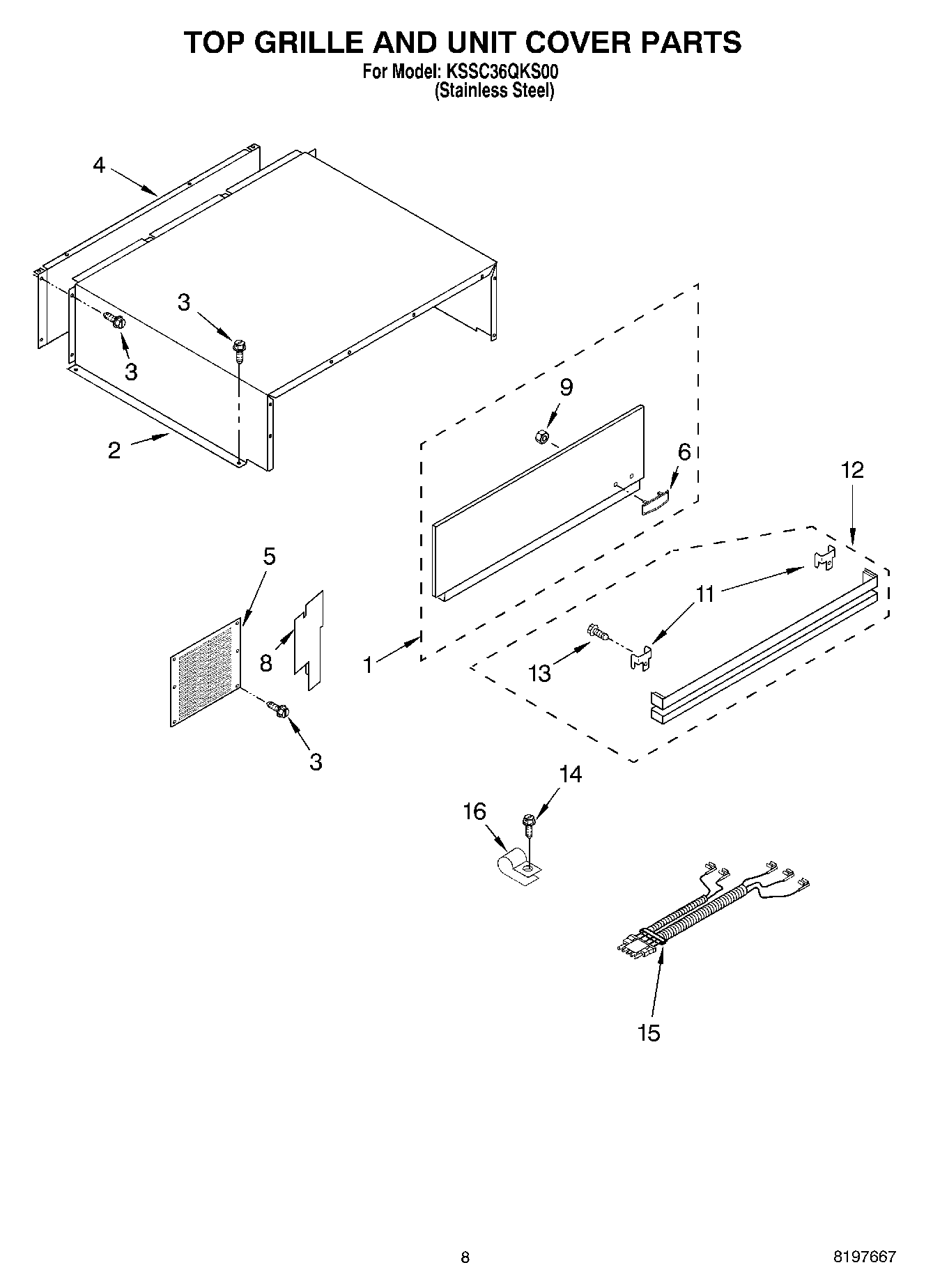

KSSC36QKS00 06 – TOP GRILLE & UNIT COVER

KSSC36QKS00 06 – TOP GRILLE & UNIT COVER

Written by

in

KSSC36QKS00 06 – TOP GRILLE & UNIT COVER

Products

PositionProduct
1Top Grille Assembly (Stainless Steel)
2Cover, Unit
3W11624204 Whirlpool Screw
42256466 Whirlpool Refrigerator Unit Cover
5Guard, Wiring
6Nameplate (Black)
8Baffle-Air, Condenser
9WP2004333 Whirlpool Refrigerator Nut
11Louver, Bracket
12Grille, Louver (Stainless Steel)
13303776 Whirlpool Dishwasher Screw
14WP489069 Whirlpool Compactor Screw
15Wire Assembly, RC/FC Light Switch
16489348 Whirlpool Refrigerator Tube Clamp
