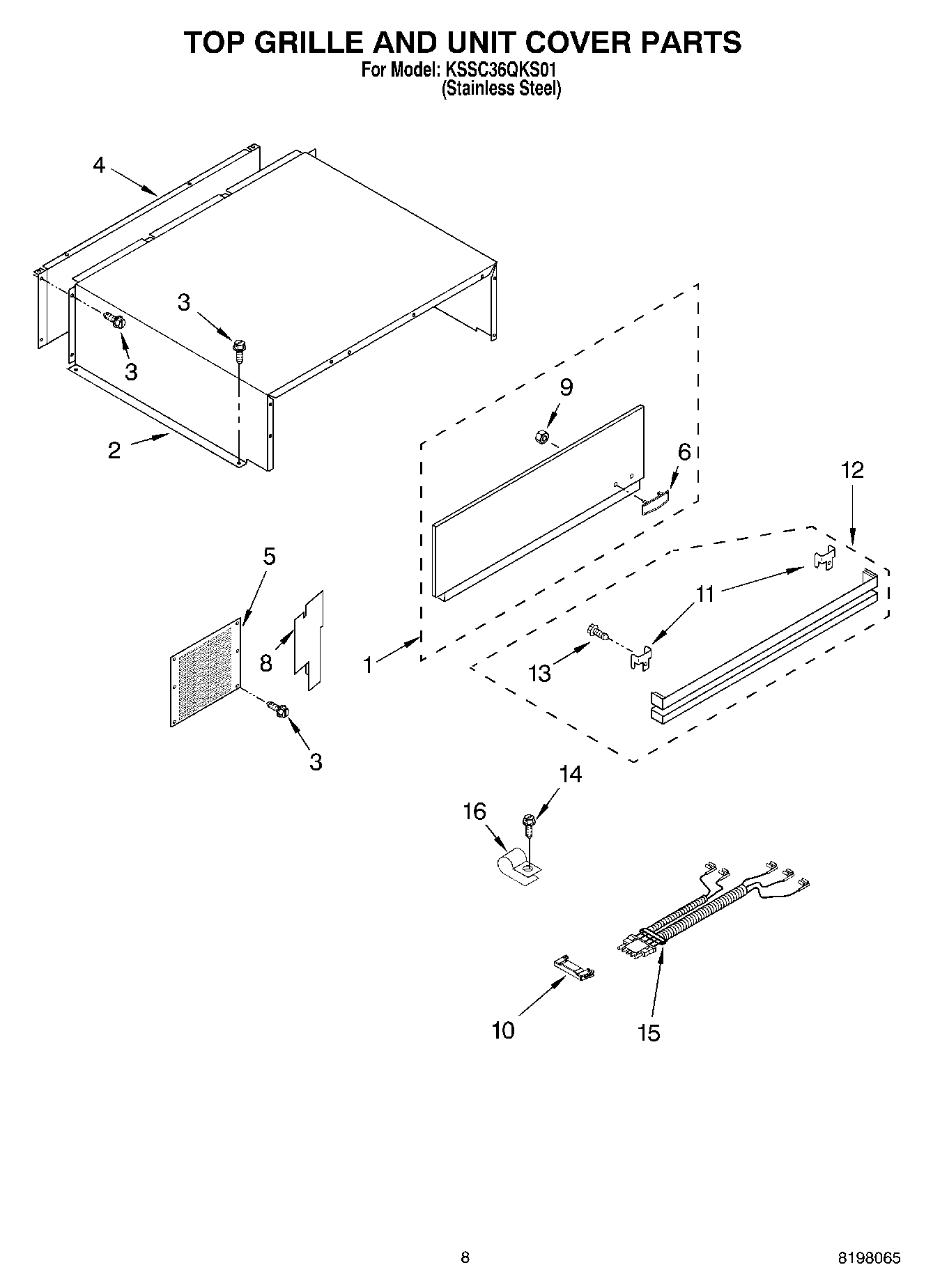

KSSC36QKS01 06 – TOP GRILLE AND UNIT COVER

KSSC36QKS01 06 – TOP GRILLE AND UNIT COVER

Written by

in

KSSC36QKS01 06 – TOP GRILLE AND UNIT COVER

Products

PositionProduct
1Top Grille Assembly (Stainless Steel)
2Cover, Unit
42256466 Whirlpool Refrigerator Unit Cover
5Guard, Wiring
6Nameplate (Black)
8Baffle-Air, Condenser
9WP2004333 Whirlpool Refrigerator Nut
10Enclosure, Connector
11Louver, Bracket
12Grille, Louver (Stainless Steel)
13303776 Whirlpool Dishwasher Screw
14WP965173 Whirlpool Dishwasher Screw
15Wire Assembly RC/FC Light Switch
16489348 Whirlpool Refrigerator Tube Clamp
