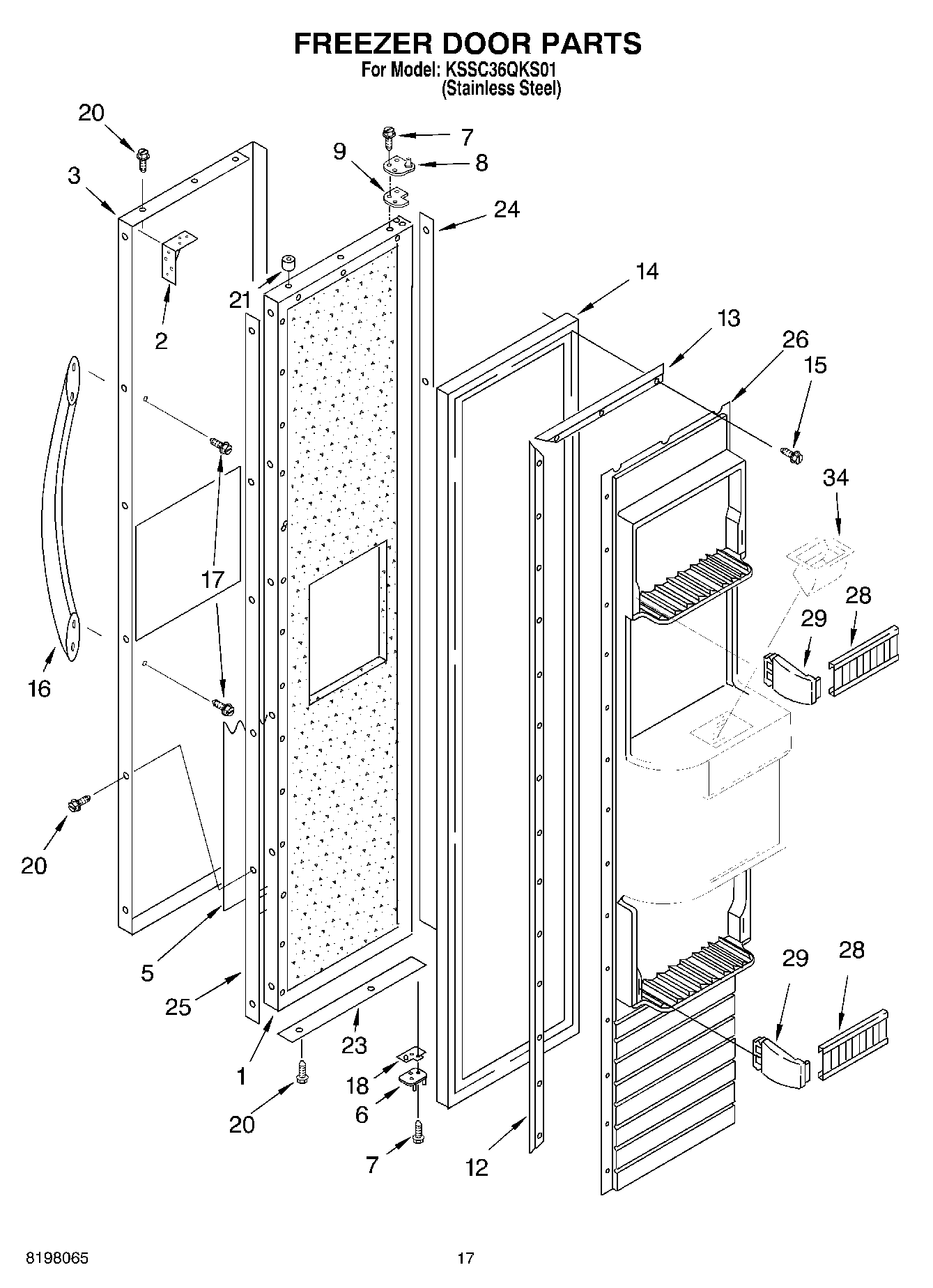

KSSC36QKS01 11 – FREEZER DOOR

KSSC36QKS01 11 – FREEZER DOOR

Written by

in

KSSC36QKS01 11 – FREEZER DOOR

Products

PositionProduct
1Freezer Door Panel (Includes Insulation)
2Door Brace, Corner
3Door Skin
5Filler, Door
6Hinge, Bottom
7W11474472 Whirlpool Screw
8Hinge, Top
9Spacer-Hinge, Top
12Gasket Retainer, Side (2)
13Gasket Retainer, Top & Bottom
14Door Gasket, Magnetic
15W11624204 Whirlpool Screw
16Handle, Door (Stainless Steel)
17WP308544 Whirlpool Screw
18Door, Spacer
20WP8281250 Whirlpool Refrigerator Screw
212005433 Whirlpool Refrigerator Spacer
23Spacer, Door (Bottom)
24Spacer, Hinge Side
25Spacer, Handle Side
26Panel, Interior Door
28Foot, Front (Black-Right)
29Trim, End Cap (Right Side)
29Trim, Endcap (Left Side)
34Ice Chute
