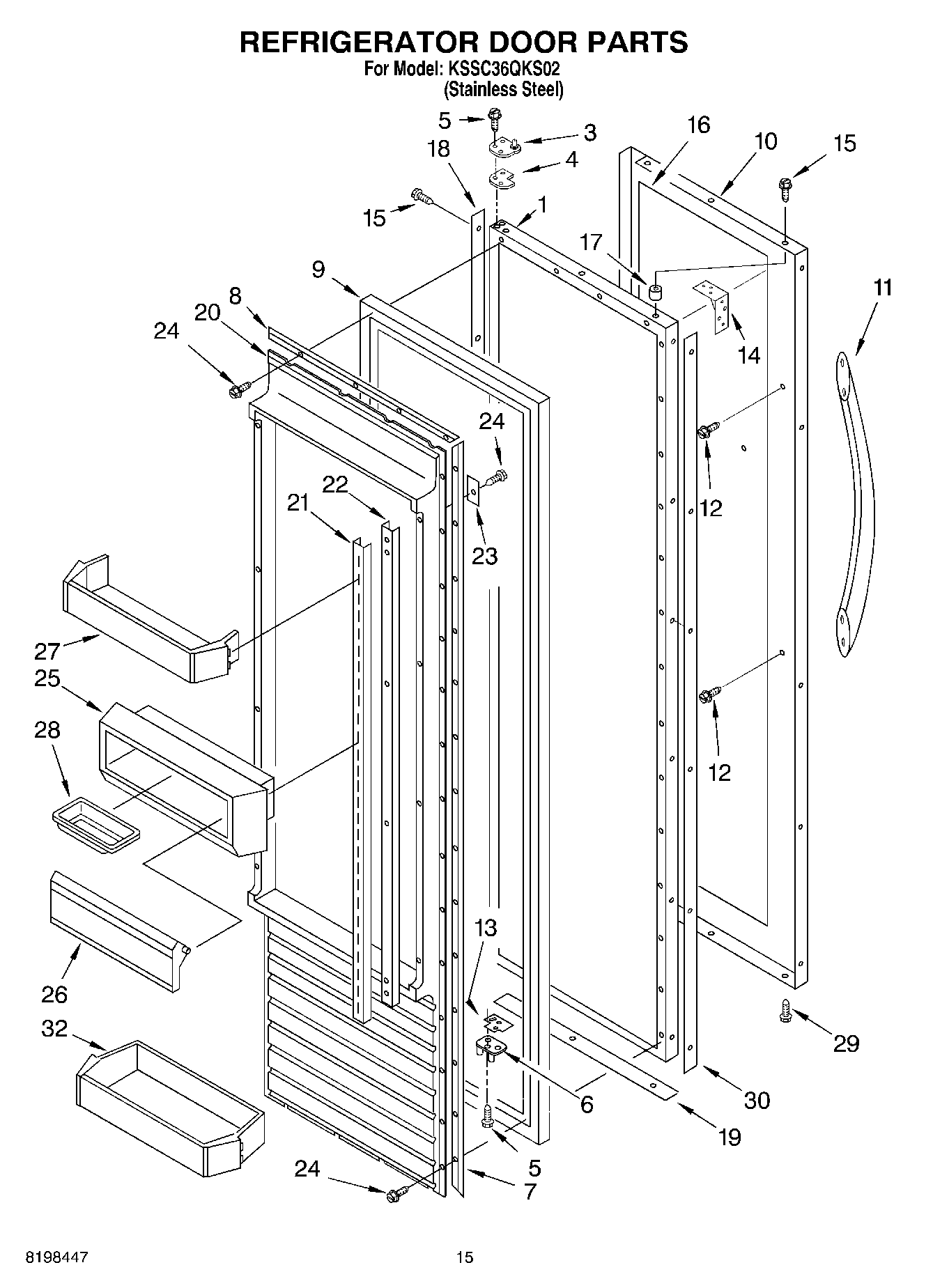

KSSC36QKS02 10 – REFRIGERATOR DOOR PARTSadmin2025-04-26T12:07:46+00:00KSSC36QKS02 10 – REFRIGERATOR DOOR PARTS
Products
| Position | Product |
|---|
| 1 | Refrigerator Door Panel (Includes Insulation) |
| 3 | W11724512 Whirlpool Door Hinge |
| 4 | Spacer-Hinge, Top |
| 5 | W11474472 Whirlpool Screw |
| 6 | 2302878 Whirlpool Refrigerator Door Hinge |
| 7 | Gasket Retainer, Side (2) |
| 8 | Gasket Retainer, Top & Bottom |
| 9 | Door Gasket, Magnetic |
| 10 | Door Skin (Stainless Steel) |
| 11 | Handle, Door (Stainless Steel) |
| 12 | WP308544 Whirlpool Screw |
| 13 | Door Spacer, Bottom |
| 14 | BRACE, DOOR CORNER |
| 15 | WP8281250 Whirlpool Refrigerator Screw |
| 16 | Filler, Door |
| 17 | 2005433 Whirlpool Refrigerator Spacer |
| 18 | Spacer, Hinge Side |
| 19 | WP2257333 Whirlpool Spacer |
| 20 | Panel, Interior Door |
| 21 | Ladder, Shelf (2) |
| 22 | Retainer, Shelf Ladder (2) |
| 23 | Back Up Plate (8) |
| 24 | W11624204 Whirlpool Screw |
| 25 | Bin, Utility |
| 26 | Door, Utility Bin |
| 27 | Door Shelf (3) |
| 28 | Butter Tray |
| 29 | W10759522 Whirlpool Screw |
| 30 | Spacer, Handle Side |
| 32 | Shelf, Gallon Door |
