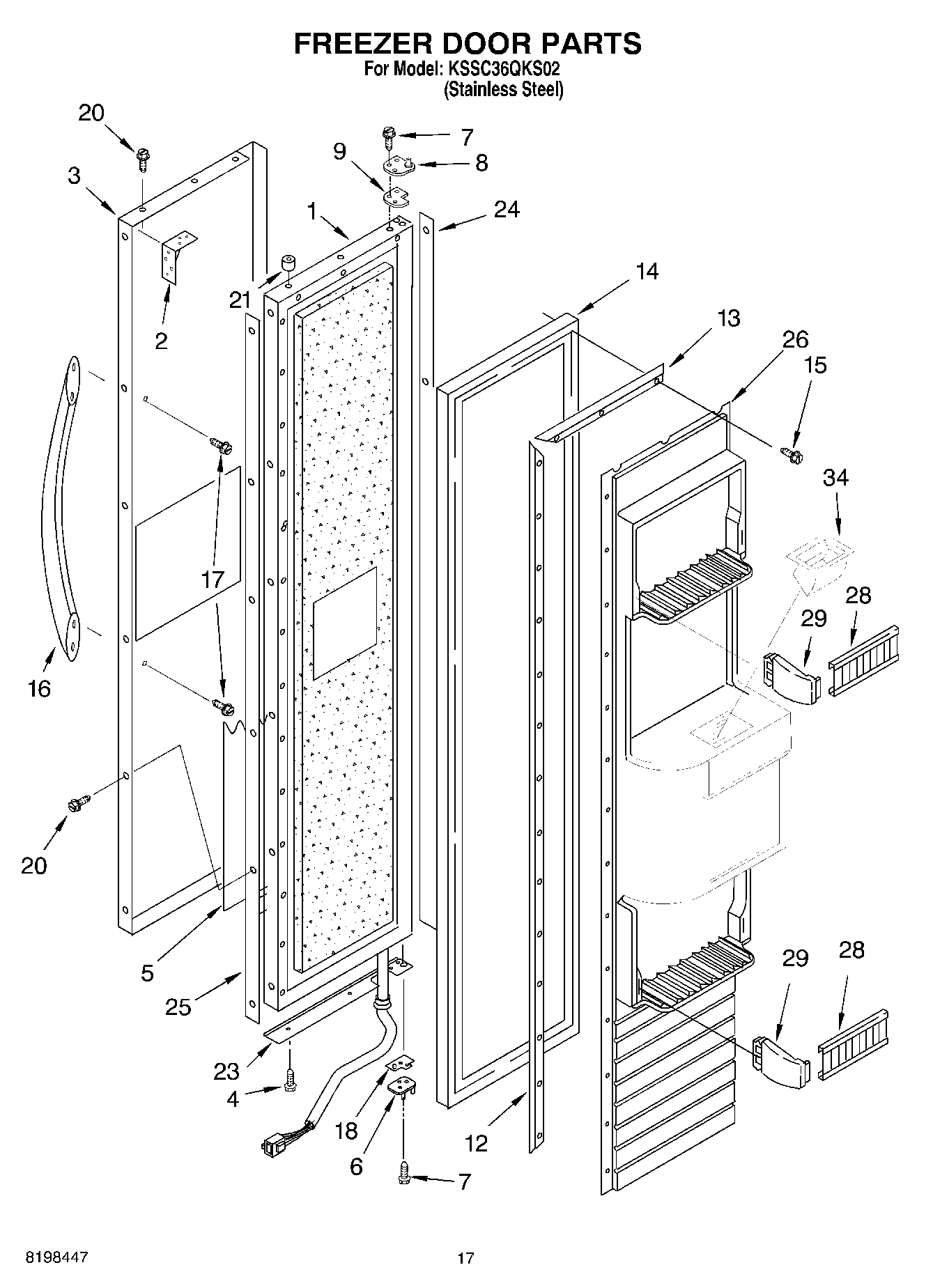

KSSC36QKS02 11 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door Panel (Includes Insulation)
2	BRACE, DOOR CORNER
3	Door Skin
4	Screw
5	Filler, Door
6	HINGE-DOOR
7	W11474472 Whirlpool Screw
8	W11724512 Whirlpool Door Hinge
9	Spacer-Hinge, Top
12	Gasket Retainer, Side (2)
13	Gasket Retainer, Top & Bottom
14	Door Gasket, Magnetic
15	W11624204 Whirlpool Screw
16	Handle, Door (Stainless Steel)
17	WP308544 Whirlpool Screw
18	SPACER, DOOR SKIN BOTTOM
20	WP8281250 Whirlpool Refrigerator Screw
21	2005433 Whirlpool Refrigerator Spacer
23	Door Spacer, Bottom
24	Spacer, Hinge Side
25	Spacer, Handle Side
26	Panel, Interior Door
28	Foot, Front (Black-Right)
29	Trim, End Cap (Right Side)
29	Trim, Endcap (Left Side)
34	Ice Chute
