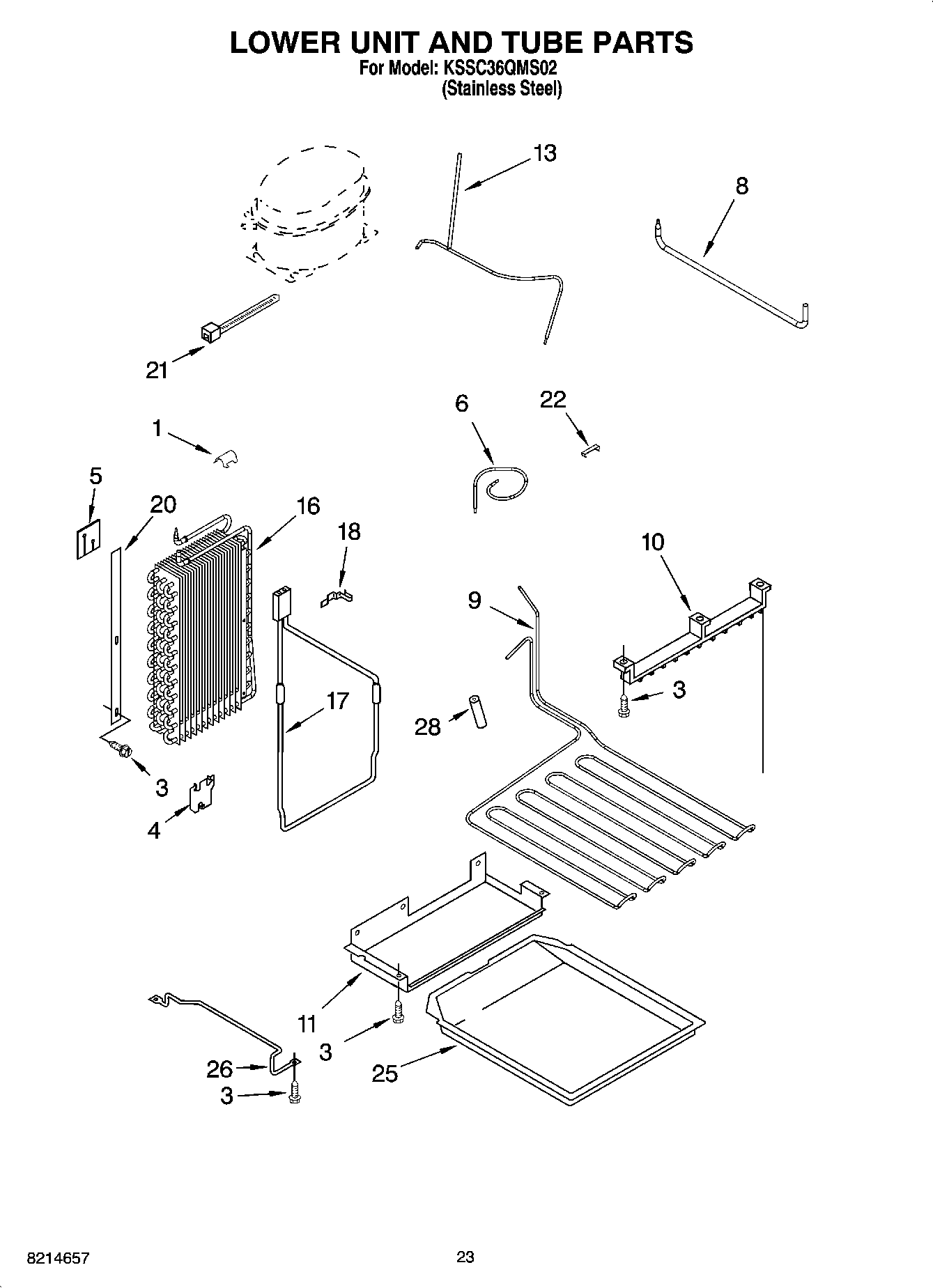

KSSC36QMS02 14 – LOWER UNIT AND TUBE PARTS

KSSC36QMS02 14 – LOWER UNIT AND TUBE PARTS

Written by

in

KSSC36QMS02 14 – LOWER UNIT AND TUBE PARTS

Products

PositionProduct
19791833 Whirlpool Refrigerator Clip
3W11624204 Whirlpool Screw
4Bracket
5Side Support
6Suction Tube
8Tube, Transition (Drier/Restrictor)
9Heater, Drain Pan
10Hanger, Heater
11Shield, Drain Pan
13Tube, Discharge
16WP2306092 Whirlpool Refrigerator Evaporator
17Heater, Defrost
181113048 Whirlpool Refrigerator Clamp
20Gasket, Evaporator
21WPW10339879 Whirlpool Wire Tie
22W10169509 Whirlpool Refrigerator Clip
25WP2001264 Whirlpool Refrigerator Drip Pan
26Bracket, Drain Pan (Right)
26Bracket, Drain Pan (Left)
282215648 Whirlpool Refrigerator Dampener
