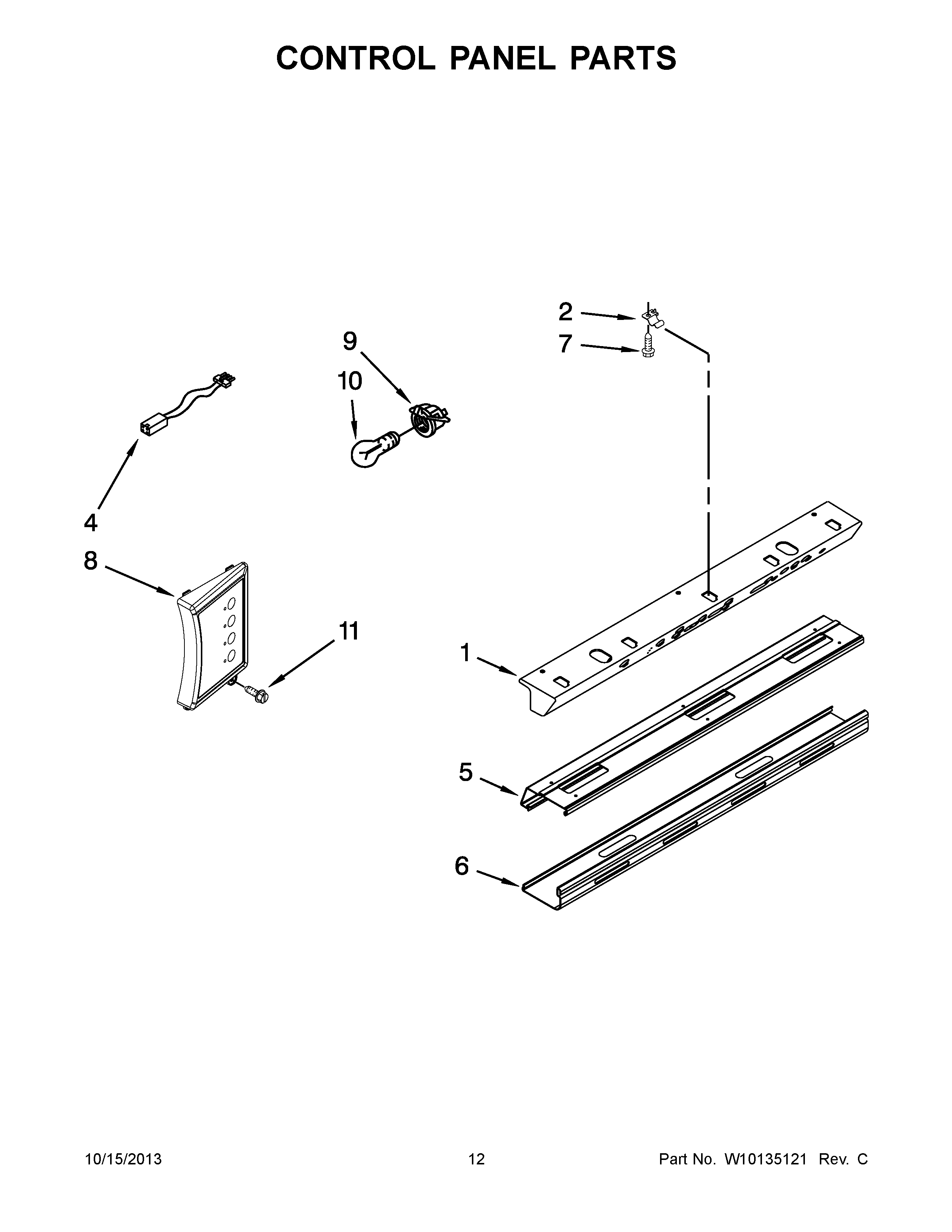

KSSC36QTS00 07 – CONTROL PANEL PARTS

Products

Position	Product
1	W10468939 Whirlpool Refrigerator Control Box
2	Clip, Control Box
4	2310390 Whirlpool Refrigerator Wire Assembly
5	Bracket, Control Box
6	Shield, Light
7	WP488729 Whirlpool Refrigerator Door Screw
8	WP2306086 Whirlpool Refrigerator Electronic Control Board
9	WPW10191429 Whirlpool Refrigerator Socket
10	WPA3073101 Whirlpool Light Bulb
11	WPW10142283 Whirlpool Refrigerator Screw
