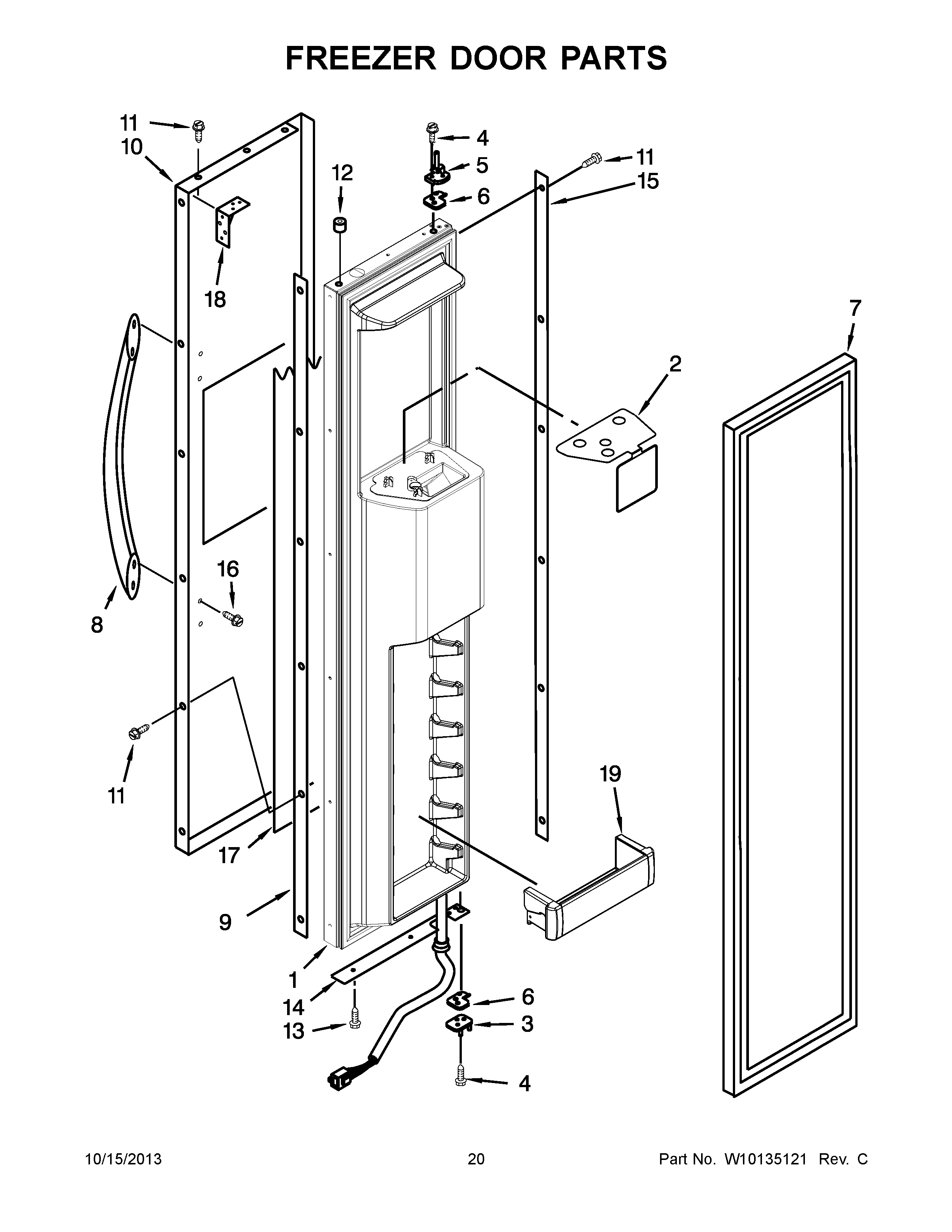

KSSC36QTS00 11 – FREEZER DOOR PARTS

KSSC36QTS00 11 – FREEZER DOOR PARTS

Written by

in

KSSC36QTS00 11 – FREEZER DOOR PARTS

Products

PositionProduct
1FREEZER DOOR
2Safety Barrier
3HINGE-DOOR
4W11474472 Whirlpool Screw
5W11724512 Whirlpool Door Hinge
6W11673500 Whirlpool Door Hinge
7W11624976 Whirlpool Refrigerator FIP Gasket
8WP2316868 Whirlpool Refrigerator Handle
9Spacer, Door (Handle Side)
10Skin, Door (Stainless Steel)
11WP8281250 Whirlpool Refrigerator Screw
122005433 Whirlpool Refrigerator Spacer
13W10759522 Whirlpool Screw
14SPACER, DOOR SKIN BOTTOM
15Spacer, Hinge Side
16WP308544 Whirlpool Screw
17Filler, Door (Top)
17Filler, Door (Bottom)
18BRACE, DOOR CORNER
19W10323601 Whirlpool Refrigerator Cantilever Bin
