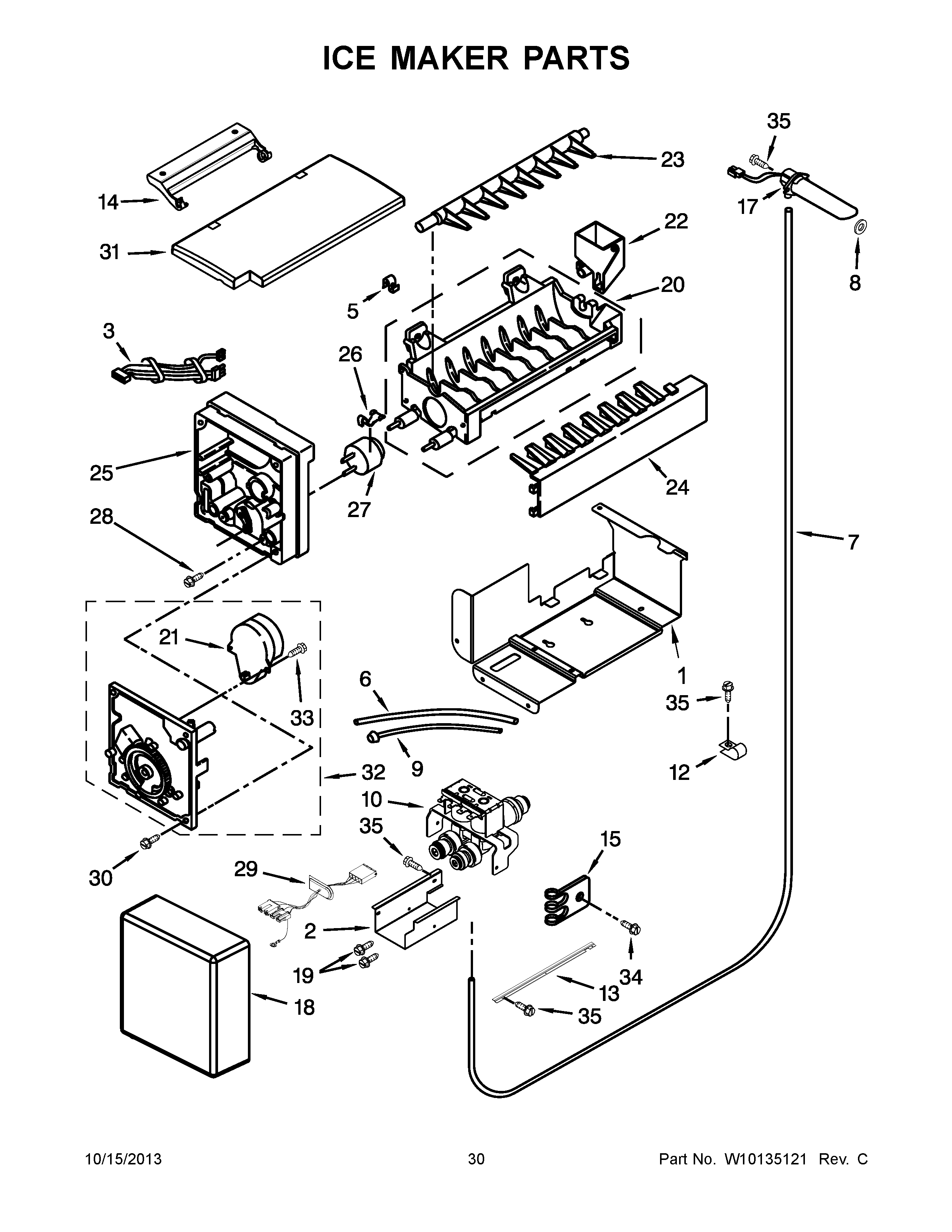

KSSC36QTS00 16 – ICE MAKER PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	Cleaner, Stainless Steel
NI	W10129081 Whirlpool Refrigerator Handle
NI	ASSEMBLY, ICE CONTAINER
1	2300167 Whirlpool Bracket
2	Shield, Valve
3	2310192 Whirlpool Refrigerator Wire Harness
5	WP628379 Whirlpool Refrigerator Clip
6	Tube, Filter Inlet
7	Water Tube
8	Seal Gasket
9	W11533506 Whirlpool Refrigerator Water Tube
10	WPW10159843 Whirlpool Refrigerator Inlet Valve
12	W10833902 Whirlpool Refrigerator Clamp
13	Support, Valve
14	WP2198641 Whirlpool Refrigerator Ice Maker Cover Bracket
15	WP488366 Whirlpool Refrigerator Clamp
17	W10460127 Whirlpool Refrigerator Inlet Tube
18	Cover
19	WP489128 Whirlpool Refrigerator Screw
20	WPW10122550 Whirlpool Refrigerator Ice Mold
22	WP628356 Whirlpool Refrigerator Fill Cup
23	626753 Whirlpool Refrigerator Ejector Arm
24	W10297245 Whirlpool Refrigerator Arm Stripper
25	WP2195914 Whirlpool Refrigerator Ice Maker Housing
26	WP2315522 Whirlpool Refrigerator Clip
27	WP627985 Whirlpool Icemaker Cycling Thermostat
28	8533917 Whirlpool Refrigerator Screw
29	W10279391 Whirlpool Refrigerator Wire Harness
30	WP681249 Whirlpool Screw Assembly
31	W10504752 Whirlpool Refrigerator Ice Door
32	W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
33	489136 Whirlpool Refrigerator Screw
34	WP489464 Whirlpool Refrigerator Screw
35	W11624204 Whirlpool Screw
100	WPW10277449 Whirlpool Refrigerator Ice Maker
