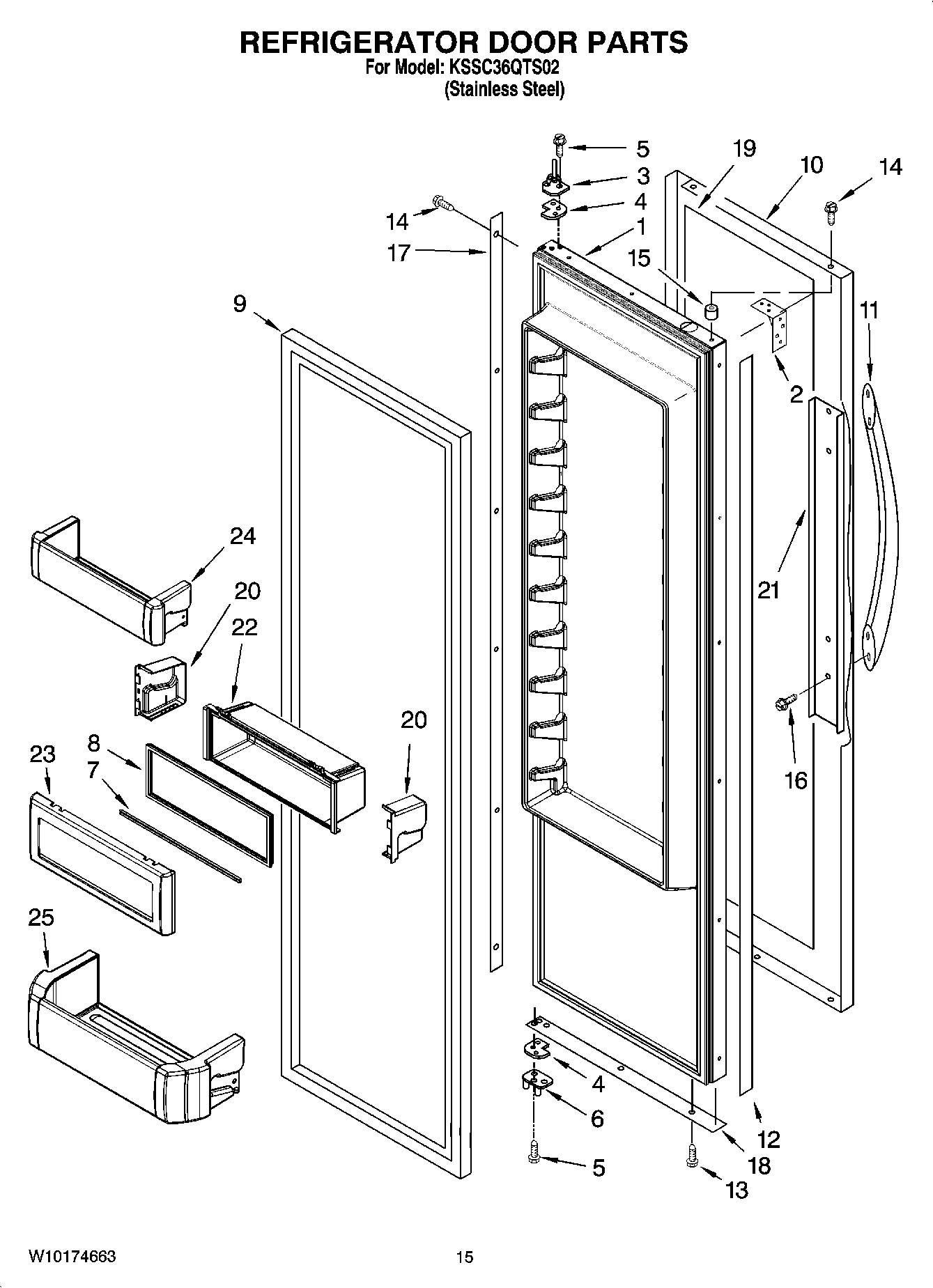

KSSC36QTS02 10 – REFRIGERATOR DOOR PARTS

KSSC36QTS02 10 – REFRIGERATOR DOOR PARTS

Written by

in

KSSC36QTS02 10 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1LW10193489 Whirlpool Refrigerator Black Foam In Place Door
2BRACE, DOOR CORNER
3W11724512 Whirlpool Door Hinge
4W11673500 Whirlpool Door Hinge
5W11474472 Whirlpool Screw
62302878 Whirlpool Refrigerator Door Hinge
72222795 Whirlpool Refrigerator Rail
8WP2222981 Whirlpool Refrigerator Gasket
9WP2266901 Whirlpool Door Gasket
10Skin, Door
11WP2316868 Whirlpool Refrigerator Handle
12Spacer, Door (Handle Side)
13W10759522 Whirlpool Screw
14WP8281250 Whirlpool Refrigerator Screw
152005433 Whirlpool Refrigerator Spacer
16WP308544 Whirlpool Screw
17Spacer, Hinge Side
18WP2257333 Whirlpool Spacer
19Filler, Door
20WPW10323173 Whirlpool Refrigerator Retainer End Cap
20WPW10323172 Whirlpool Refrigerator Retainer End Cap
21W10127710 Whirlpool Refrigerator Plate
22WPW10323035 Whirlpool Refrigerator Cantilever Bin
23WPW10131132 Whirlpool Refrigerator Door Compressor
24W10323598 Whirlpool Refrigerator Cantilever Bin
25W10323746 Whirlpool Refrigerator Cantilever Bin
