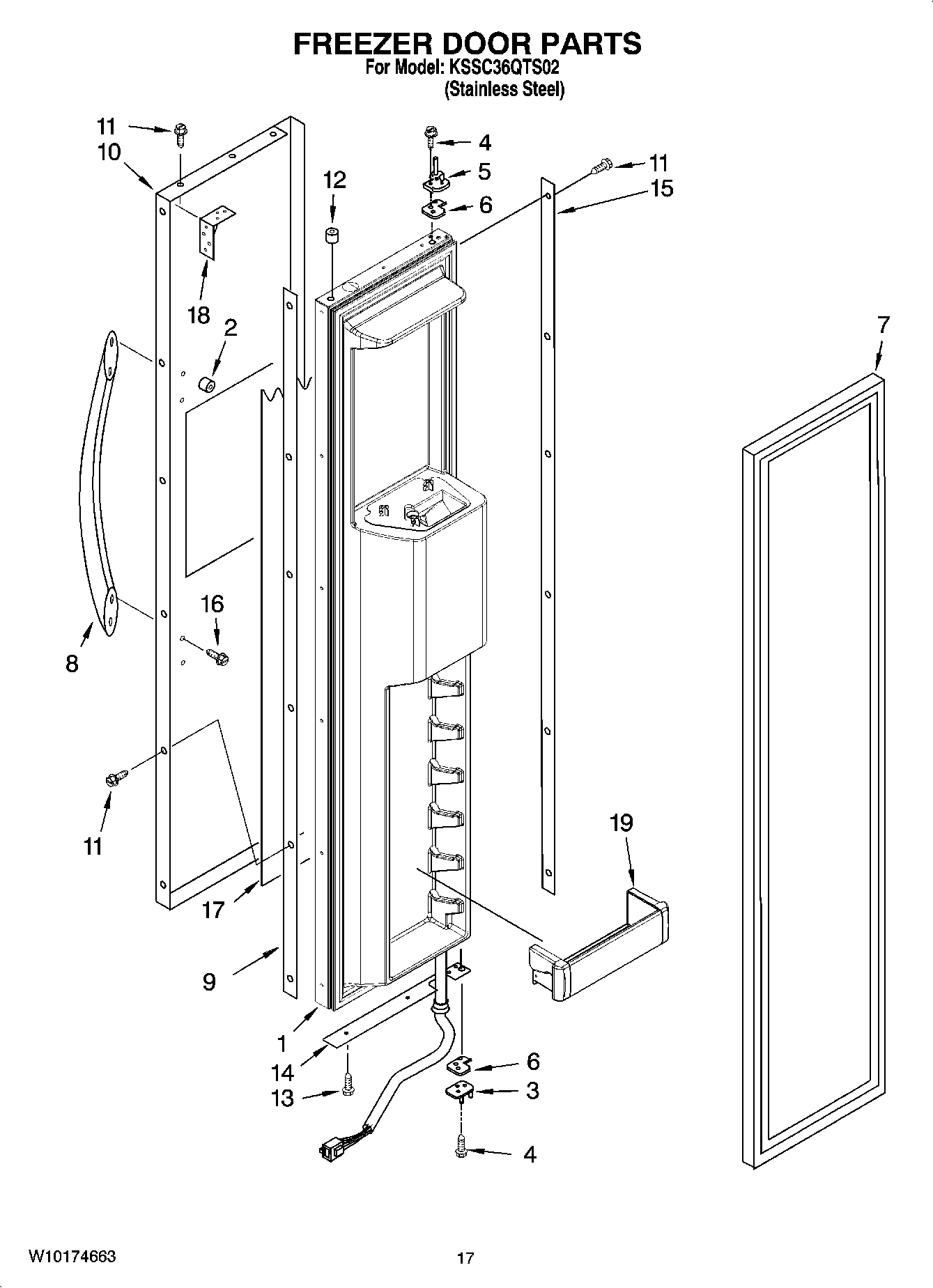

KSSC36QTS02 11 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door (Includes 8)
2	2252354 Whirlpool Spacer Assembly
3	HINGE-DOOR
4	W11474472 Whirlpool Screw
5	W11724512 Whirlpool Door Hinge
6	W11673500 Whirlpool Door Hinge
7	W11624976 Whirlpool Refrigerator FIP Gasket
8	WP2316868 Whirlpool Refrigerator Handle
9	Spacer, Door (Handle Side)
10	Skin, Door (Stainless Steel)
11	WP8281250 Whirlpool Refrigerator Screw
12	2005433 Whirlpool Refrigerator Spacer
13	W10759522 Whirlpool Screw
14	SPACER, DOOR SKIN BOTTOM
15	Spacer, Hinge Side
16	WP308544 Whirlpool Screw
17	Filler, Door (Top)
17	Filler, Door (Bottom)
18	BRACE, DOOR CORNER
19	W10323601 Whirlpool Refrigerator Cantilever Bin
