KSSC36QTS04 14 – LOWER UNIT AND TUBE PARTS

KSSC36QTS04 14 – LOWER UNIT AND TUBE PARTS

Written by

in

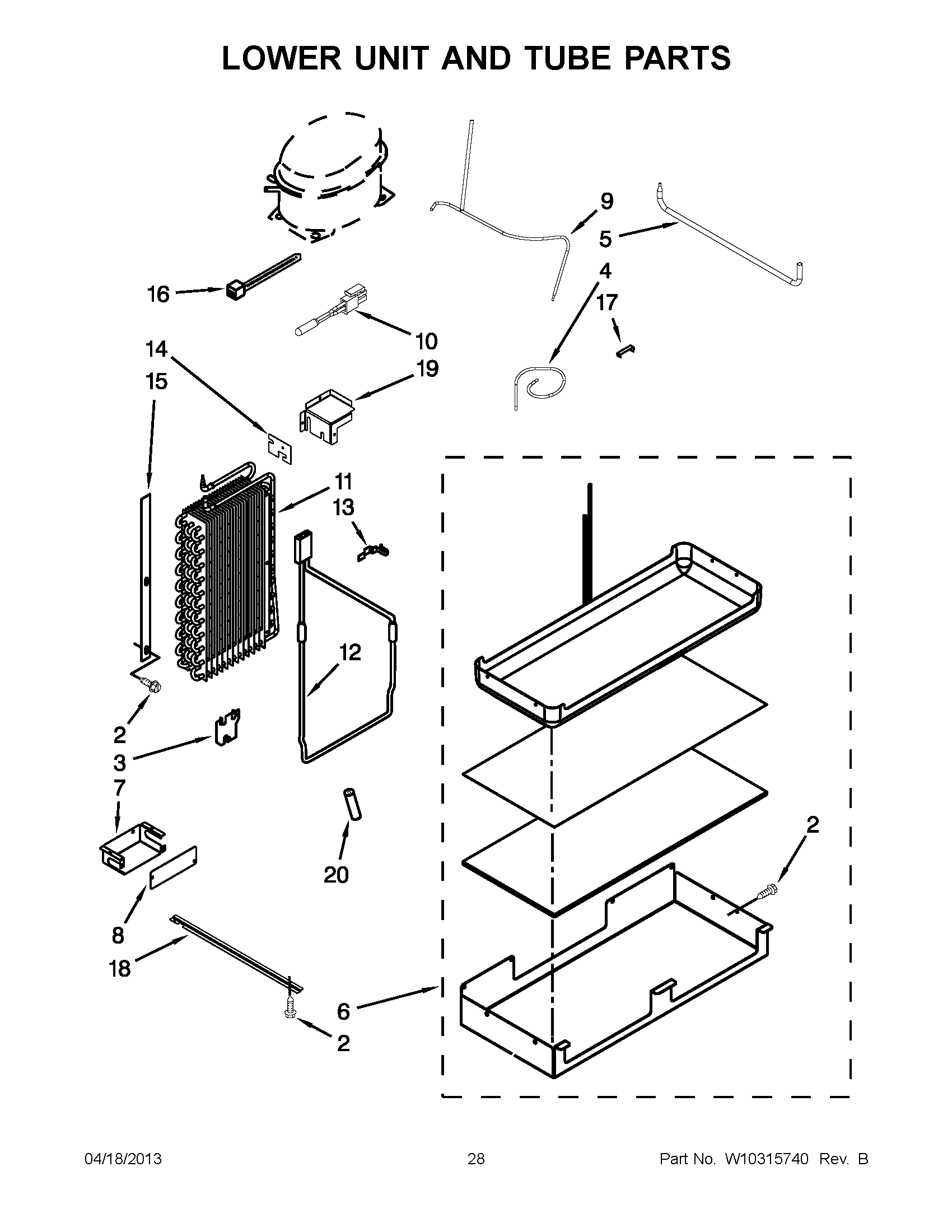

KSSC36QTS04 14 – LOWER UNIT AND TUBE PARTS

Products

PositionProduct
2W11624204 Whirlpool Screw
3W10157752 Whirlpool Bracket
4Tube, Suction
5W10388653 Whirlpool Refrigerator Tube
6W10890886 Whirlpool Refrigerator Heater Assembly
7Cover, Wiring
8Cover, Wiring
9Tube, Discharge
10WP2188820 Whirlpool Refrigerator Thermistor
11Evaporator
12W10140160 Whirlpool Refrigerator Heater
131113048 Whirlpool Refrigerator Clamp
14W10139908 Whirlpool Seal
15Gasket, Evaporator
16WPW10339879 Whirlpool Wire Tie
17W10169509 Whirlpool Refrigerator Clip
182320554 Whirlpool Bracket
19Bracket Assembly, Return Air
202215648 Whirlpool Refrigerator Dampener
