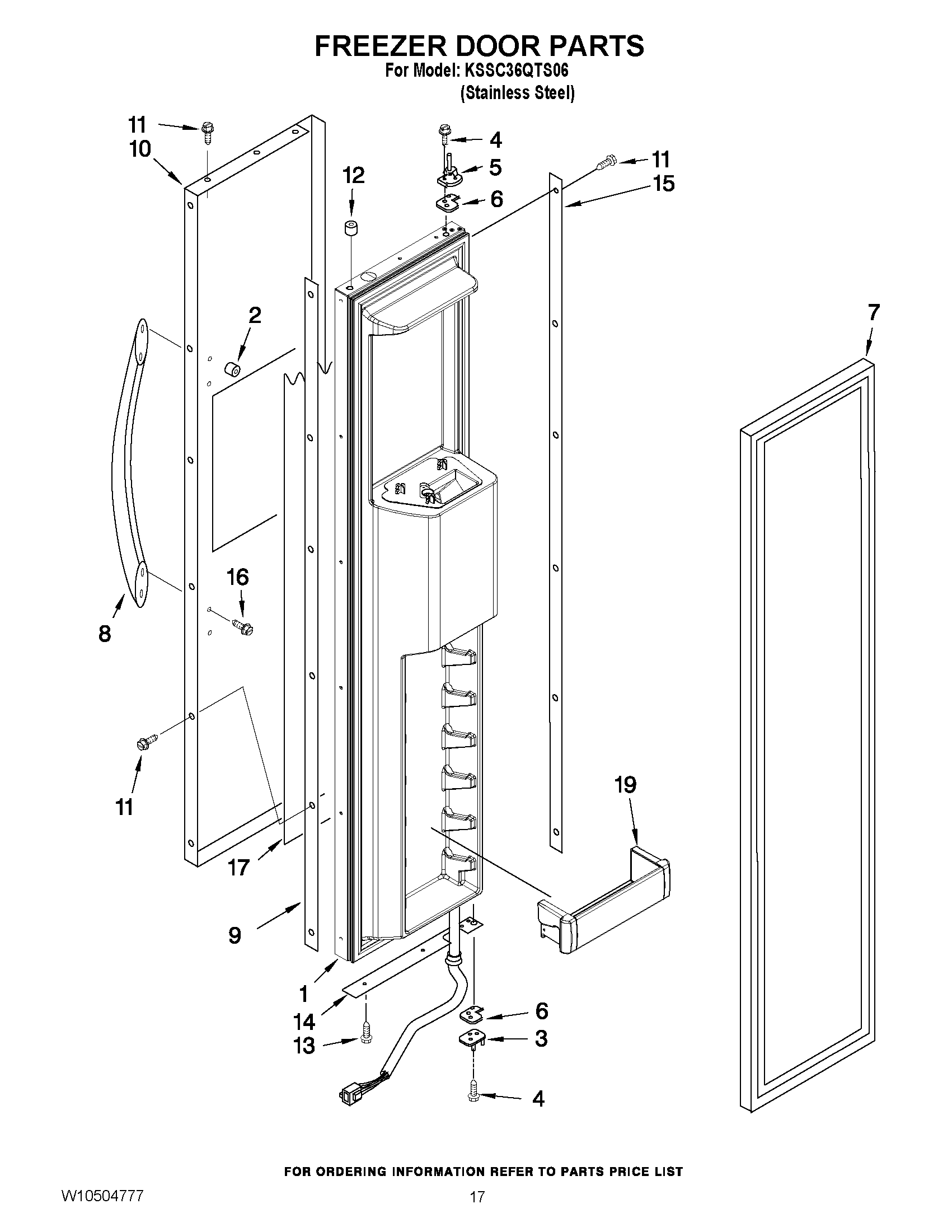

KSSC36QTS06 11 – FREEZER DOOR PARTS

Products

Position	Product
1	FREEZER DOOR (INCLUDES No.7)
2	2252354 Whirlpool Spacer Assembly
3	HINGE-DOOR
4	W11474472 Whirlpool Screw
5	W11724512 Whirlpool Door Hinge
6	W11673500 Whirlpool Door Hinge
7	W11624976 Whirlpool Refrigerator FIP Gasket
8	WP2316868 Whirlpool Refrigerator Handle
9	Spacer, Door (Handle Side)
10	Skin, Door (Stainless Steel)
11	WP8281250 Whirlpool Refrigerator Screw
12	2005433 Whirlpool Refrigerator Spacer
13	W10759522 Whirlpool Screw
14	SPACER, DOOR SKIN BOTTOM
15	SPACER, DOOR-SKIN (HINGE SIDE)
16	WP308544 Whirlpool Screw
17	Filler, Door (Bottom)
17	Filler, Door (Top)
19	W10323601 Whirlpool Refrigerator Cantilever Bin
